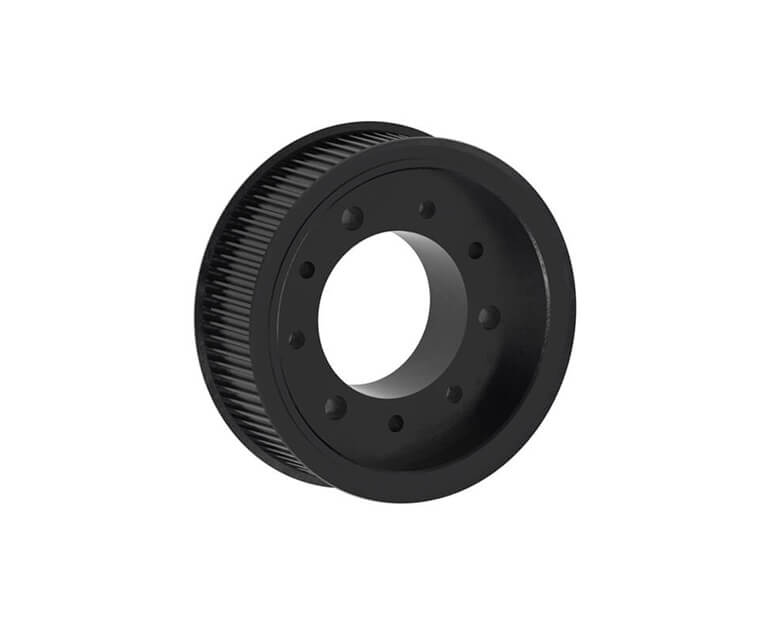

| Item | Transmission Chain Sprocket |
| Belt Width | 60mm |
| Bore Type | Quick Disconnect Bushing |
| Bushing | E |
| Dimension E | 0.09" |
| Dimension L | 2.63" |
| Dimension M | 0.05" |
| Face Width | 2.76" |
| Hub Length | 1.63" |
| Hub Location | 1" |
| Inertia Wr | 1.3 lbs.-sq. ft. |
| Inside Dia. | 6.9" |
| Material | Cast Iron |
| Max. Rpm | 3140 RPM |
| Number Of Teeth | 80 |
| Outside Dia. | 7.97" |
| Pitch | 180-036 |
| Pitch Dia. | 8.02" |
| Rpm High | 3,140 rpm |
| Weight | 18.5 Lbs. |
| Ship weight (kg) | 8.325 |
| Product | Model | Belt Width | Bore Type | Dimension E | Dimension M | Face Width | Hub Dia. | Hub Length | Hub Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W228M12 | 12mm | Finished with No Keyway | 0.63" | 0" | 0.83" | - | - | 1.63" | €173.04 | |
 |
W228M22 | 22mm | Finished with No Keyway | 0.63" | 0" | 1.22" | - | - | 1.63" | €205.92 | |
 |
W228M60 | 60mm | Finished with No Keyway | 0.63" | 0" | 2.76" | - | - | 1.63" | €259.28 | |
 |
W248M12 | 12mm | Quick Disconnect Bushing | 0.3" | 0.47" | 0.83" | - | 0.56" | - | €155.96 | |
 |
W248M22 | 22mm | Quick Disconnect Bushing | 0.69" | 0.47" | 1.22" | - | 0.56" | - | €221.30 | |
|
W248M60 | 60mm | Finished with No Keyway | 0.63" | 0" | 2.76" | - | - | 1.81" | €287.01 | |
|
W268M12 | 12mm | Quick Disconnect Bushing | 0.3" | 0.47" | 0.83" | - | 0.56" | - | €157.70 |
