TRITAN D40BS30 X 1 1/2 Roller Chain Sprocket, 1 1/2 Inch Bore Dia, 30 Teeth, Steel | CU6YQC 55WE54

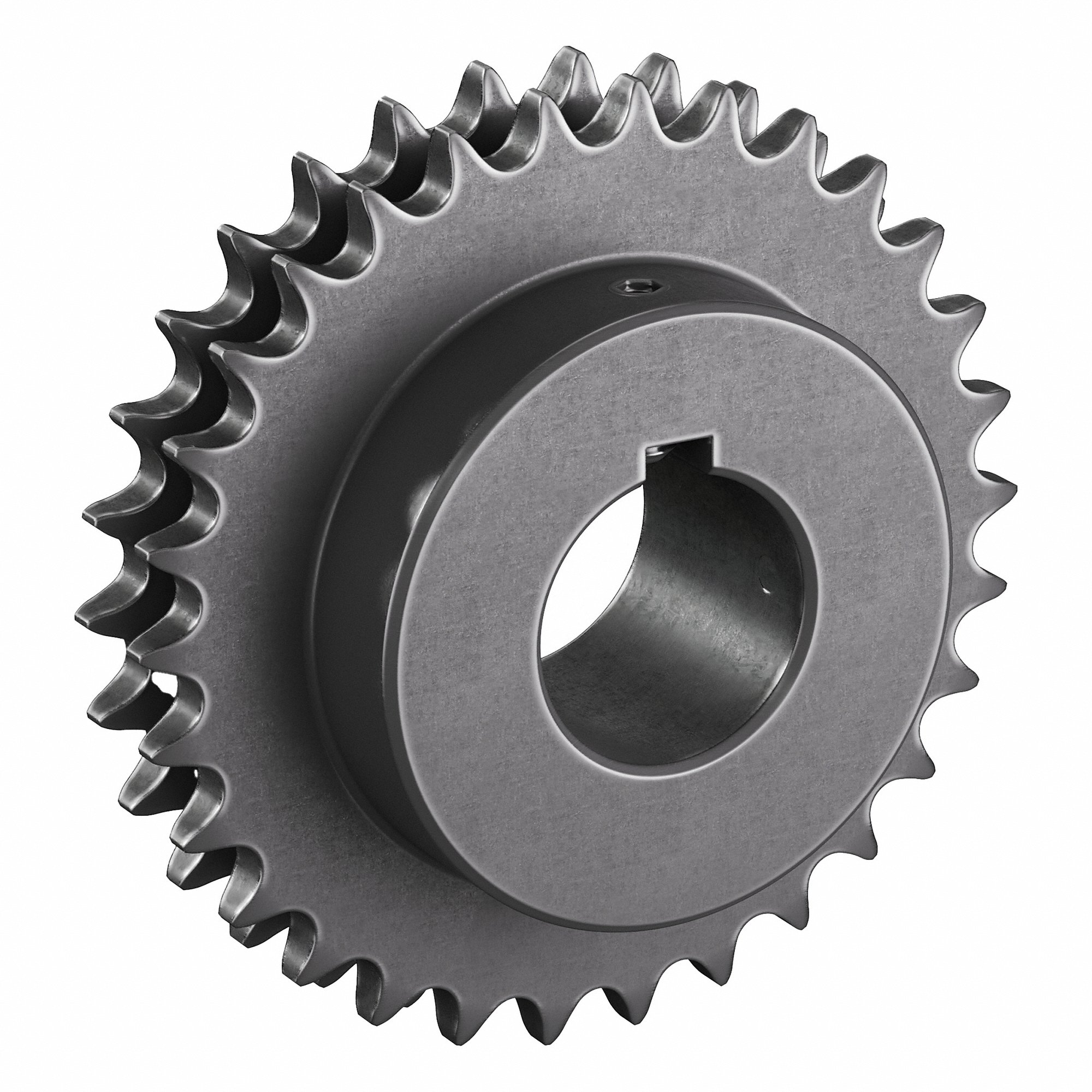

TRITAN D40BS30 X 1 1/2 Roller Chain Sprocket, 1 1/2 Inch Bore Dia, 30 Teeth, Steel

Item: CU6YQC Model: D40BS30 X 1 1/2Cross Ref: 55WE54
In Stock

Get it by Tuesday, Nov 12

Flat Shipping at € + TVA € flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€104.83 /unit
Add To Cart
Request a Quote

Payment Options Available

Product Specifications:

Bore Dia.1 1/2"
Bore TypeFixed
FinishBlack Oxide
For Chain Number40-2
For Chain Pitch1/2"
For Number Of Strands2
Hub Dia.3 1/4"
Hub Projection0.784"
Hub TypeOne Side
IncludesSet Screws
KeywayYes
Keyway Width3/8"
Length Through Bore1 5/8"
MaterialSteel
Maximum Bore Dia.1 1/2"
Number Of Teeth30
Outside Dia.5.06"
Pitch Dia.4.783"
Set Screw LocationSetscrews Are Placed Over The Keyway And At 90 Degrees To The Keyway
Set Screw Size3/8"
Teeth Heat TreatmentNot Hardened
Tooth Width0.275"
Width Across Tooth Sets0.841"

Shipping Info:

Ship weight (kg) 2.403
Country of OriginCN
