| 55% Thread Drill Size | 3.5 mm |
| 65% Thread Drill Size | 3.4 mm |
| 75% Thread Drill Size | 3.3 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 3.3 mm |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Helix Angle | 45° |
| Number Of Flutes | 3 |
| Overall Length | 63 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Shank Dia. | 4.5 mm |
| Shank Length | 48.2 mm |
| Shank Type | Straight |
| Spiral Direction | Right Hand |
| Square Size | 3.4 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Bottoming |
| Tap Finish | Titanium Halogen Nitride Coated |
| Tap Material | High Speed Steel |
| Tap Shank Standard | Din 371 |

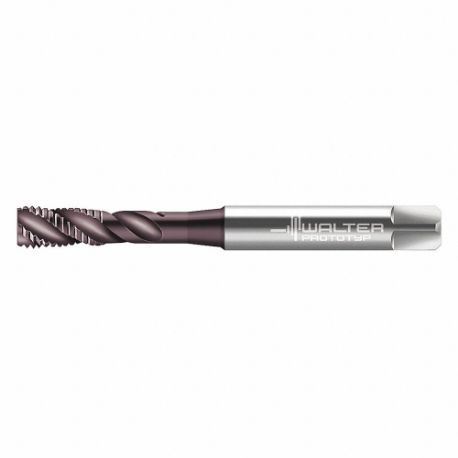

| Tap Style | Spiral Flute |
| Tap Thread Size | M4 x 0.7 |
| Thread Direction | Right Hand |
| Thread Length | 7 mm |
| Thread Limit | 6HX |
| Thread Limit / Class Of Fit | 6HX |
| Thread Pitch | 0.7 mm |
| Thread Standard | Metric Coarse |
| Ship weight (kg) | 0.004 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.3 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Product | Model | Price | |
|---|---|---|---|
 |
23400-UNF0 | €103.69 | |
|
23410-UNF0 | €95.83 | |
 |
AS2251005-UNC10 | €66.13 | |
 |
EP2251302-UNC10 | €78.38 | |
 |
22410-UNC10 | €56.73 | |
 |
AEP2251302-UNC10 | €78.06 | |
 |
TC115-UNC10-C0-WY80AA | €29.49 |
