| Accuracy | -1% to +1% |
| Accuracy Grade | Asme B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Temp. Range | -4°F to +150°F |
| Application | Compressors, Hydraulics, Oil And Gas Industry, Outdoor, Process Conditions, Process Industries, Pumps, Severe Ambient Conditions, Vibration Measurement |
| Bezel Gasket Material | Buna N |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Bayonet Ring |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Color | Gray |
| Case Construction | Welded Joint |
| Case Depth | 1.95" |
| Case Dia. | 3.964" |
| Case Grade | Grade 304 |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Oil |
| Dial Color | White |
| Dial Face Color | Multiple |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Gauge Accuracy Grade | Grade 1A |
| Gauge Case Liquid | Glycerin |
| Gauge Wetted Parts | Stainless Steel |
| Glow In The Dark | Yes |
| Glow-in-the-dark | Yes |
| Includes | Restrictor Screw |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | Ip66, Nema 4X |
| Liquid-filled Case | Yes |
| Mfr. Series | Pfp |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 4" |
| Non-sparking | No |
| Over-pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |

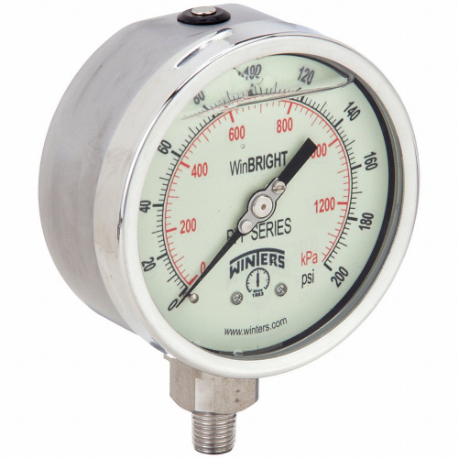

| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 200 psi |
| Pressure Range Type | Pressure |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | Npt |
| Process Temperature Range | -40°F to +250°F |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 1400 kPa |
| Secondary Scale Units | Kpa |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Socket Grade | Grade 316L |
| Socket Material | Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
PFP1054-DRY | Compound Gauge | €198.43 | |
 |
PFP1079-DRY | Compound Gauge | €198.43 | |
 |
PFP1021WBY | Compound Gauge | €208.23 | |
 |
PFP1021WBYG | Compound Gauge | €208.23 | |
|
PFP1037WBY | Compound Gauge | €299.59 | |
|
PFP1037WBYG | Compound Gauge | €299.59 | |
|
PFP1052WBYG | Compound Gauge | €508.40 |
