Ball Transfer Tables

Filter

VESTIL -

POPUP Series Pop-Up Ball Transfer Platforms

StyleModelCapacityHeightLengthWidthPrice (ex. VAT)

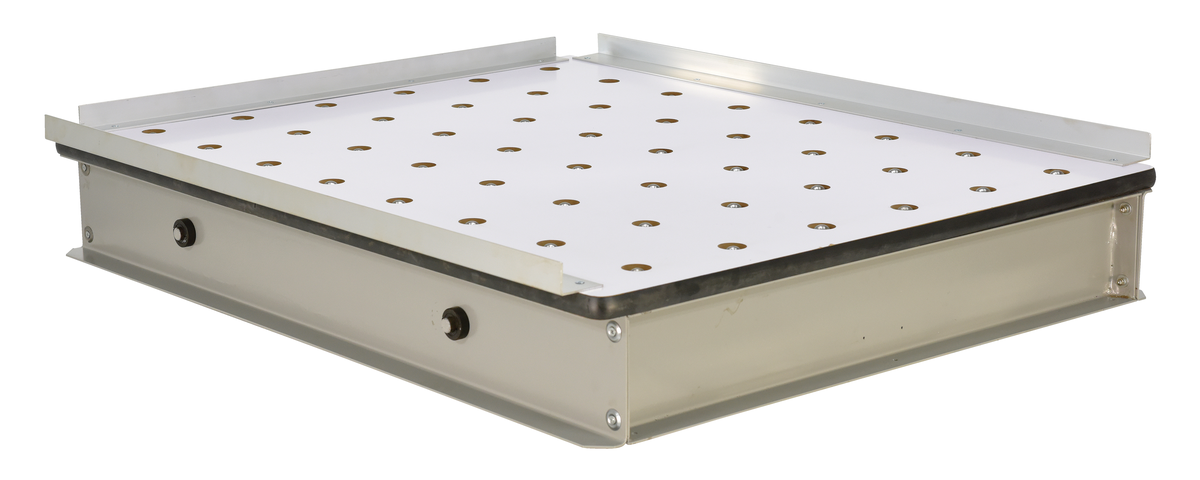

APOPUP-4048250 lbs.8.75"48"40"€1,231.62

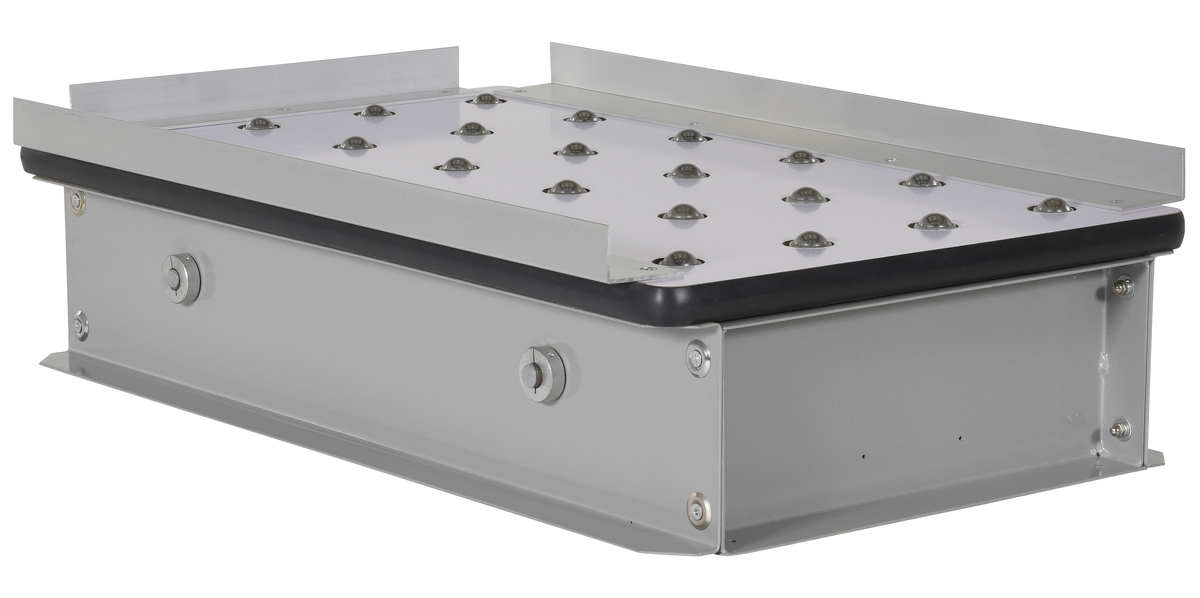

BPOPUP-1932500 lbs.8.5"32"19"€677.18
ASHLAND CONVEYOR -

Threaded Ball Transfer Units

StyleModelBall MaterialDiameterDimension ADimension BDimension CHeightHousing MaterialLengthPrice (ex. VAT)
ABT S 1/4-20 1DIA 75 SS/SSCarbon Steel-1-3/8"1-3/4"-1.375"Stainless Steel1.75"€52.23
ABT S 5/16-18 1DIA 75 CS/CSCarbon Steel1 3/4"1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€7.24
BBT S 3/8-16 1.5DIA 250 CS/CSCarbon Steel3 1/4"2-5/16"3-1/4"-2 5/16"Zinc Plated Steel3.25"€39.40
CBT S 1/4-20 1DIA 75 CS/CSCarbon Steel-1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€5.76
DBT S 5/16-18 1DIA 200 CS/CSCarbon Steel-1-1/4"1-3/8"9/32"1.25"Zinc Plated Steel1 43/64"€30.59
DBT S 1/4-20 .63DIA 33 CS/CSCarbon Steel-13/16"15/16"5/32"13/16"Zinc Plated Steel1.187"€10.48
EBT S 5/16-18 1DIA 150 CS/CSCarbon Steel1-15/64---1.437Black Oxide Steel-€16.10
FBT S 1/4-20 1DIA 150 CS/CSCarbon Steel1-15/64---1.437Black Oxide Steel-€15.66
GBT S 3/8-16 1.5DIA 250 CS/CSCCarbon Steel3 1/4"2-17/32"3-1/4"-2 5/16"Zinc Plated Steel3.25"€48.95
HBT S 5/16-18 1DIA 35 NYL/CSNylon1 3/4"1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€17.19
IBT S 3/8-16 1.5DIA 125 NYL/SSNylon3 1/4"2-5/16"3-1/4"-2 5/16"Stainless Steel-€78.84
IBT S 3/8-16 1.5DIA 125 NYL/CSNylon3 1/4"2-5/16"3-1/4"-2 5/16"Zinc Plated Steel-€62.14
HBT S 1/4-20 1DIA 35 NYL/CSNylon-1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€17.84
HBT S 5/16-18 1DIA 35 NYL/SSNylon1 3/4"1-3/8"1-3/4"-1.375"Stainless Steel1.75"€48.66
HBT S 1/4-20 1DIA 35 NYL/SSNylon1 3/4"1-3/8"1-3/4"-1.375"Stainless Steel1.75"€53.49
JBT S 1/4-20 .63DIA 17 NYL/CSNylon1 3/16"13/16"15/16"5/32"13/16"Zinc Plated Steel1.187"€19.14
JBT S 5/16-18 1DIA 100 NYL/CSNylon1 43/64"1-1/4"1-3/8"9/32"1.25"Zinc Plated Steel1 43/64"€39.25
BBT S 3/8-16 1.5DIA 250 SS/CSStainless Steel3 1/4"2-5/16"3-1/4"-2 5/16"Zinc Plated Steel-€84.85
ABT S 5/16-18 1DIA 75 SS/CSStainless Steel1 3/4"1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€25.84
ABT S 5/16-18 1DIA 75 SS/SSStainless Steel1 3/4"1-3/8"1-3/4"-1.375"Stainless Steel1.75"€53.41
ASHLAND CONVEYOR -

Drop In Ball Transfer Units

StyleModelBall MaterialDimension ADimension BDimension CHeightLengthWidthWorking Load LimitPrice (ex. VAT)
ABT DI .63DIA 33 CS/CSCarbon Steel13/16"15/16"3/8"13/16"1.187"1.187"33 lb.€10.69
ABT DI 1DIA 200 CS/CSCarbon Steel1-1/4"1-3/8"5/8"1.25"1 43/64"1 43/64"200 Lbs.€26.32
BBT DI 1.19DIA 500 CS/CSCarbon Steel1-7/16"1-3/4"17/32"1.437"2"2"500 Lbs.€38.14
BBT DI 1.19DIA 500 SS/CSStainless Steel1-7/16"1-3/4"17/32"1.437"2"2"500 Lbs.€66.31
ASHLAND CONVEYOR -

Flange Ball Transfer Units

StyleModelBall MaterialDimension ADimension BHeightHousing MaterialLengthMounting StyleWidthPrice (ex. VAT)
ABT FRD 4H 1.25DIA 225 CS/CSCarbon Steel--1.75Black Oxide Steel-5/32"-€29.99
BBT F 4H 1.5DIA 250 CS/CSCarbon Steel1-13/16"2-19/32"1 13/16"Zinc Plated Steel3"9/32"3"€30.75
CBT FRD 4H 1.13DIA 180 CS/CSCarbon Steel--1.593Black Oxide Steel-5/32"-€23.82
DBT FRT 2H 1DIA 135 CS/CSCarbon Steel--1-9/32Black Oxide Steel2.437"5/32"-€20.11
EBT FRT 2H .69DIA 90 CS/CSCarbon Steel--1Black Oxide Steel2.437"5/32"-€19.19
FBT FRD 4H 1DIA 135 CS/CSCarbon Steel--1.5Black Oxide Steel-5/32"-€17.59
GBT F 4H 1.5DIA 250 CS/CSCCarbon Steel2-1/32"2-19/32"1 13/16"Zinc Plated Steel3"9/32"3"€39.54
HBT F 2H 1DIA 75 CS/CSCarbon Steel1-3/16"2-3/16"1.187"Zinc Plated Steel2.75"7/32"2"€5.39
IBT F 4H 1.5DIA 125 NYL/SSNylon1-13/16"2-19/32"1 13/16"Stainless Steel3"9/32"3"€103.56
IBT F 4H 1.5DIA 125 NYL/CSNylon1-13/16"2-19/32"1 13/16"Zinc Plated Steel3"9/32"3"€46.07
JBT F 2H 1DIA 35 NYL/SSNylon1-3/16"2-3/16"1.187"Stainless Steel2.75"7/32"2"€55.87
JBT F 2H 1DIA 35 NYL/CSNylon1-3/16"2-3/16"1.187"Zinc Plated Steel2.75"7/32"2"€14.02
HBT F 2H 1DIA 75 SS/SSStainless Steel1-3/16"2-3/16"1 13/16"Stainless Steel2"7/32"2.75"€43.88
BBT F 4H 1.5DIA 250 SS/SSStainless Steel1-13/16"2-19/32"1 13/16"Stainless Steel3"9/32"3"€108.26
BBT F 4H 1.5DIA 250 SS/CSStainless Steel1-13/16"2-19/32"1 13/16"Zinc Plated Steel3"9/32"3"€61.97
GBT F 4H 1.5DIA 250 SS/SSCStainless Steel2-1/32"2-19/32"1 13/16"Stainless Steel3"9/32"3"€132.18
HBT F 2H 1DIA 75 SS/CSStainless Steel1-3/16"2-3/16"1.187"Zinc Plated Steel2.75"7/32"2"€21.28
ASHLAND CONVEYOR -

Flange/Threaded Stud Ball Transfer Units

StyleModelHeightWorking Load LimitPrice (ex. VAT)
ABT FS 3/8-16 1DIA 150 CS/CS1.5150€23.60
BBT FS 3/8-16 1.25DIA 250 CS/CS1.75250€55.69
CBT FS 3/8-16 1.13DIA 200 CS/CS1.593200 Lbs.€31.88
StyleModelBall MaterialWorking Load LimitPrice (ex. VAT)
ABT P 1.5DIA 125 NYL/CSNylon125 Lb.€67.61
ABT P 1.5DIA 250 SS/CSStainless Steel250 lb.€98.16
ABT P 1.5DIA 250 CS/CSZinc Plated Steel250 lb.€61.46
ASHLAND CONVEYOR -

Conveyor Ball Transfer Tables

StyleModelBetween Frame (in.)LengthWorking Load LimitPrice (ex. VAT)
ABTIT1001041012"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€179.78
ABTIT1001031012"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€219.81
ABTIT1002031024"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€390.67
ABTIT1002041024"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€323.29
ABTIT1301031312"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€262.55
ABTIT1301041312"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€372.96
ABTIT1302041324"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€398.15
ABTIT1302031324"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€494.17
ABTIT2203042236"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€895.46
ABTIT2204032248"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,503.69
ABTIT2202032224"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€825.73
ABTIT2204042248"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,146.41
ABTIT2202042224"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€560.76
ABTIT2203032236"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,219.28
ABTIT2704042748"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,215.35
ABTIT2703042736"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€869.88
ABTIT2703032736"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,159.33
ABTIT2704032748"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,529.14
ABTIT3604033648"120 lb./ft. on 10 ft. Support Centers, 500 lb./ft. on 5 ft. Support Centers€2,072.85
ABTIT3604043648"120 lb./ft. on 10 ft. Support Centers, 500 lb./ft. on 5 ft. Support Centers€1,400.28
ASHLAND CONVEYOR -

Conveyor Drop-in Plates

StyleModelBetween Frame (in.)Price (ex. VAT)
ABTI10310€106.06
ABTI13313€123.10
ABTI16316€161.35
ABTI22322€202.70
ABTI27327€216.96
ABTI36336€352.65
ASHLAND CONVEYOR -

Countersunk Flange Ball Transfer Units

StyleModelBall MaterialDiameterDimension ADimension BDimension CDimension DHeightHousing MaterialPrice (ex. VAT)
ABT LPCS 2H 1DIA 75 CS/CSCarbon Steel-5/8"1-7/32"1-3/4"19/32"1 7/32"Zinc Plated Steel€9.32
BBT CFRD 3H .69DIA 90 CS/CSCarbon Steel1-5/16----15/16Black Oxide Steel€19.88
CBT CFRD 3H 1.13DIA 180 CS/CSCarbon Steel1-13/16----1.375Black Oxide Steel€24.16
DBT CFRD 3H 1.25DIA 225 CS/CSCarbon Steel2----1.5Black Oxide Steel€29.94
EBT CFRD 3H 1DIA 135 CS/CSCarbon Steel1-23/32----1.25Black Oxide Steel€20.32
FBT CFRT 4H 1.13DIA 180 CS/CSCarbon Steel-----1.375Black Oxide Steel€28.84
ABT LPCS 2H .63DIA 20 CS/CSCarbon Steel1 11/16"3/8"1-11/16"1-1/4"3/8"3/4"Carbon Steel€7.32
GBT CF 2H 1DIA 75 CS/CSCarbon Steel-3/4"2-3/4"2-3/16"31/64"1 15/64"Zinc Plated Steel€13.63
HBT CFRT 4H .69DIA 90 CS/CSCarbon Steel-----29/32Black Oxide Steel€20.97
IBT CFRT 4H 1DIA 135 CS/CSCarbon Steel-----1.25Black Oxide Steel€21.24
JBT CF 2H 1DIA 35 NYL/CSNylon-3/4"2-3/4"2-3/16"31/64"1 15/64"Zinc Plated Steel€24.31
GBT CF 2H 1DIA 75 SS/SSStainless Steel-3/4"2-3/4"2-3/16"31/64"1 15/64"Stainless Steel€56.94
GBT CF 2H 1DIA 75 SS/CSStainless Steel-3/4"2-3/4"2-3/16"31/64"1 15/64"Zinc Plated Steel€30.36
ABT LPCS 2H 1DIA 75 SS/CSStainless Steel-5/8"1-7/32"1-3/4"19/32"1 7/32"Zinc Plated Steel€35.68
VESTIL -

BALL Series Ball Transfer Platforms

StyleModelColorHeightLengthNumber Of BallWidthPrice (ex. VAT)

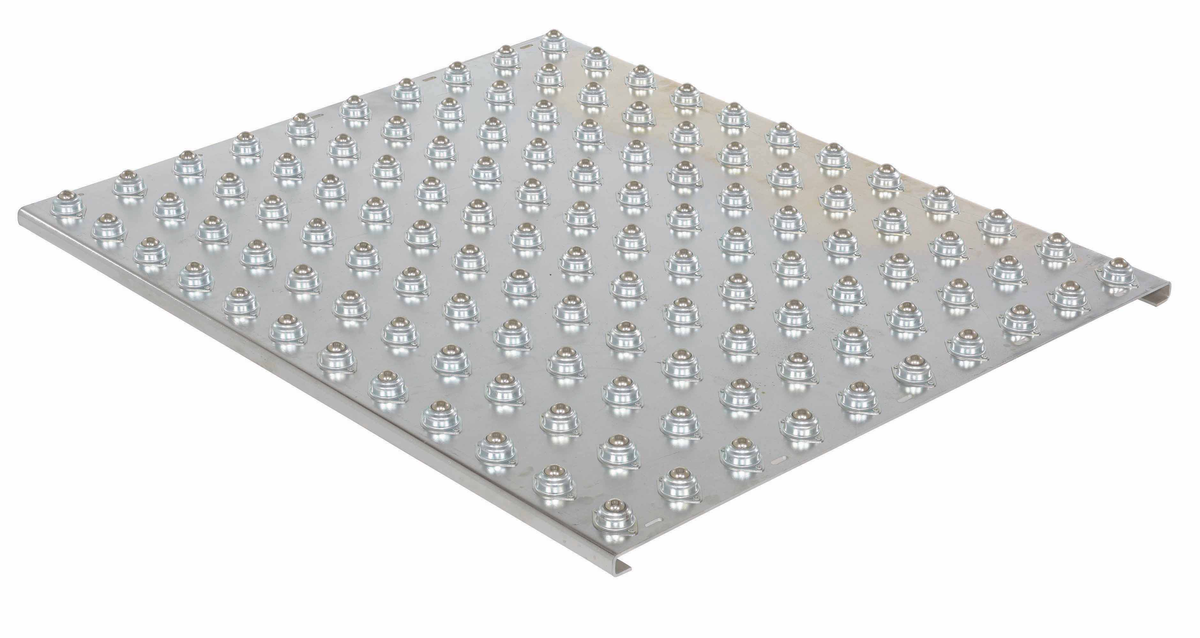

ABALL-4048Blue2.38"48"12040"€1,488.80

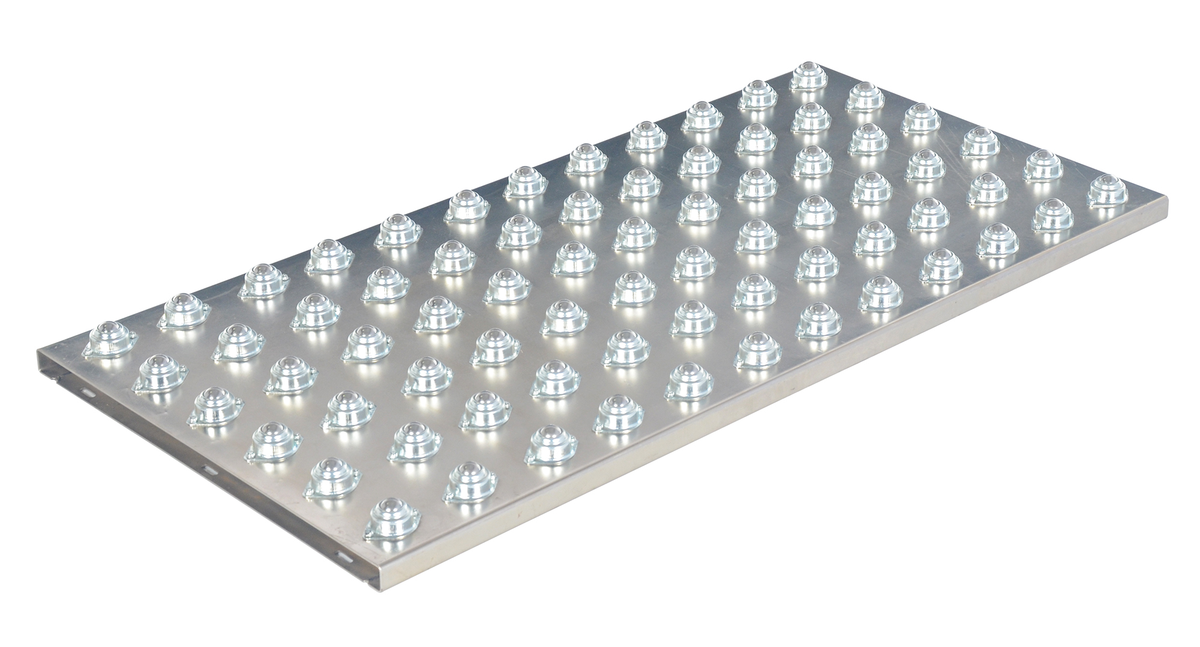

BBALL-2448Silver2.38"48"7224"€1,123.43

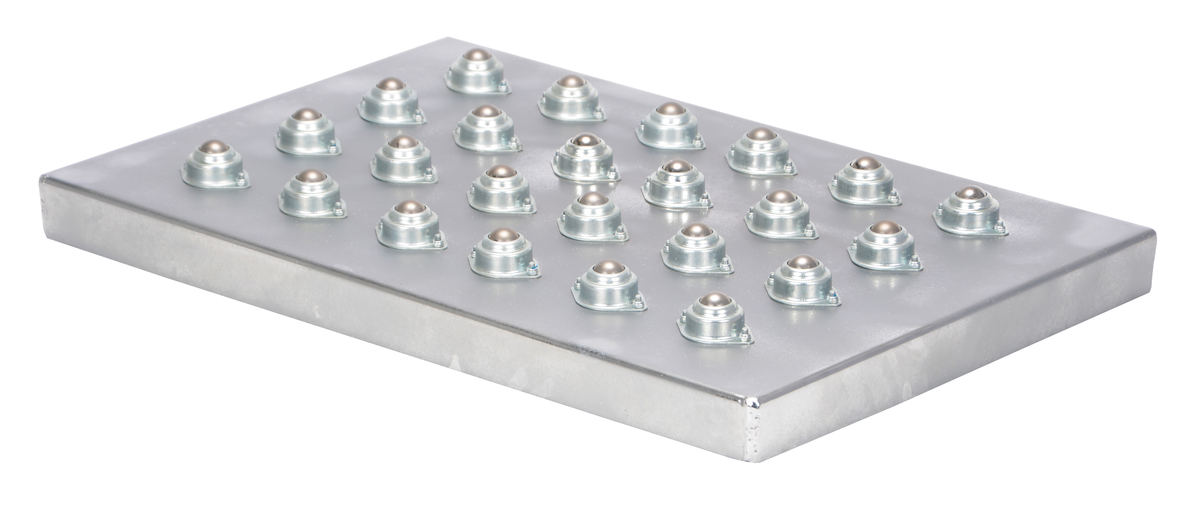

CBALL-1828Silver3.25"28"2418.12"€623.63

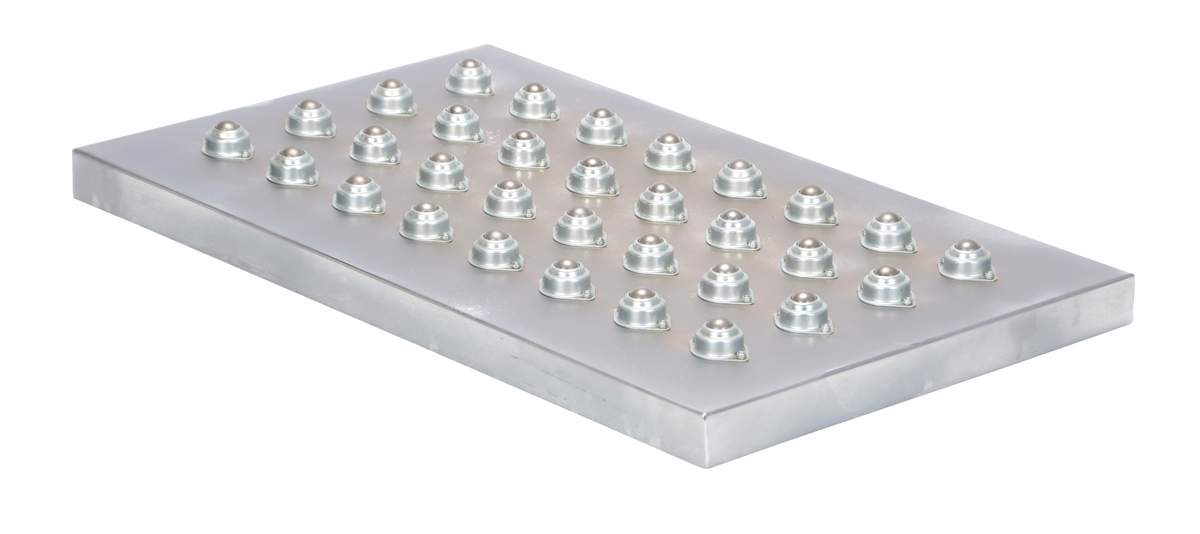

DBALL-2036Silver3.25"36.19"3220.88"-
RFQ

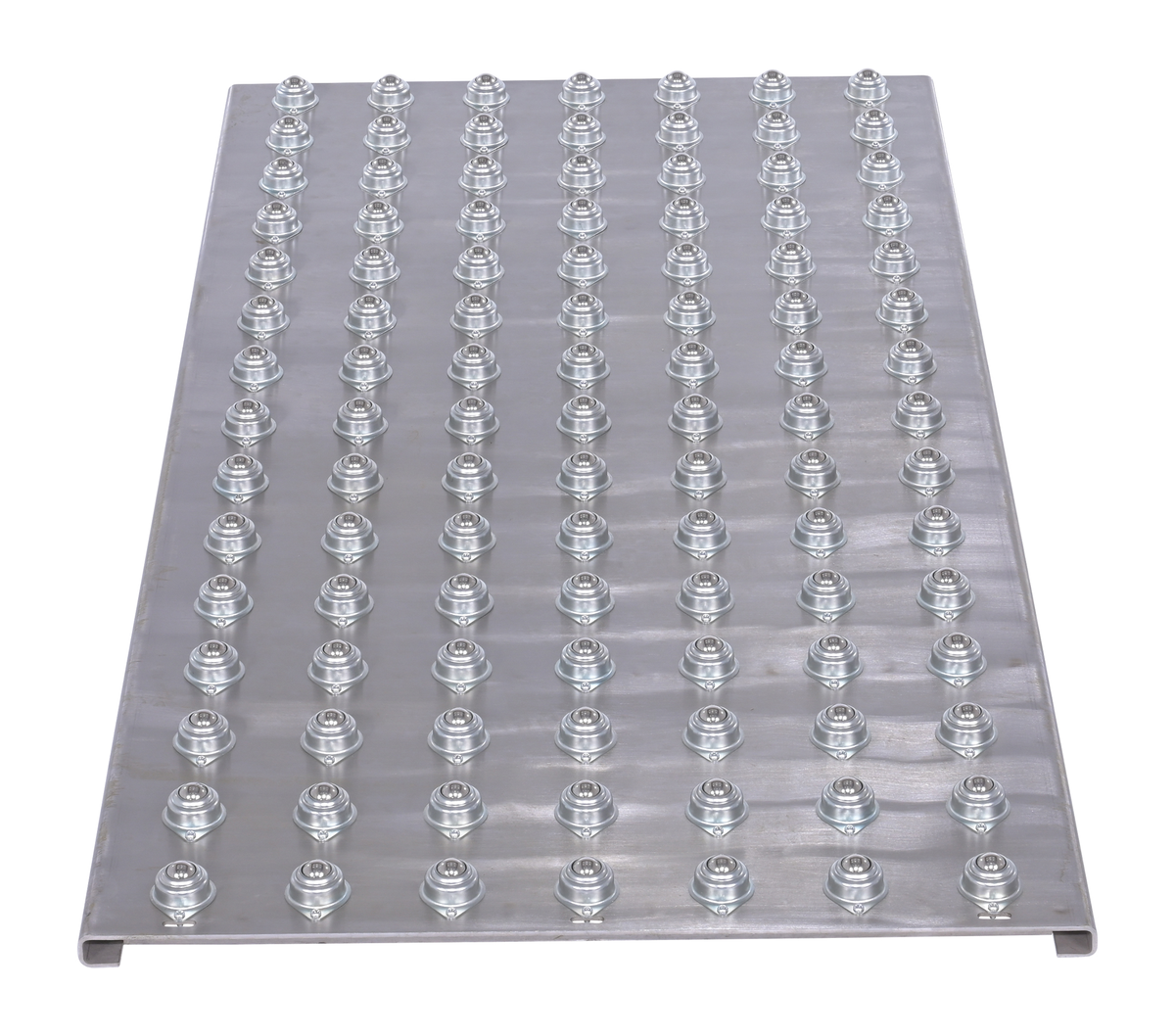

EBALL-3060Silver2.38"60"10530"-
RFQ
VESTIL -

BALL Series Ball Transfer Strips

StyleModelBall SpacingLengthNumber Of BallPrice (ex. VAT)
ABALL-S403 1/4"-13€106.94
BBALL-S603 1/4"60"20€156.30
RFQ
CBALL-S303"30"10€80.79
VESTIL -

Zinc Plated Ball Transfer Strip, 25 x 2 Inch Size

ModelItemPrice (ex. VAT)

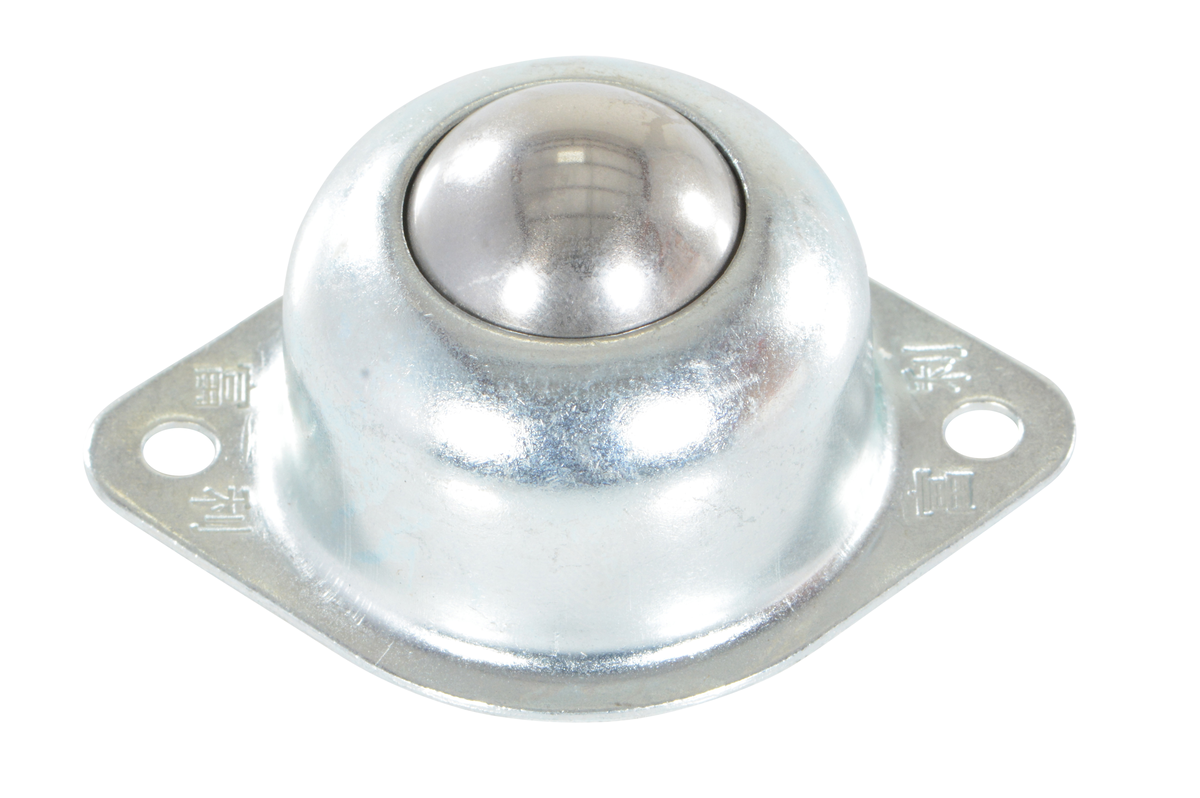

BALL-1FAG7MJE€7.23

Ball Transfer Tables

Ball Transfer Tables use multiple poly or metal balls to provide a frictionless smooth surface and act as a multi-direction conveyor for transporting objects. These precision conveyors can be used either standalone in manual operations or at the intersection of motorised conveyors. Available in various specifications, materials and sizes to suit your needs
