ASHLAND CONVEYOR Ball Transfer Tables

Filter

ASHLAND CONVEYOR -

Drop In Ball Transfer Units

StyleModelBall MaterialDimension ADimension BDimension CHeightLengthWidthWorking Load LimitPrice (ex. VAT)
ABT DI .63DIA 33 CS/CSCarbon Steel13/16"15/16"3/8"13/16"1.187"1.187"33 lb.€10.69
ABT DI 1DIA 200 CS/CSCarbon Steel1-1/4"1-3/8"5/8"1.25"1 43/64"1 43/64"200 Lbs.€26.32
BBT DI 1.19DIA 500 CS/CSCarbon Steel1-7/16"1-3/4"17/32"1.437"2"2"500 Lbs.€38.14
BBT DI 1.19DIA 500 SS/CSStainless Steel1-7/16"1-3/4"17/32"1.437"2"2"500 Lbs.€66.31
ASHLAND CONVEYOR -

Conveyor Ball Transfer Tables

StyleModelBetween Frame (in.)LengthWorking Load LimitPrice (ex. VAT)
ABTIT1001041012"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€179.78
ABTIT1002041024"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€323.29
ABTIT1001031012"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€219.81
ABTIT1002031024"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€390.67
ABTIT1301041312"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€372.96
ABTIT1302031324"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€494.17
ABTIT1302041324"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€398.15
ABTIT1301031312"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€262.55
ABTIT2204032248"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,503.69
ABTIT2202032224"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€825.73
ABTIT2203042236"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€895.46
ABTIT2204042248"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,146.41
ABTIT2203032236"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,219.28
ABTIT2202042224"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€560.76
ABTIT2703032736"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,159.33
ABTIT2704042748"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,215.35
ABTIT2704032748"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€1,529.14
ABTIT2703042736"120 lb./ft. on 10 ft. Support Centers, 600 lb./ft. on 5 ft. Support Centers€869.88
ABTIT3604033648"120 lb./ft. on 10 ft. Support Centers, 500 lb./ft. on 5 ft. Support Centers€2,072.85
ABTIT3604043648"120 lb./ft. on 10 ft. Support Centers, 500 lb./ft. on 5 ft. Support Centers€1,400.28
ASHLAND CONVEYOR -

Conveyor Drop-in Plates

StyleModelBetween Frame (in.)Price (ex. VAT)
ABTI10310€106.06
ABTI13313€123.10
ABTI16316€161.35
ABTI22322€202.70
ABTI27327€216.96
ABTI36336€352.65
StyleModelBall MaterialWorking Load LimitPrice (ex. VAT)
ABT P 1.5DIA 125 NYL/CSNylon125 Lb.€67.61
ABT P 1.5DIA 250 SS/CSStainless Steel250 lb.€98.16
ABT P 1.5DIA 250 CS/CSZinc Plated Steel250 lb.€61.46
ASHLAND CONVEYOR -

Countersunk Flange Ball Transfer Units

StyleModelBall MaterialDiameterDimension ADimension BDimension CDimension DHeightHousing MaterialPrice (ex. VAT)
ABT LPCS 2H 1DIA 75 CS/CSCarbon Steel-5/8"1-7/32"1-3/4"19/32"1 7/32"Zinc Plated Steel€9.32
BBT CFRD 3H 1DIA 135 CS/CSCarbon Steel1-23/32----1.25Black Oxide Steel€20.32
ABT LPCS 2H .63DIA 20 CS/CSCarbon Steel1 11/16"3/8"1-11/16"1-1/4"3/8"3/4"Carbon Steel€7.32
CBT CFRD 3H 1.13DIA 180 CS/CSCarbon Steel1-13/16----1.375Black Oxide Steel€24.16
DBT CFRT 4H 1.13DIA 180 CS/CSCarbon Steel-----1.375Black Oxide Steel€28.84
EBT CFRD 3H 1.25DIA 225 CS/CSCarbon Steel2----1.5Black Oxide Steel€29.94
FBT CFRT 4H 1DIA 135 CS/CSCarbon Steel-----1.25Black Oxide Steel€21.24
GBT CF 2H 1DIA 75 CS/CSCarbon Steel-3/4"2-3/4"2-3/16"31/64"1 15/64"Zinc Plated Steel€13.63
HBT CFRT 4H .69DIA 90 CS/CSCarbon Steel-----29/32Black Oxide Steel€20.97
IBT CFRD 3H .69DIA 90 CS/CSCarbon Steel1-5/16----15/16Black Oxide Steel€19.88
JBT CF 2H 1DIA 35 NYL/CSNylon-3/4"2-3/4"2-3/16"31/64"1 15/64"Zinc Plated Steel€24.31
ABT LPCS 2H 1DIA 75 SS/CSStainless Steel-5/8"1-7/32"1-3/4"19/32"1 7/32"Zinc Plated Steel€35.68
GBT CF 2H 1DIA 75 SS/CSStainless Steel-3/4"2-3/4"2-3/16"31/64"1 15/64"Zinc Plated Steel€30.36
GBT CF 2H 1DIA 75 SS/SSStainless Steel-3/4"2-3/4"2-3/16"31/64"1 15/64"Stainless Steel€56.94
ASHLAND CONVEYOR -

Flange/Threaded Stud Ball Transfer Units

StyleModelHeightWorking Load LimitPrice (ex. VAT)
ABT FS 3/8-16 1DIA 150 CS/CS1.5150€23.60
BBT FS 3/8-16 1.25DIA 250 CS/CS1.75250€55.69
CBT FS 3/8-16 1.13DIA 200 CS/CS1.593200 Lbs.€31.88
ASHLAND CONVEYOR -

Threaded Ball Transfer Units

StyleModelBall MaterialDiameterDimension ADimension BDimension CHeightHousing MaterialLengthPrice (ex. VAT)
ABT S 5/16-18 1DIA 150 CS/CSCarbon Steel1-15/64---1.437Black Oxide Steel-€16.10
BBT S 1/4-20 1DIA 75 SS/SSCarbon Steel-1-3/8"1-3/4"-1.375"Stainless Steel1.75"€52.23
CBT S 1/4-20 1DIA 75 CS/CSCarbon Steel-1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€5.76
DBT S 1/4-20 .63DIA 33 CS/CSCarbon Steel-13/16"15/16"5/32"13/16"Zinc Plated Steel1.187"€10.48
EBT S 3/8-16 1.5DIA 250 CS/CSCarbon Steel3 1/4"2-5/16"3-1/4"-2 5/16"Zinc Plated Steel3.25"€39.40
FBT S 1/4-20 1DIA 150 CS/CSCarbon Steel1-15/64---1.437Black Oxide Steel-€15.66
BBT S 5/16-18 1DIA 75 CS/CSCarbon Steel1 3/4"1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€7.24
DBT S 5/16-18 1DIA 200 CS/CSCarbon Steel-1-1/4"1-3/8"9/32"1.25"Zinc Plated Steel1 43/64"€30.59
GBT S 3/8-16 1.5DIA 250 CS/CSCCarbon Steel3 1/4"2-17/32"3-1/4"-2 5/16"Zinc Plated Steel3.25"€48.95
HBT S 5/16-18 1DIA 35 NYL/SSNylon1 3/4"1-3/8"1-3/4"-1.375"Stainless Steel1.75"€48.66
IBT S 3/8-16 1.5DIA 125 NYL/CSNylon3 1/4"2-5/16"3-1/4"-2 5/16"Zinc Plated Steel-€62.14
JBT S 1/4-20 .63DIA 17 NYL/CSNylon1 3/16"13/16"15/16"5/32"13/16"Zinc Plated Steel1.187"€19.14
HBT S 1/4-20 1DIA 35 NYL/SSNylon1 3/4"1-3/8"1-3/4"-1.375"Stainless Steel1.75"€53.49
HBT S 1/4-20 1DIA 35 NYL/CSNylon-1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€17.84
JBT S 5/16-18 1DIA 100 NYL/CSNylon1 43/64"1-1/4"1-3/8"9/32"1.25"Zinc Plated Steel1 43/64"€39.25
IBT S 3/8-16 1.5DIA 125 NYL/SSNylon3 1/4"2-5/16"3-1/4"-2 5/16"Stainless Steel-€78.84
HBT S 5/16-18 1DIA 35 NYL/CSNylon1 3/4"1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€17.19
BBT S 5/16-18 1DIA 75 SS/SSStainless Steel1 3/4"1-3/8"1-3/4"-1.375"Stainless Steel1.75"€53.41
EBT S 3/8-16 1.5DIA 250 SS/CSStainless Steel3 1/4"2-5/16"3-1/4"-2 5/16"Zinc Plated Steel-€84.85
BBT S 5/16-18 1DIA 75 SS/CSStainless Steel1 3/4"1-3/8"1-3/4"-1.375"Zinc Plated Steel1.75"€25.84
ASHLAND CONVEYOR -

Flange Ball Transfer Units

StyleModelBall MaterialDimension ADimension BHeightHousing MaterialLengthMounting StyleWidthPrice (ex. VAT)

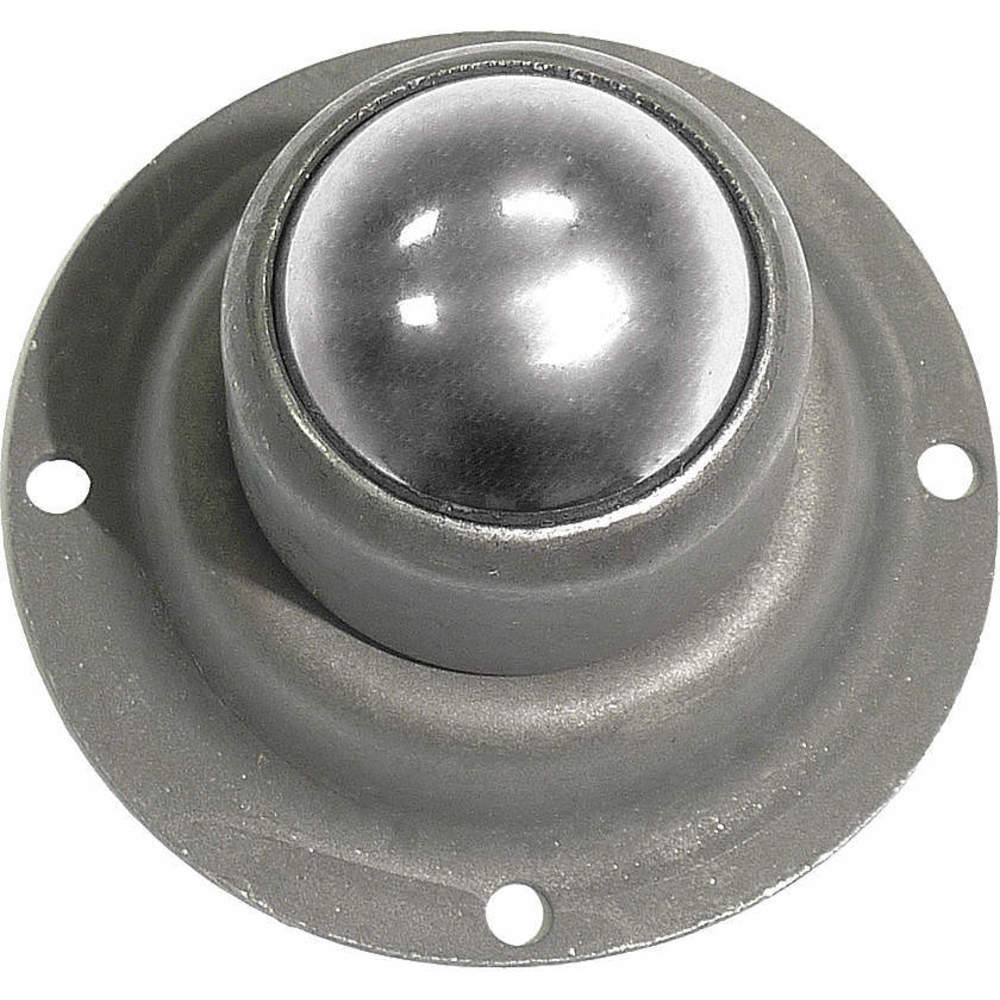

ABT FRD 4H 1.13DIA 180 CS/CSCarbon Steel--1.593Black Oxide Steel-5/32"-€23.82
BBT FRD 4H 1.25DIA 225 CS/CSCarbon Steel--1.75Black Oxide Steel-5/32"-€29.99
CBT F 2H 1DIA 75 CS/CSCarbon Steel1-3/16"2-3/16"1.187"Zinc Plated Steel2.75"7/32"2"€5.39
DBT F 4H 1.5DIA 250 CS/CSCarbon Steel1-13/16"2-19/32"1 13/16"Zinc Plated Steel3"9/32"3"€30.75
EBT F 4H 1.5DIA 250 CS/CSCCarbon Steel2-1/32"2-19/32"1 13/16"Zinc Plated Steel3"9/32"3"€39.54
FBT FRD 4H 1DIA 135 CS/CSCarbon Steel--1.5Black Oxide Steel-5/32"-€17.59
GBT FRT 2H 1DIA 135 CS/CSCarbon Steel--1-9/32Black Oxide Steel2.437"5/32"-€20.11
HBT FRT 2H .69DIA 90 CS/CSCarbon Steel--1Black Oxide Steel2.437"5/32"-€19.19
IBT F 4H 1.5DIA 125 NYL/SSNylon1-13/16"2-19/32"1 13/16"Stainless Steel3"9/32"3"€103.56
IBT F 4H 1.5DIA 125 NYL/CSNylon1-13/16"2-19/32"1 13/16"Zinc Plated Steel3"9/32"3"€46.07
JBT F 2H 1DIA 35 NYL/SSNylon1-3/16"2-3/16"1.187"Stainless Steel2.75"7/32"2"€55.87
JBT F 2H 1DIA 35 NYL/CSNylon1-3/16"2-3/16"1.187"Zinc Plated Steel2.75"7/32"2"€14.02
DBT F 4H 1.5DIA 250 SS/SSStainless Steel1-13/16"2-19/32"1 13/16"Stainless Steel3"9/32"3"€108.26
CBT F 2H 1DIA 75 SS/CSStainless Steel1-3/16"2-3/16"1.187"Zinc Plated Steel2.75"7/32"2"€21.28
EBT F 4H 1.5DIA 250 SS/SSCStainless Steel2-1/32"2-19/32"1 13/16"Stainless Steel3"9/32"3"€132.18
DBT F 4H 1.5DIA 250 SS/CSStainless Steel1-13/16"2-19/32"1 13/16"Zinc Plated Steel3"9/32"3"€61.97
CBT F 2H 1DIA 75 SS/SSStainless Steel1-3/16"2-3/16"1 13/16"Stainless Steel2"7/32"2.75"€43.88
