Electromagnetic Lock Power Supplies

Altronix NAC power extenders / supplies are cost-effective, voltage regulated, remote power extenders for notification appliance, circuit expansions and provide auxiliary power to support system accessories. They feature steel construction to reduce oxidation on the exposed surfaces and can connect to any 24V volt fire alarm control panel (FACP). These CE-approved extenders have 2-wire sync modes, allowing audible notification appliances (horns) and visual notification appliances (strobes) to be silenced or deactivated simultaneously. Additionally, they offer ground fall detections for preventing damage to the electrical components and the signal circuit, trouble memories help identify intermittent loop problems. These power supply devices utilise sealed, lead acid or gel type back up batteries for excellent heat conduction and the common trouble inputs or outputs for external, trouble signal tie-ins. These LED indicators turn on / off while carrying electricity and are available in 6, 8 & 10A output current ratings.

Altronix WayPoint outdoor power supplies provide voltages distributed via two, Class 2 rated, PTC protected, power-limited outputs to power heaters, CCTV cameras and other video accessories. They feature fiberglass reinforced polyester construction to reduce environmental impacts and have individual power output LED indicators for proper point-to-point functioning. These power supplies are further equipped with illuminated master power switches to transfer the loads and are available in 24VDC & 28VAC voltage outputs.

Altronix access power controllers have 8 independently controlled fused outputs to distribute and switch power to access control systems & accessories. These controllers feature an FACP interface that enables emergency egress, alarm monitoring and triggering auxiliary devices. They are integrated with a fire alarm disconnect feature that is individually selectable for any or all of the 8 relay outputs.

Altronix EoC hardened transceivers are designed to transmit data over Coax cables and provide power in a PoE / PoE+ compliant format to an enabled device / camera. These units feature a plug and play feature to facilitate hassle-free installation. Selected models can support up to two PoE or PoE+ cameras / devices or a single Hi-PoE (60W) device. They also feature built-in IP management for remote camera reset, monitoring and reporting via various IP protocols.

Altronix ReServ video surveillance UPS units are used as emergency power backup for running cameras during power outage, as well as maintaining camera synchronisation. These units feature a combination of multiple AC & DC PTC ports, producing true sine wave outputs rated 24VAC @ 4A and 12VDC @ 2A. They are equipped with rechargeable lead acid or gel batteries, a built-in charger and an automatic switchover feature to stand-by battery when AC fails. The LED indicators and audible alarm provide notification of failure / trouble.

Altronix open frame transformers are used to power heavy electronic equipment such as security, access control & surveillance devices. These step down transformers reduce voltage and increase amperage output proportionally. They are fitted inside steel angle frames for easy mounting on terminal blocks, rail terminals and stud connections. Choose from a wide range of these open frame transformers, also available with enclosure boxes for protection.

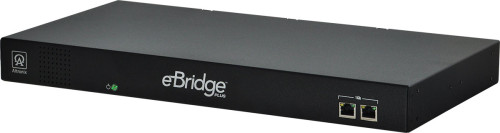

Altronix eBridge IP over coax receivers transmit data & power over coax cables and facilitate system upgrades from analogue to IP devices or cameras by utilising existing legacy coax. They eliminate the labour & costs during the installation of a new network cable and enable power & data transmission extended over 500 meters. Further, these CE-approved & UL-listed receivers extend network link distances in industrial environments and upgrade deployed CCTV coax to digital networks for airports, hospitals, schools & casinos, working along with megapixel, HD1080 & HD720 cameras. They feature RJ45 type ethernet connectivity for compatibility & additional protection in harsh environments and LED indicators to indicate the proper point-to-point functioning of the devices. Additionally, these C-Tick compliant devices are equipped with type 16 channels, allowing them to have 16 cameras on one system and the throughputs are rated to pass up to 25 Mbps over long distances. Choose from a wide range of these devices with operating temperatures ranging from 14 degrees Fahrenheit to 122 degrees Fahrenheit, available in 1 & 16 output variants.

Altronix sensitive relay modules are ideal for continuous duty operations in handling switching applications. They feature phenolic material to withstand humidity & high temperatures or have fiberglass construction, providing electrical insulation with chemical resistance. Choose from a wide range of these modules, operating on temperatures ranging from -25 degrees Celsius to 55 degrees Celsius and are available in widths of 1.9 & 2.75 inches.

Altronix ACM Series power supplies / chargers are ideal for switching and distributing power to access control systems and accessories. They convert a 115VAC, 60Hz input into eight independently controlled 12VDC or 24VDC fuse protected outputs. These power outputs can be converted to dry form C-contacts and are activated by open collector sinks or open dry trigger inputs from card readers, access control systems, push button and keypads. They route power to a variety of access control hardware devices including mag locks and magnetic door holders. The outputs operate in both Fail-Safe and Fail-Secure modes for an adjustable voltage output. The FACP (fire alarm control panel) interfaces enable emergency egress, alarm monitoring & to trigger other auxiliary devices. The fire alarm disconnects are individually selectable for any or all of the eight outputs along with relay indicators to prevent overvoltages & overcurrent faults.

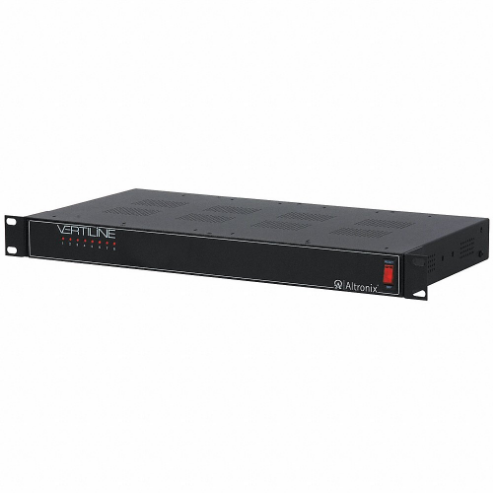

Altronix Vertiline CCTV rack mount power supplies provide 16 fuse, protected power outputs in space saving, rack mount chassis that can also be wall or shelf mounted. They feature individually selectable, 24VAC or 28VAC power outputs with surge suppression to resist increasing temperatures. These UL-listed devices protect against short circuits & thermal overloads and provide filtered and regulated outputs for a smooth DC power supply. They offer illuminated, master power disconnect circuit breakers with manual reset switches for default settings and removable terminal blocks with locking screw flanges to secure the wires together. Choose from a wide range of these power supplies with operating temperatures of 0 to 49 degrees C and are available in 50Hz & 60Hz input frequencies.

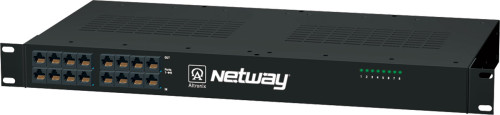

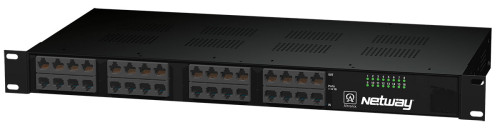

Altronix NetWay midspans provide power and pass data for PoE and PoE+ compliant cameras / edge devices. These network managed midspans feature a battery charger for applications requiring backup. They are integrated with embedded LINQ technology to monitor, control and report power & diagnostics. This technology also provides local and / or remote access to critical information via LAN / WAN. These units feature yellow & green LED visual indicators to convey IP link and port status.

Altronix Pace Series long range ethernet receivers are designed to receive ethernet ports and transmit them further at a maximum transfer speed of 100 Mbps per port. These units are easy to install and provide effective transfer to IP devices over a distance of 500 meters. The ports are arranged in a gang of 4 outputs and 4 inputs. They are powered by CAT5e or higher cables in a PoE(+) compliant format and are equipped with LEDs for IP link status. Choose from a wide range of these ethernet receivers, available in 4, 8 & 16 port options on Raptor Supplies.

Altronix eBridge EoC port receivers are designed for auto detection & protection of legacy non-PoE cameras / devices and transmit data & power over coax cables in PoE compliant formats. They are powered by UL-listed power sources, as well as connected by RJ45 & auto-crossover ethernet connectors for compatibility & additional protection from harsh environments. These receivers are integrated with LED indicators through which controlling & viewing data logging becomes easy. They can operate at temperatures ranging from -20 degrees to 49 degrees Celsius. The throughputs are rated to pass at least 25Mbps up to 500 meter distance and requires Cat5 wire cables for high transmission of speed.

Altronix battery shelves allow the addition of two 12VDC / 12 AH batteries to enclosures, bringing the the total up to four 12VDC / 12 AH batteries. These units feature steel construction for handling high temperatures and offering excellent corrosion resistance. They are ideal for Altronix BC400G and BC400R power supply / battery enclosures.

Altronix UTP passive transceiver hubs have integral camera power to transmit UTP video, RS422 / RS485 data and power over a single Cat-5 or higher structured cable. These hubs feature individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression for protection from voltage spikes. The video transmission range is up to 750 ft per channel. These hubs have a rack mount chassis for rack, wall or shelf mounting.

Altronix UTP passive transceiver hubs are used to transfer UTP video, power and data over a single CAT-5 or high structured cable for high speed transmission. They provide 8 camera channels in space saving, wall or rack mount enclosures with video transmissions up to 750 feet per channel. These devices feature individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression to resist increasing temperatures. The optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from 4 cameras at a time over a single CAT-5 or high structured cable and provide power to minimise the possibility of voltage drops, associated with long cable runs.

Altronix access power integration kits are designed to accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to four doors in a single enclosure. These pre-assembled kits consist of Trove1 enclosures / backplanes with factory-installed Altronix power supplies / chargers and sub-assemblies. These units automatically switch over to a stand-by battery when AC power fails. There is zero voltage drop when the unit switches over to battery backup.

Altronix 8-door software access and power integration kits consist of pre-assembled Trove1SH1R enclosure / backplane with factory installed power supplies / chargers & sub-assemblies. These access & power integration kits are capable of accommodating various software house board combinations up to 8 doors, in a single enclosure. These kits are integrated with built-in chargers for sealed lead acid or gel batteries and are capable of being operated at temperatures ranging from 0 to 49 degrees C.
