Extension Springs

Filter

WHEELER-REX -

Style	Model	Price (ex. VAT)
A	97124	€11.92
A	97244	€14.11
A	97484	€20.02
A	97084	€5.72
A	97104	€6.13
A	97184	€11.53
A	97364	€17.29
A	97604	€62.62

Style	Model	Deflection @ Load	Load (lbs.)	Outside Dia.	Overall Length	Spring Rate	Wire Dia.	Price (ex. VAT)	Pkg. Qty.
A	1NAR3	0.3"	31.28	3/4"	2.437"	29.61 Lbs./In.	0.105"	€10.33	6
A	1NAN8	0.13"	31.02	23/32"	1.625"	120.89 Lbs./In.	0.105"	€15.22	6
A	1NAN9	0.16"	21.38	1/2"	1.75"	70.2 Lbs./In.	0.08"	€12.51	6
A	1NAR1	0.18"	30.39	3/4"	2"	91.08 Lbs./In.	0.105"	€10.00	6
A	1NAR2	0.27"	18.11	3/4"	2.25"	63.47 Lbs./In.	0.105"	€9.26	6
A	1NAR7	0.32"	49.02	23/32"	3.375"	73.36 Lbs./In.	0.120"	€17.13	6
A	1NAR5	0.34"	29.96	3/4"	2.625"	49.31 Lbs./In.	0.105"	€9.23	6
A	1NAR6	0.42"	38.10	11/16"	2.75"	60.88 Lbs./In.	0.105"	€16.18	6

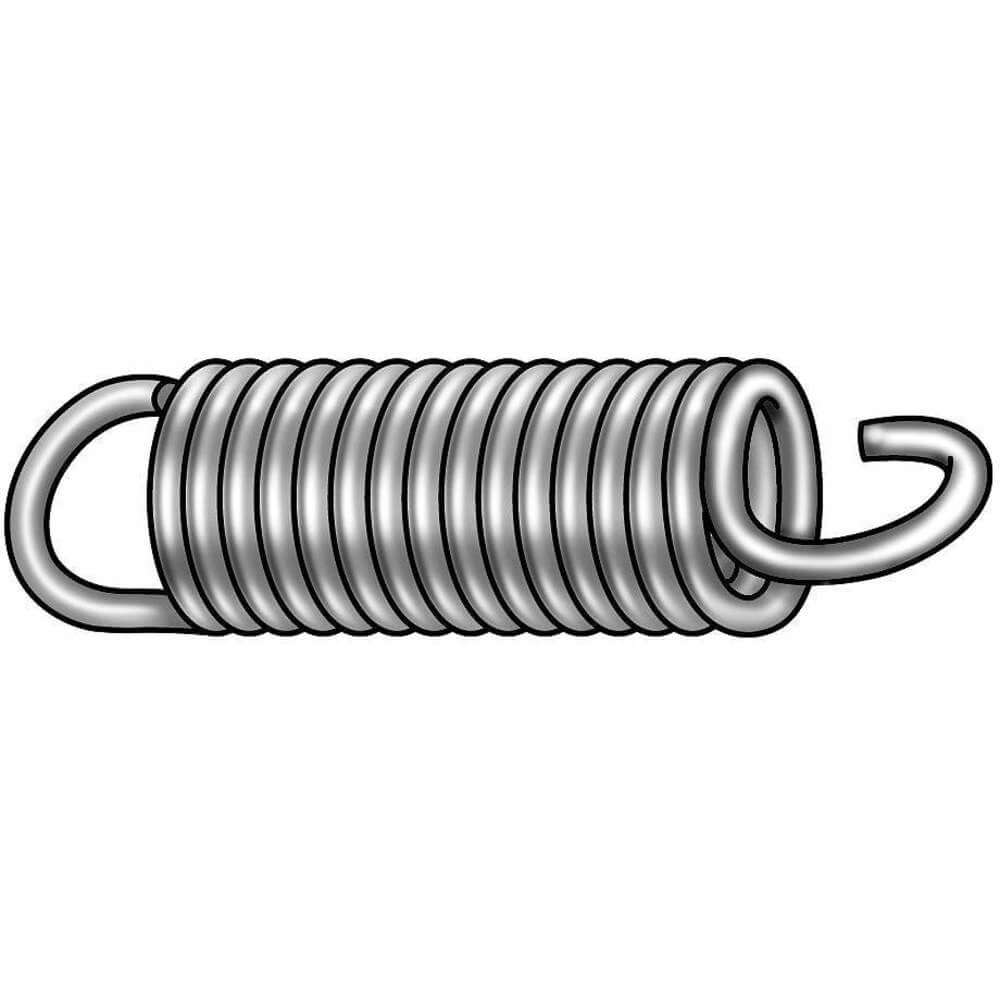

A	1NAR4	0.78"	22.25	11/16"	2.5"	29.74 Lbs./In.	0.091"	€15.81	6

Style	Model	Price (ex. VAT)

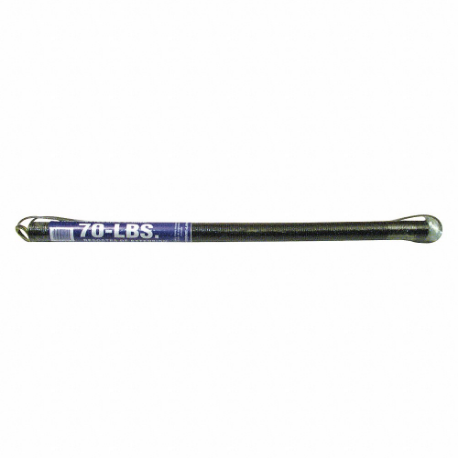

A	GD 12202	€50.58
B	GD 12279	€41.68

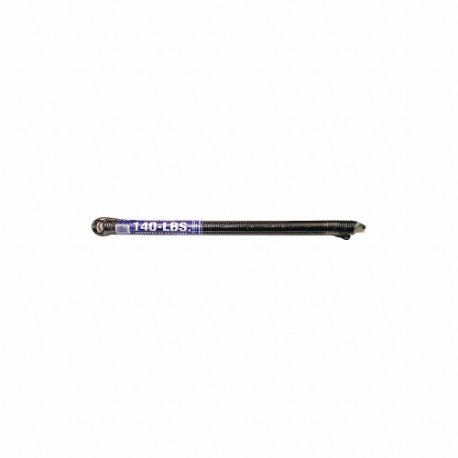

C	GD 12194	€55.04
D	GD 12277	€45.61

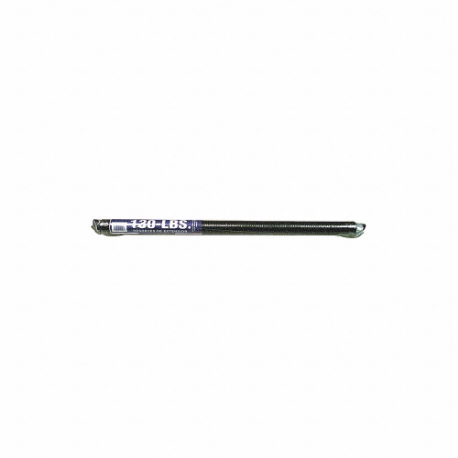

E	GD 12193	€52.62

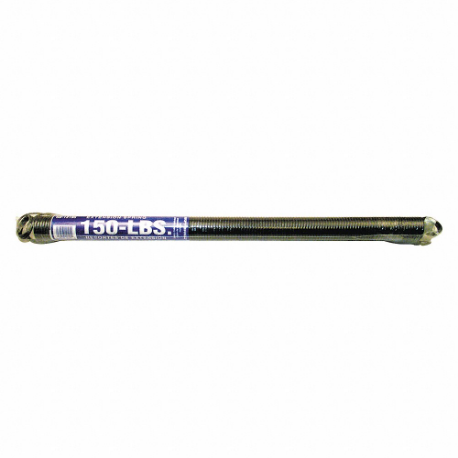

F	GD 12195	€94.38

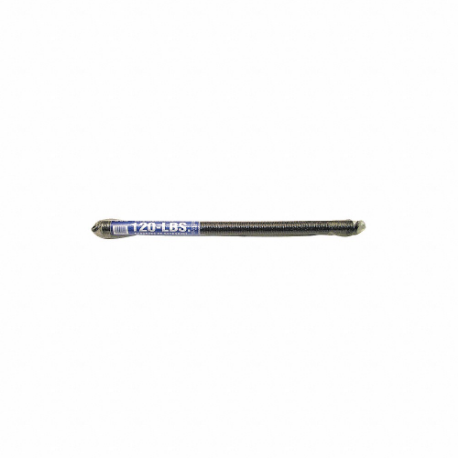

G	GD 12192	€59.41

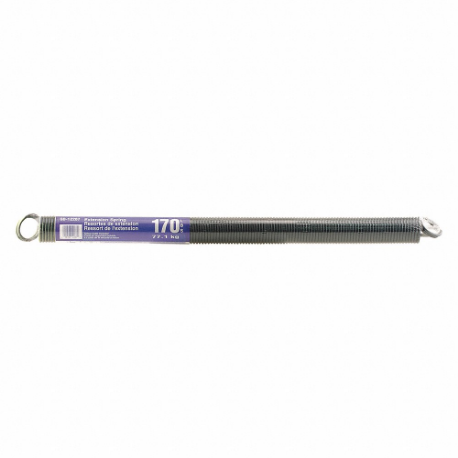

H	GD 12267	€79.45
I	GD 12205	-	RFQ

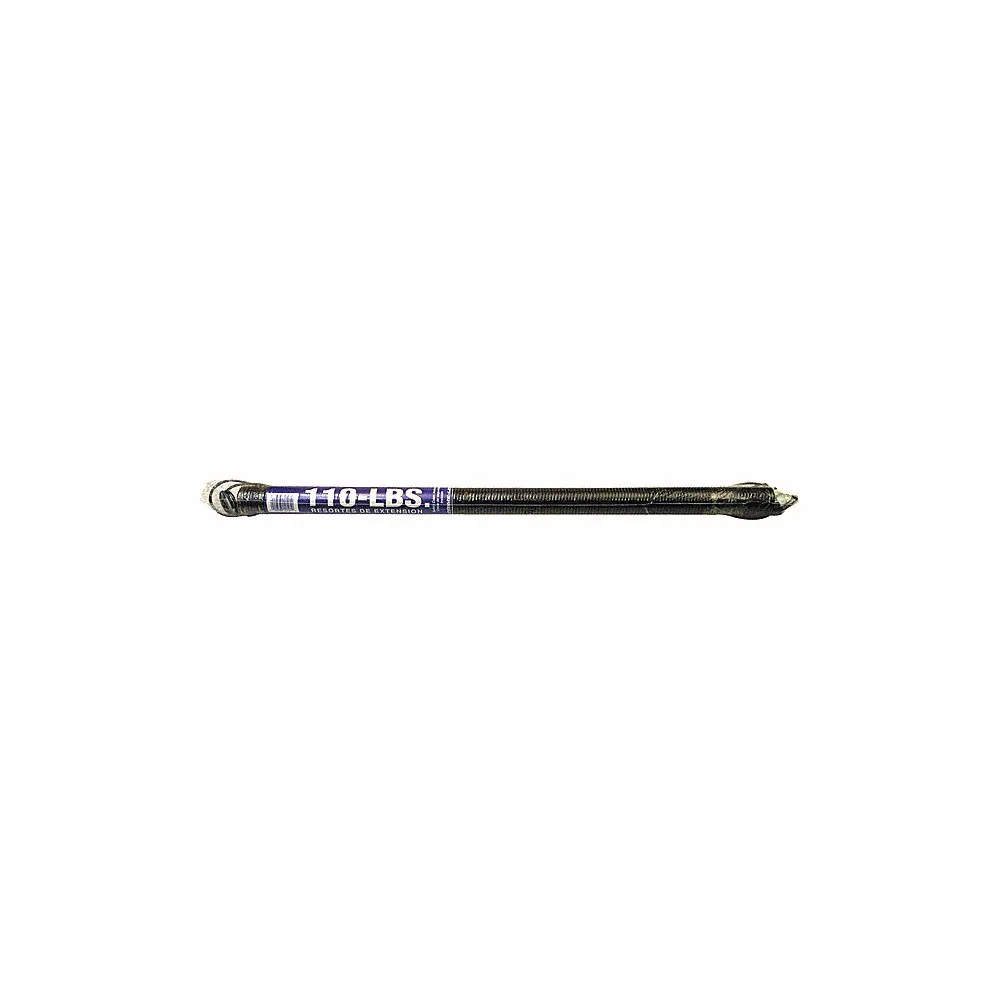

J	GD 12191	€45.82

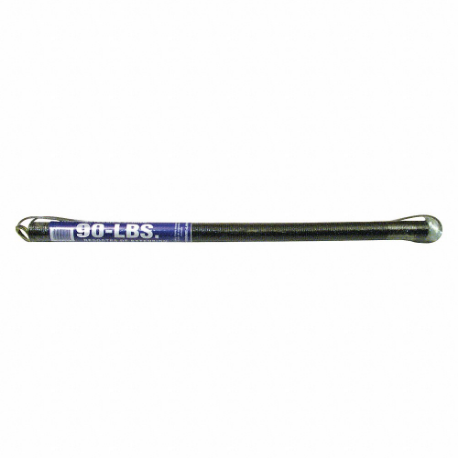

K	GD 12311	€44.97

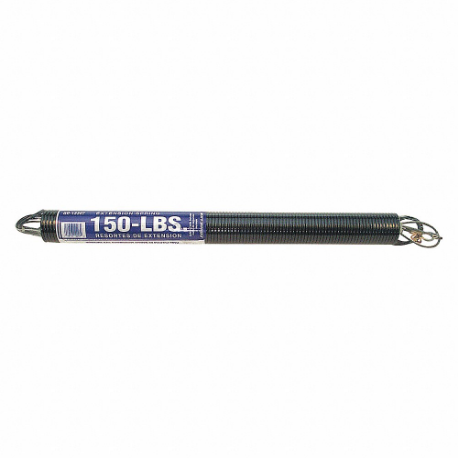

L	GD 12207	€73.74

Style	Model	Price (ex. VAT)	Pkg. Qty.

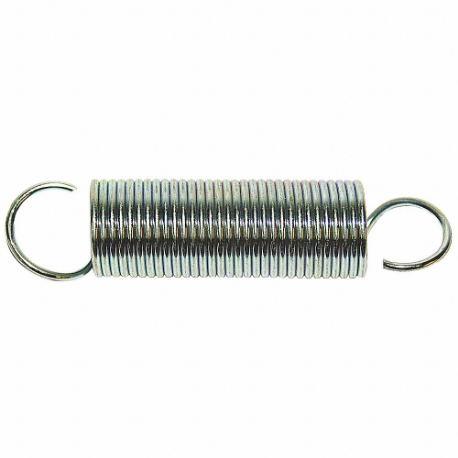

A	37059GS	€11.55	3

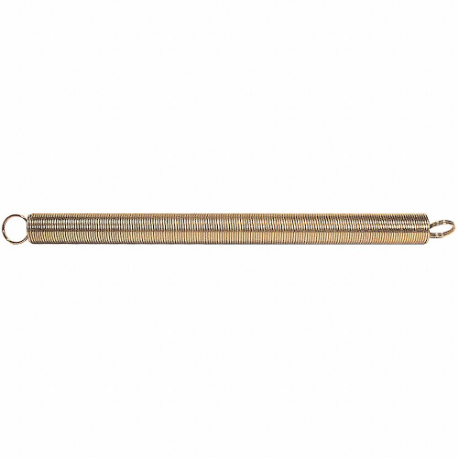

B	5RLT8	€6.95	1
B	5RLT9	€5.43	1

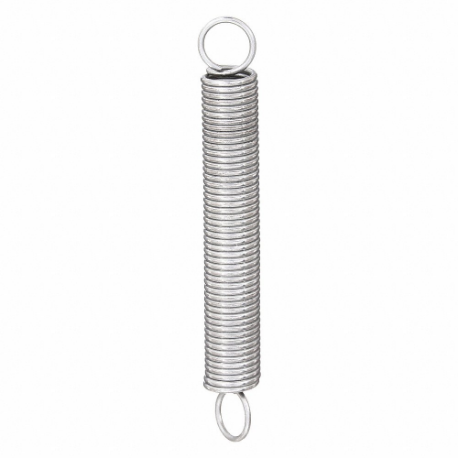

C	E20C	€17.24	12

Style	Model	Deflection @ Load	Finish	Load (lbs.)	Material	Outside Dia.	Overall Length	Spring Rate	Wire Dia.	Price (ex. VAT)	Pkg. Qty.
A	1MZX6	0.5"	Zinc-Plated	3.28	High Carbon Steel	1/4"	1"	5.21 Lbs./In.	0.029"	€13.53	12
B	1NAK5	0.7"	Plain	10.03	302 Stainless Steel	3/8"	1.5"	10.97 Lbs./In.	0.048"	€6.25	3
B	1NAJ6	0.9"	Plain	2.77	302 Stainless Steel	5/16"	1"	2.61 Lbs./In.	0.035"	€9.47	6
A	1MZX8	0.43"	Zinc-Plated	4.65	High Carbon Steel	5/16"	1"	8.56 Lbs./In.	0.035"	€13.43	12
A	1MZX5	0.55"	Zinc-Plated	2.3	High Carbon Steel	3/16"	1"	3.22 Lbs./In.	0.023"	€9.79	12
A	1MZZ1	0.57"	Zinc-Plated	9.59	High Carbon Steel	3/8"	1.5"	12.62 Lbs./In.	0.048"	€4.46	3
B	1NAJ5	0.63"	Plain	3.53	302 Stainless Steel	1/4"	1"	4.53 Lbs./In.	0.029"	€9.02	6
A	1MZY3	0.69"	Zinc-Plated	4.61	High Carbon Steel	5/16"	1.25"	5.32 Lbs./In.	0.035"	€14.01	12
A	1MZX7	0.73"	Zinc-Plated	2.62	High Carbon Steel	5/16"	1"	3 Lbs./In.	0.029"	€13.43	12
B	1NAJ4	0.74"	Plain	2.57	302 Stainless Steel	3/16"	1"	2.8 Lbs./In.	0.023"	€9.88	6
A	1MZZ7	0.74"	Zinc-Plated	9.54	High Carbon Steel	3/8"	1.75"	9.69 Lbs./In.	0.048"	€4.57	3
A	1MZX9	0.74"	Zinc-Plated	2.33	High Carbon Steel	3/16"	1.25"	2.44 Lbs./In.	0.023"	€10.53	12
A	1MZY1	0.81"	Zinc-Plated	3.31	High Carbon Steel	1/4"	1.25"	3.28 Lbs./In.	0.029"	€13.53	12
A	1MZY4	0.82"	Zinc-Plated	3.79	High Carbon Steel	3/8"	1.25"	3.82 Lbs./In.	0.035"	€17.93	12
B	1NAK1	0.85"	Plain	4.91	302 Stainless Steel	5/16"	1.25"	4.63 Lbs./In.	0.035"	€9.09	6
A	1NAA4	0.89"	Zinc-Plated	9.53	High Carbon Steel	3/8"	2"	8.01 Lbs./In.	0.048"	€4.60	3
B	1NAL1	0.91"	Plain	10.03	302 Stainless Steel	3/8"	1.75"	8.43 Lbs./In.	0.048"	€6.83	3
A	1MZY8	0.95"	Zinc-Plated	4.67	High Carbon Steel	5/16"	1.5"	3.86 Lbs./In.	0.035"	€14.62	12
B	1NAJ7	0.97"	Plain	2.57	302 Stainless Steel	3/16"	1.25"	2.12 Lbs./In.	0.023"	€10.53	6
B	1NAJ8	1.01"	Plain	3.53	302 Stainless Steel	1/4"	1.25"	2.85 Lbs./In.	0.029"	€10.13	6
B	1NAK2	1.01"	Plain	3.99	302 Stainless Steel	3/8"	1.25"	3.32 Lbs./In.	0.035"	€12.29	6
A	1MZY5	1.01"	Zinc-Plated	2.43	High Carbon Steel	3/16"	1.5"	1.88 Lbs./In.	0.023"	€10.98	12
A	1MZY6	1.04"	Zinc-Plated	3.37	High Carbon Steel	1/4"	1.5"	2.6 Lbs./In.	0.029"	€13.53	12
B	1NAL2	1.1"	Plain	10.03	302 Stainless Steel	3/8"	2"	6.97 Lbs./In.	0.048"	€6.60	3
A	1NAB8	1.7"	Zinc-Plated	8	High Carbon Steel	7/16"	2.5"	3.73 Lbs./In.	0.048"	€10.30	6

Style	Model	Price (ex. VAT)

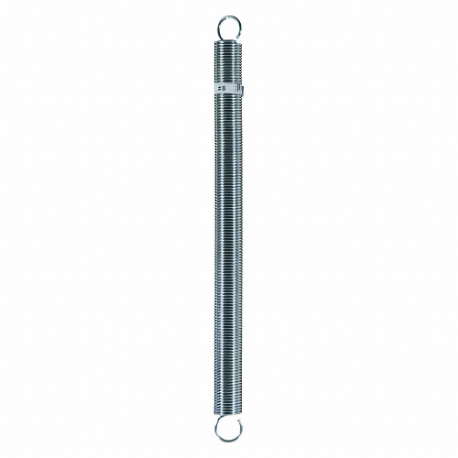

A	#8	€13.80

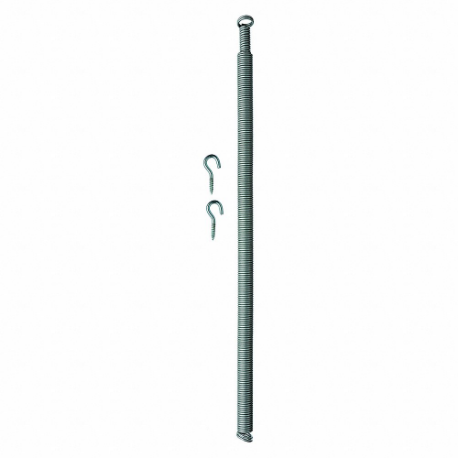

B	V16	€5.98

Style	Model	Price (ex. VAT)

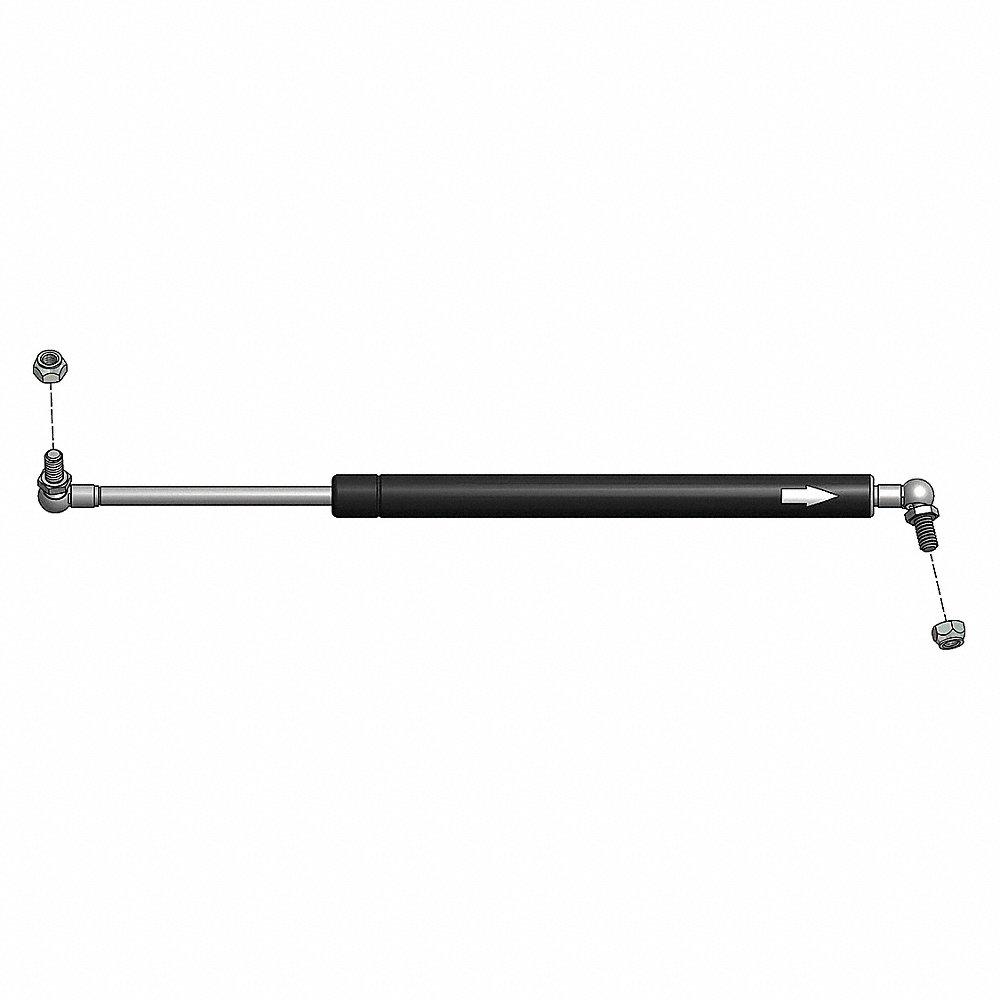

A	SU7008	-	RFQ

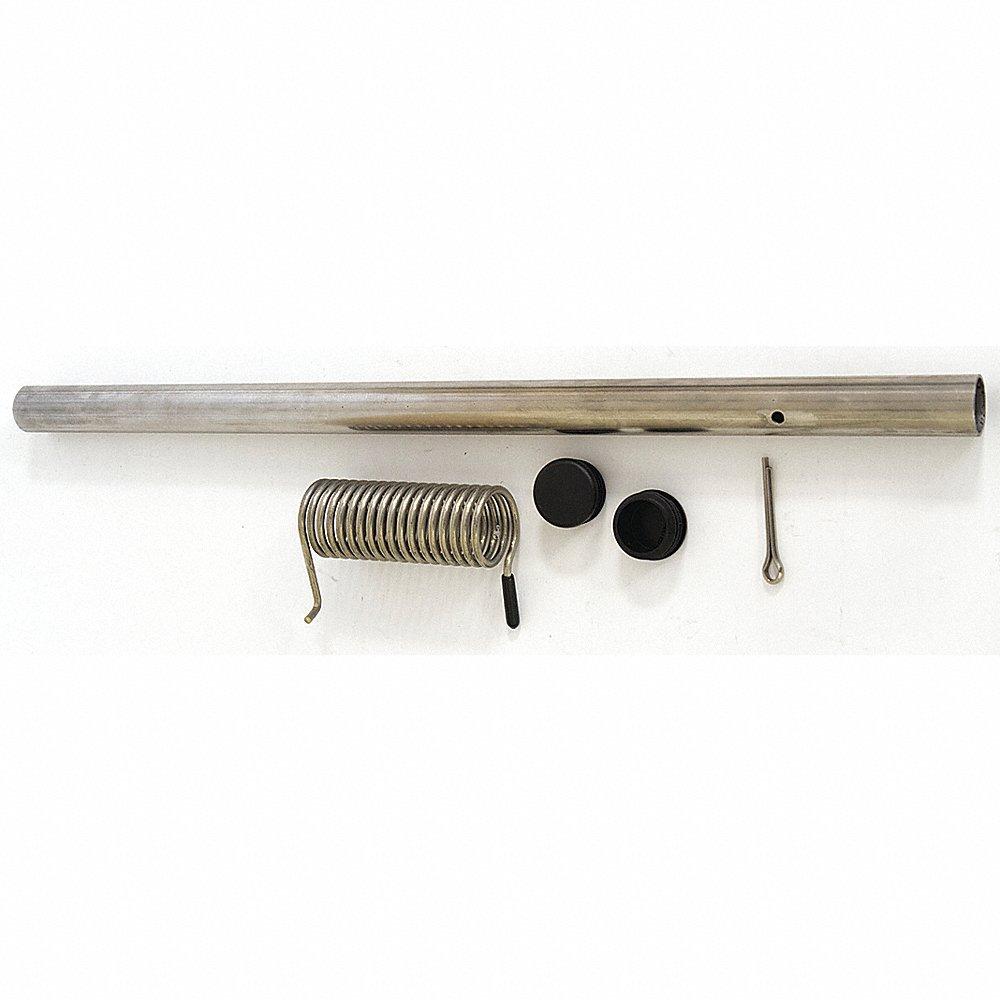

B	SU0048	-	RFQ

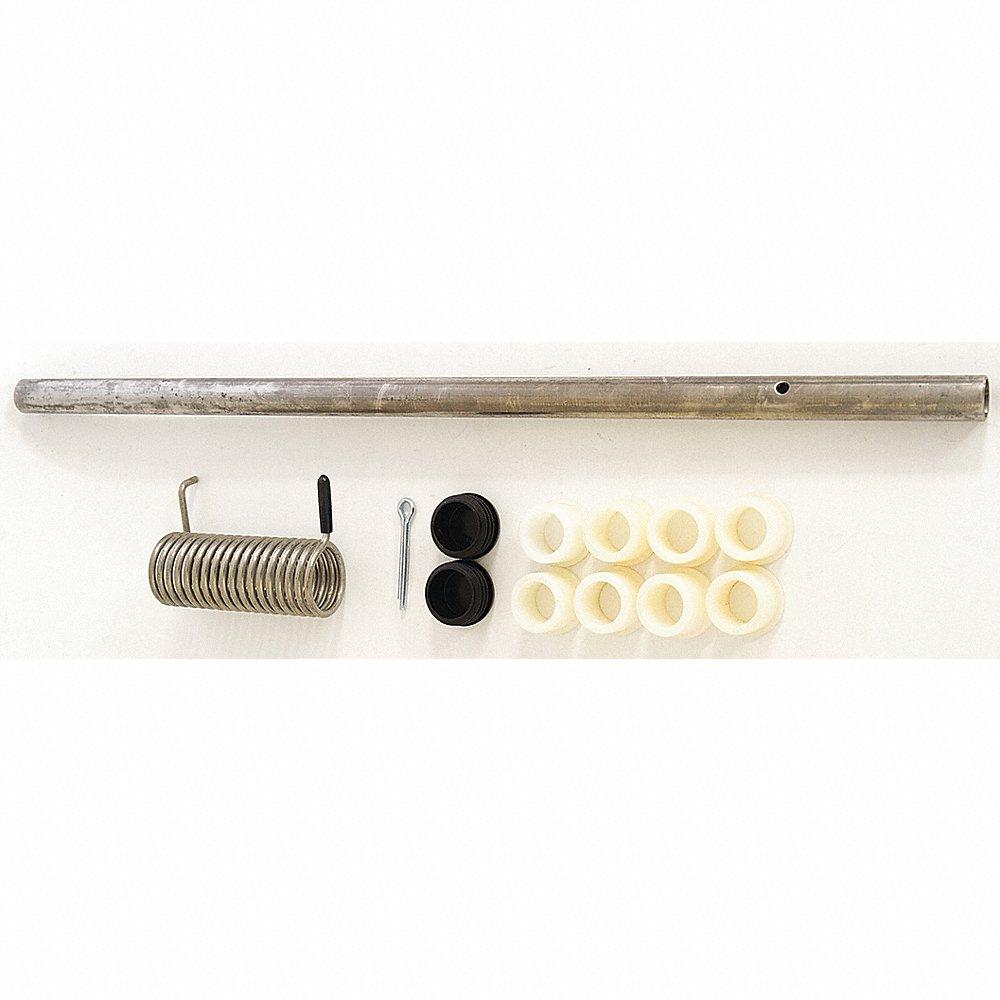

C	SU0053	€174.88

Style	Model	Price (ex. VAT)	Pkg. Qty.
A	T31220	€15.71	2
B	T41700	€19.31	2
C	E03000371120S	€29.85	5
C	E03600554500S	€22.67	3
C	E03600345000S	€24.63	3
C	E04200373000S	€19.27	3
C	E02400375000S	€19.22	3
C	E05000453000S	€23.80	3
C	E05000635000S	€24.05	3
A	EM1101000102M	€19.35	2
C	E05000555000S	€26.70	3
C	E11251256500S	€33.16	1
C	E03600341120S	€28.95	5
D	E01800220880M	€52.14	10
C	E12501486500S	€34.47	1
C	E10001253500S	€37.53	2
C	E10001053500S	€26.09	2
C	E17502076500S	€51.67	1
D	E02400293500M	€19.12	3
C	E10001156500S	€28.57	1
D	E03600454000M	€52.15	10
C	E10001256500S	€33.16	1
C	E15001484500S	€51.56	2
C	E03600372500S	€28.95	5
C	E11250856500S	€52.44	2

Style	Model	Price (ex. VAT)	Pkg. Qty.
A	020154000	€27.35	1
A	020155000	€30.91	1

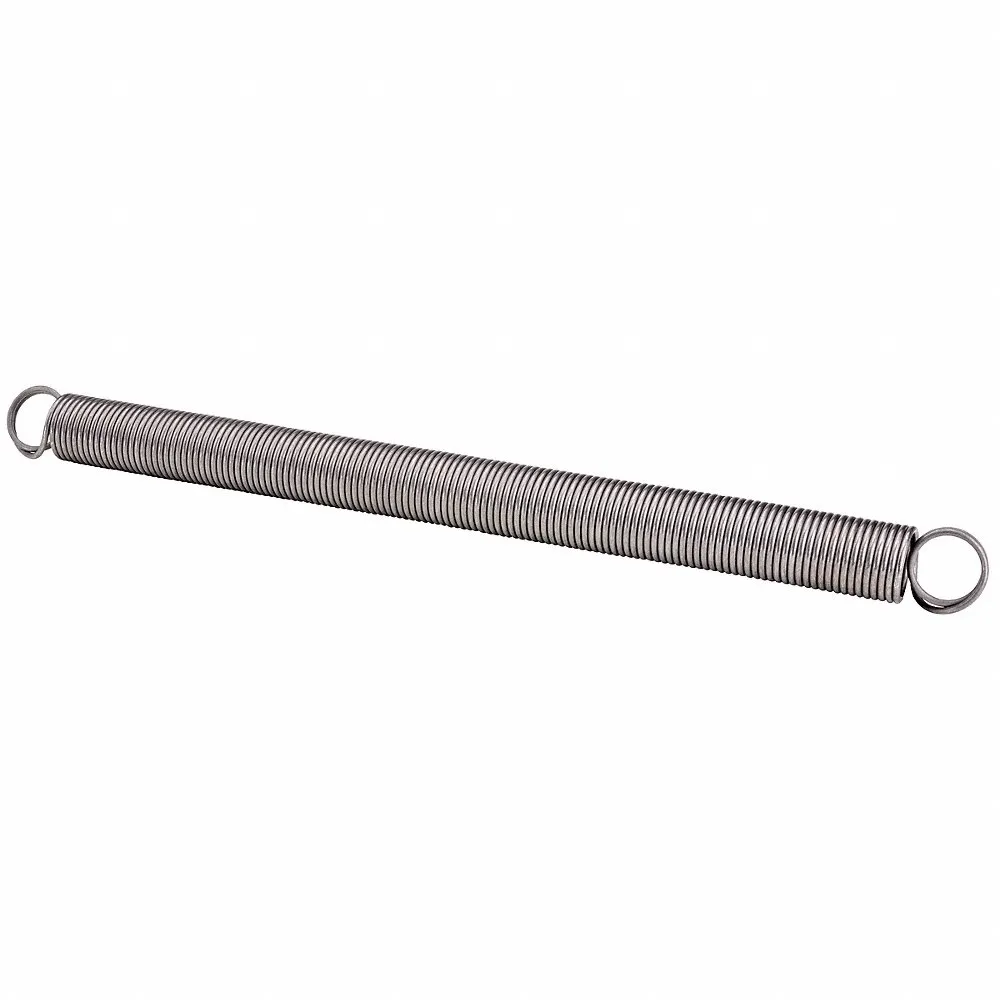

A	020152000	€44.75	2
A	020108000	€61.17	1
A	020153000	€45.73	1

Style	Model	Price (ex. VAT)
A	107XPA-SK	€7.12
A	109XPA-SK	€15.48

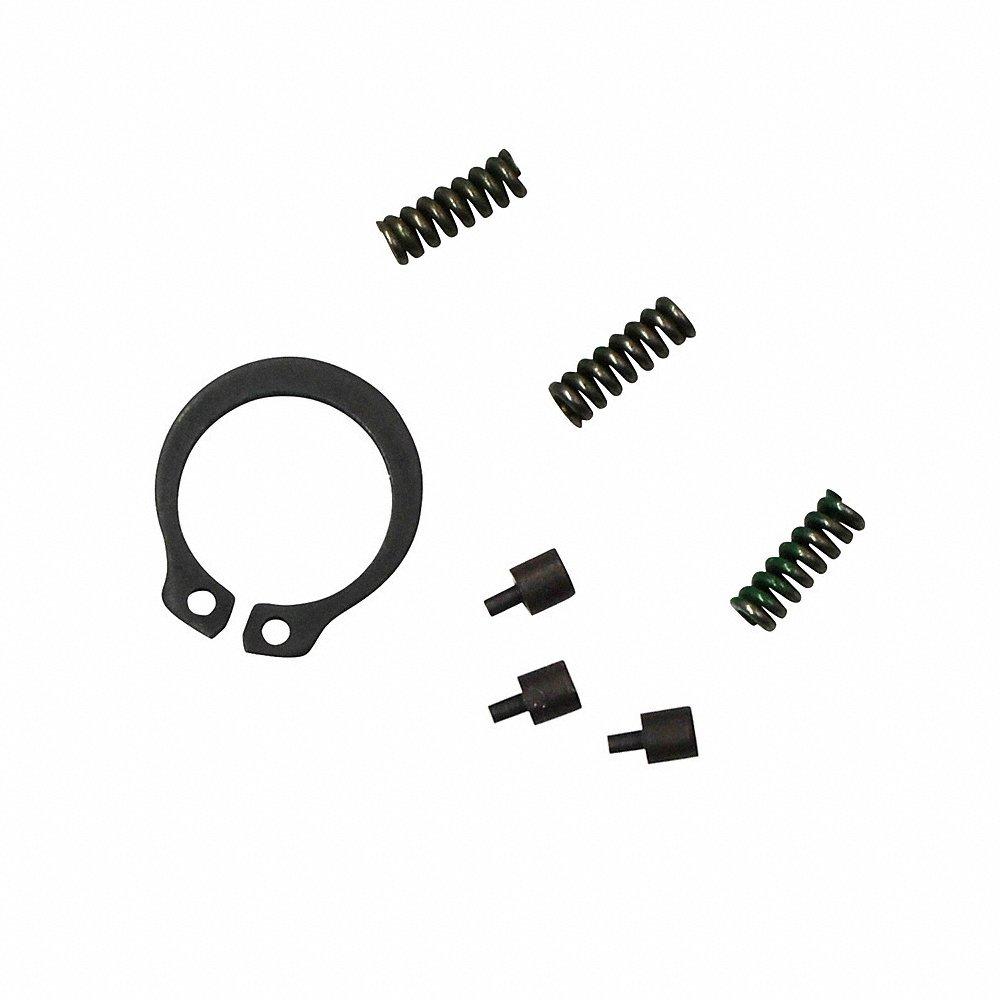

B	1105-SK	€8.41

Style	Model

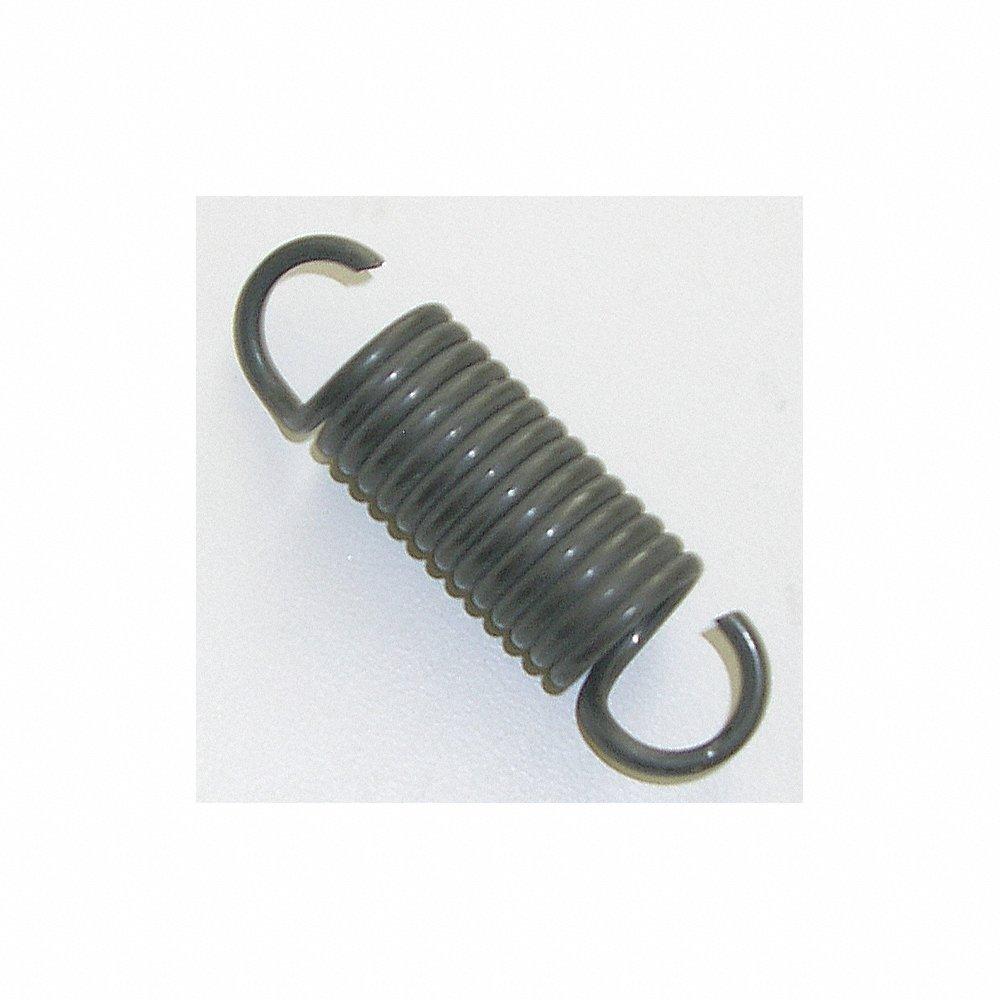

A	37-146-001

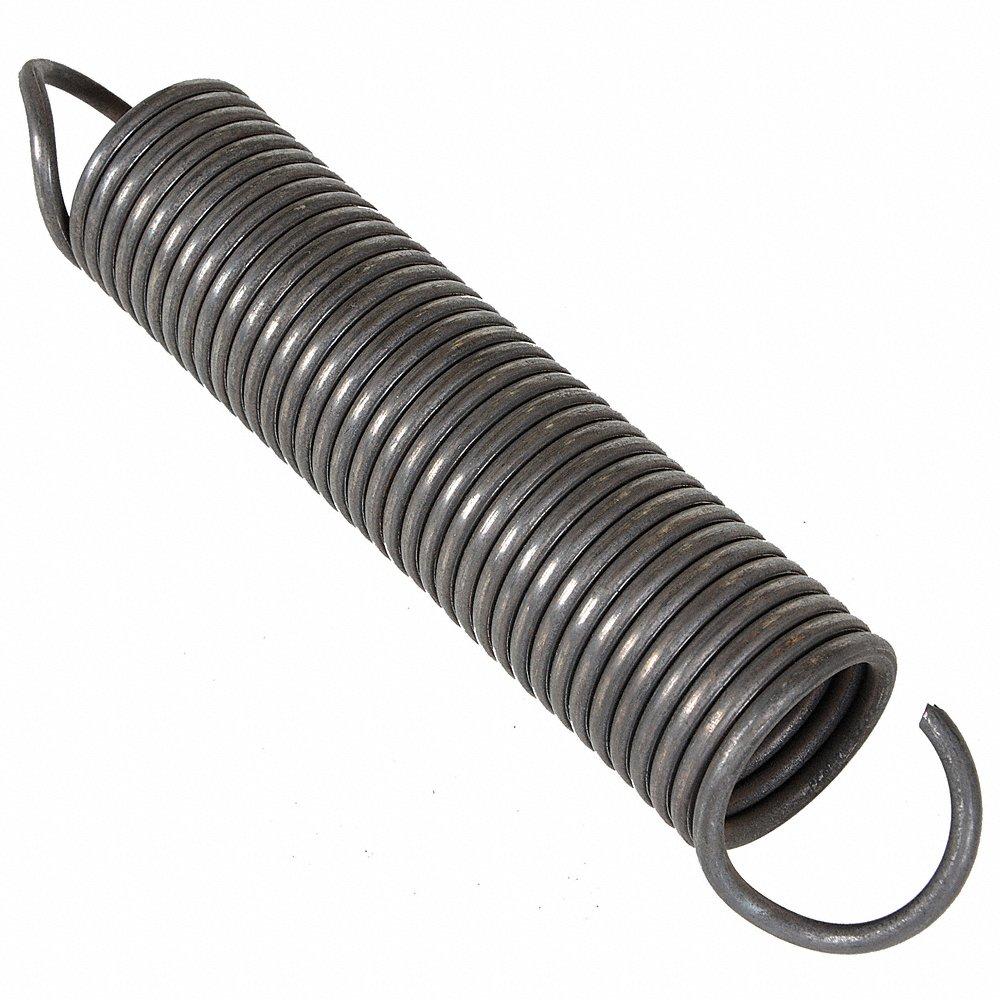

B	15-146-001

Style	Model	Deflection @ Load	End Type	Finish	Load (lbs.)	Material	Outside Dia.	Overall Length	Spring Rate	Price (ex. VAT)
A	3HPT8	-	Double Center Loop	Zinc-Plated	-	MBHD Carbon Steel	0.4"	16.5"	-	€4.90
A	3HPT9	-	Double Center Loop	Zinc-Plated	-	MBHD Carbon Steel	0.46"	16.5"	-	€5.16
A	3HPT7	-	Double Center Loop	Zinc-Plated	-	MBHD Carbon Steel	0.358"	16.5"	-	€3.94
B	1NBT2	1.2"	Closed Drawbar	Zinc-Plated	174	High Carbon Steel	1.375"	8.75"	145 Lbs./In.	€32.57
B	1NBR3	1.9"	Closed Drawbar	Zinc-Plated	55.1	High Carbon Steel	1.1"	6"	29 Lbs./In.	€21.86
B	1NBU6	1.35"	Closed Drawbar	Plain	195.75	302 Stainless Steel	1.375"	8.75"	145 Lbs./In.	€68.49
B	1NBT3	1.65"	Closed Drawbar	Zinc-Plated	247.5	High Carbon Steel	1.625"	13.75"	150 Lbs./In.	€20.05
B	1NBU7	1.75"	Closed Drawbar	Plain	262.5	302 Stainless Steel	1.625"	13.75"	150 Lbs./In.	€92.70
B	1NBR8	1.85"	Closed Drawbar	Zinc-Plated	332.72	High Carbon Steel	2.1"	8"	179.85 Lbs./In.	€55.28
B	1NBT1	1.85"	Closed Drawbar	Zinc-Plated	222	High Carbon Steel	1.875"	8.5"	109.6 Lbs./In.	€41.82
B	1NBU5	2"	Closed Drawbar	Plain	240	302 Stainless Steel	1.875"	8.5"	118.68 Lbs./In.	€81.48
B	1NBR2	2.2"	Closed Drawbar	Zinc-Plated	5.01	High Carbon Steel	0.675"	4"	2.28 Lbs./In.	€10.83
B	1NBT6	2.3"	Closed Drawbar	Plain	5.24	302 Stainless Steel	0.675"	4"	2.28 Lbs./In.	€18.23
B	1NBU3	2.19"	Closed Drawbar	Plain	365.97	302 Stainless Steel	2.1"	8"	167.11 Lbs./In.	€100.85
B	1NBT7	2.35"	Closed Drawbar	Plain	68.15	302 Stainless Steel	1.1"	6"	29 Lbs./In.	€28.56
B	1NBR6	2.35"	Closed Drawbar	Zinc-Plated	42.3	High Carbon Steel	0.875"	7.5"	18 Lbs./In.	€9.23
B	1NBR7	2.75"	Closed Drawbar	Zinc-Plated	180.65	High Carbon Steel	2.1"	7.875"	65.69 Lbs./In.	€46.96
B	1NBU1	2.75"	Closed Drawbar	Plain	49.5	302 Stainless Steel	0.875"	7.5"	18 Lbs./In.	€37.39

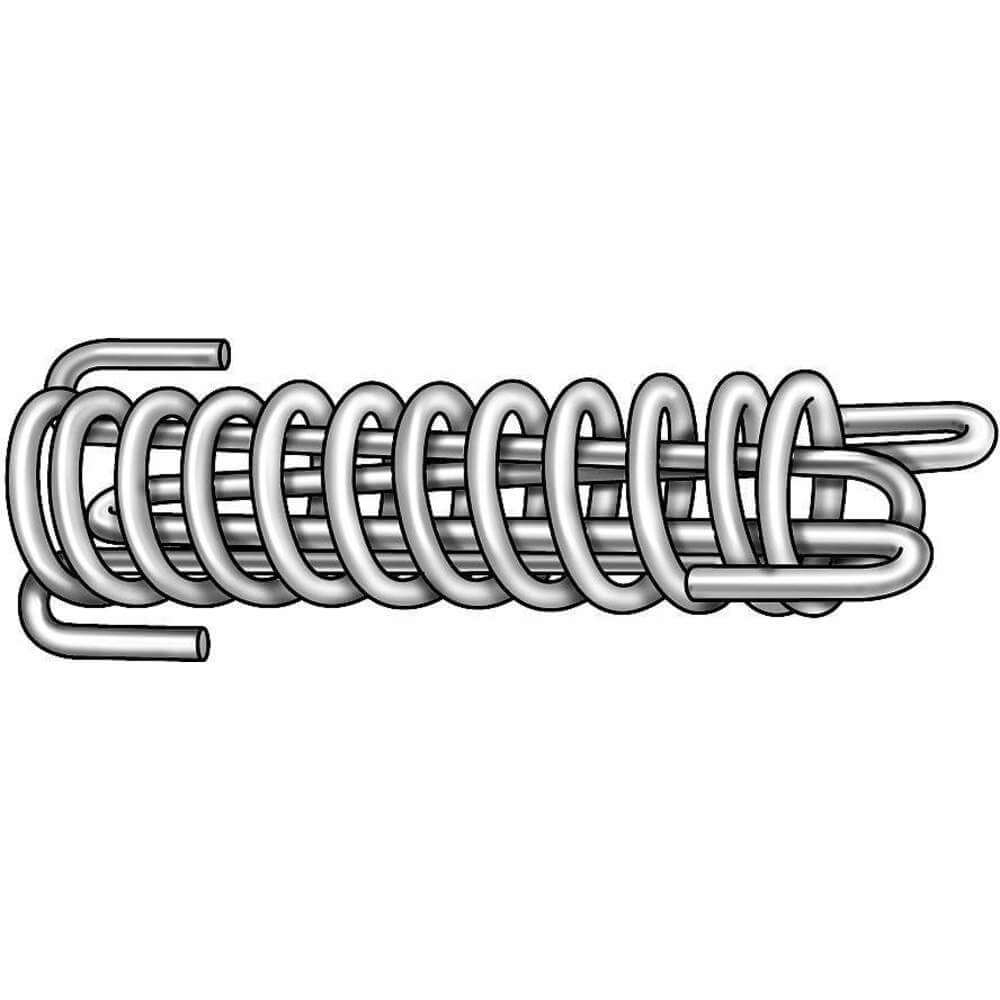

B	1NBR5	3"	Closed Drawbar	Zinc-Plated	12.62	High Carbon Steel	1.192"	6"	4.21 Lbs./In.	€17.54
B	1NBT4	3.4"	Closed Drawbar	Zinc-Plated	313.81	High Carbon Steel	2.462"	13.75"	92.3 Lbs./In.	€72.53
B	1NBU8	3.7"	Closed Drawbar	Plain	316.11	302 Stainless Steel	2.462"	13.75"	85.44 Lbs./In.	€114.20
B	1NBT9	3.25"	Closed Drawbar	Plain	13.67	302 Stainless Steel	1.192"	6"	4.21 Lbs./In.	€28.32
B	1NBU2	3.25"	Closed Drawbar	Plain	213.3	302 Stainless Steel	2.1"	7.875"	65.69 Lbs./In.	€78.29
B	1NBR4	4"	Closed Drawbar	Zinc-Plated	11.1	High Carbon Steel	1.162"	6"	2.77 Lbs./In.	€14.70
B	1NBR9	4"	Closed Drawbar	Zinc-Plated	54.08	High Carbon Steel	1.746"	8.5"	13.52 Lbs./In.	€34.76

Extension Spring Standard Steel
Associated Spring Raymond utility extension springs are designed to absorb & store energy, as well as resist component pulling action. These springs feature steel construction with machined half loops / full twist loops on both ends to prevent the individual components from moving apart. Choose from a wide range of these extension springs available in packs of 3, 6 and 12 on Raptor Supplies.

Style	Model	Deflection @ Load	End Type	Load (lbs.)	Outside Dia.	Overall Length	Spring Rate	Wire Dia.	Price (ex. VAT)	Pkg. Qty.
A	020042000	0.5"	-	0.14	0.19"	1"	0.15 Lbs./In.	0.01"	€10.79	12
A	020099000	0.5"	Machine Half Loop	31.00	0.69"	3 43/64"	32 Lbs./In.	0.11"	€14.96	3
A	020034000	0.25"	Machine Half Loop	26.10	0.5"	1.625"	72.25 Lbs./In.	0.08"	€18.23	6
A	020037000	0.38"	Machine Half Loop	8.54	0.34"	1 11/32"	16.1 Lbs./In.	0.05"	€10.79	12
A	020032000	0.38"	Machine Half Loop	29.50	0.75"	2.375"	39 Lbs./In.	0.11"	€32.99	12
A	020040000	0.54"	Full Twist Loops	0.53	0.23"	1 3/32"	0.69 Lbs./In.	0.02"	€17.86	12
A	020023000	0.72"	Full Twist Loops	2.75	0.73"	3 31/32"	1.66 Lbs./In.	0.06"	€10.19	3
A	020020000	1"	Full Twist Loops	1.15	0.25"	4"	0.65 Lbs./In.	0.03"	€15.21	6
A	020010000	1"	Full Twist Loops	1.31	0.33"	6.437"	0.51 Lbs./In.	0.04"	€11.86	6
A	020100000	1"	Machine Half Loop	35.50	1.13"	9 45/64"	13.5 Lbs./In.	0.15"	€67.62	6
A	020013000	1"	Machine Half Loop	16.82	0.56"	5 11/32"	9 Lbs./In.	0.08"	€21.02	3
A	020004000	1"	Full Twist Loops	6.50	0.5"	9.88"	1.71 Lbs./In.	0.06"	€19.15	3
A	020102000	1"	Machine Half Loop	27.00	1.38"	13 21/32"	15 Lbs./In.	0.18"	€105.22	6
A	020019000	1"	Full Twist Loops	3.25	0.38"	3 11/64"	1.76 Lbs./In.	0.04"	€19.52	6
A	020029000	1"	Machine Half Loop	35.00	0.88"	5 21/32"	17.76 Lbs./In.	0.120"	€29.35	3
A	020033000	1"	Machine Half Loop	14.30	0.75"	2.5"	10.3 Lbs./In.	0.08"	€13.18	6
A	020009000	1.9"	Full Twist Loops	4.20	0.44"	6.437"	1.1 Lbs./In.	0.05"	€15.08	6
A	020024000	1.21"	Machine Half Loop	44.30	0.72"	3 51/64"	28.09 Lbs./In.	0.11"	€15.78	3
A	020026000	1.58"	Full Twist Loops	3.91	0.31"	4 59/64"	1.81 Lbs./In.	0.04"	€12.96	3
A	020002000	1.99"	Machine Half Loop	5.60	0.81"	9 55/64"	0.75 Lbs./In.	0.07"	€27.69	3
A	020012000	2"	Full Twist Loops	24.00	0.55"	5-15/32"	10 Lbs./In.	0.08"	€12.23	3
A	020031000	2"	Machine Half Loop	16.75	1"	8 3/64"	3.9 Lbs./In.	0.11"	€28.71	3
A	020022000	2.01"	Machine Half Loop	14.00	0.48"	4 25/64"	4.86 Lbs./In.	0.06"	€18.88	6
A	020103000	2.1"	Machine Half Loop	78.72	1.56"	15.593	16.06 Lbs./In.	0.21"	€49.29	6
A	020017000	2.27"	Full Twist Loops	1.68	0.25"	5 11/16"	0.43 Lbs./In.	0.03"	€26.29	12

APPROVED VENDOR -

Ultra Precision Extension Spring

Style	Model	Deflection @ Load	Load (lbs.)	Material	Outside Dia.	Overall Length	Spring Rate	Wire Dia.	Price (ex. VAT)	Pkg. Qty.
A	1NAT2	0.2"	5.82	High Carbon Steel	0.18"	5/8"	26.5 Lbs./In.	0.029"	€7.48	3
A	1NBF4	0.2"	5.06	302 Stainless Steel	0.18"	5/8"	23.03 Lbs./In.	0.029"	€9.05	3
A	1NBK1	0.4"	18.52	302 Stainless Steel	0.3"	1.5"	41.63 Lbs./In.	0.055"	€9.12	3
A	1NAW8	0.4"	21.31	High Carbon Steel	0.3"	1.5"	47.9 Lbs./In.	0.055"	€7.48	3
A	1NBJ7	0.5"	15.29	302 Stainless Steel	0.36"	1.375"	27.89 Lbs./In.	0.055"	€9.26	3
A	1NAW5	0.5"	17.6	High Carbon Steel	0.36"	1.375"	32.1 Lbs./In.	0.055"	€7.48	3
A	1NBK9	0.6"	18.52	302 Stainless Steel	0.3"	2"	27.98 Lbs./In.	0.055"	€9.26	3

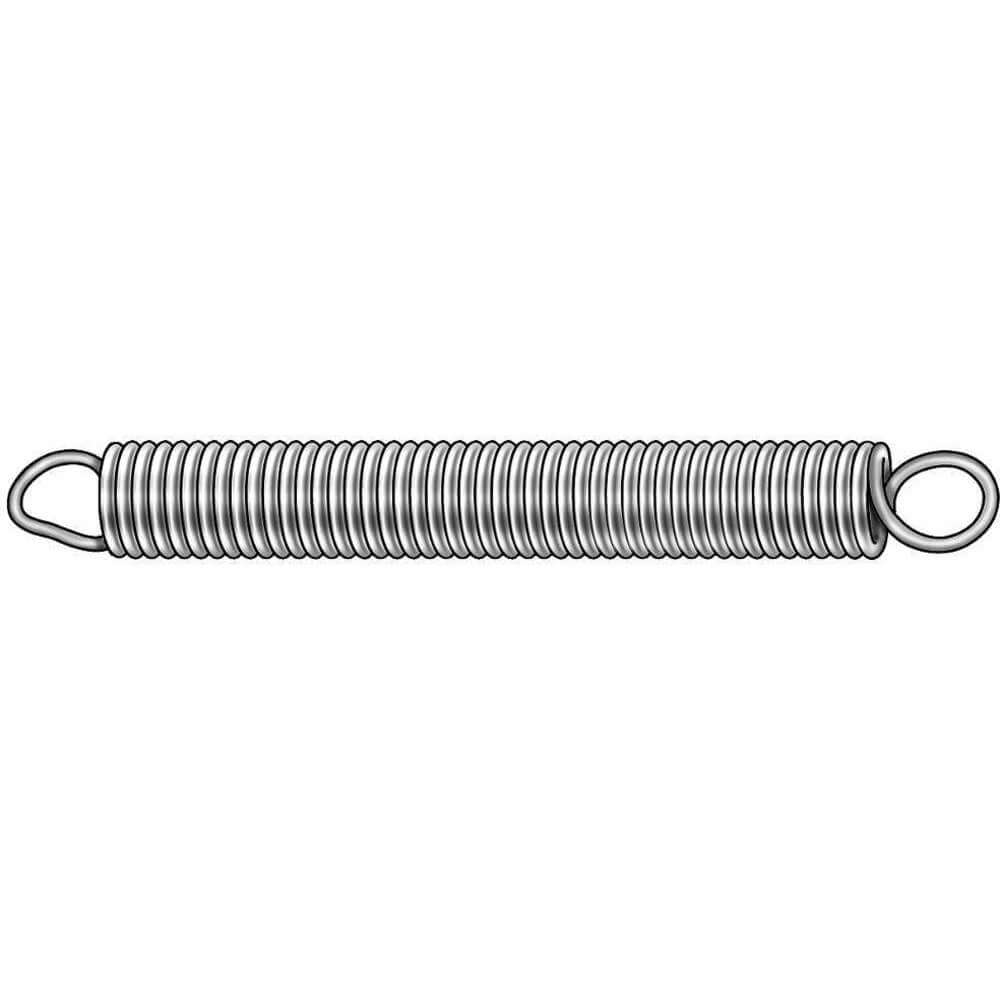

A	1NAX7	0.6"	21.31	High Carbon Steel	0.3"	2"	32.2 Lbs./In.	0.055"	€7.48	3
A	1NAZ4	0.7"	21.31	High Carbon Steel	0.3"	2.25"	27.7 Lbs./In.	0.055"	€7.31	3
A	1NBH9	0.7"	6.26	302 Stainless Steel	0.3"	1.125"	8.17 Lbs./In.	0.037"	€9.05	3
A	1NBL5	0.7"	18.52	302 Stainless Steel	0.3"	2.25"	24.07 Lbs./In.	0.055"	€9.05	3
A	1NAV7	0.7"	7.2	High Carbon Steel	0.3"	1.125"	9.4 Lbs./In.	0.037"	€7.42	3
A	1NAZ7	0.8"	21.31	High Carbon Steel	0.3"	2.5"	24.3 Lbs./In.	0.055"	€7.31	3
A	1NBL8	0.8"	18.52	302 Stainless Steel	0.3"	2.5"	21.12 Lbs./In.	0.055"	€9.05	3
A	1NAU4	0.12"	10.2	High Carbon Steel	0.36"	3/4"	76.5 Lbs./In.	0.045"	€7.31	3
A	1NBG6	0.12"	8.86	302 Stainless Steel	0.36"	3/4"	66.48 Lbs./In.	0.045"	€9.05	3
A	1NBF7	0.15"	7.56	302 Stainless Steel	0.24"	5/8"	47.53 Lbs./In.	0.037"	€9.06	3
A	1NAT5	0.15"	8.7	High Carbon Steel	0.24"	5/8"	54.7 Lbs./In.	0.037"	€7.48	3
A	1NAR8	0.23"	2.6	High Carbon Steel	0.18"	1/2"	10.5 Lbs./In.	0.022"	€7.31	3
A	1NBF1	0.23"	2.26	302 Stainless Steel	0.18"	1/2"	9.12 Lbs./In.	0.022"	€9.15	3
A	1NBF6	0.25"	3.91	302 Stainless Steel	0.24"	5/8"	14.34 Lbs./In.	0.029"	€9.26	3
A	1NAT4	0.25"	4.5	High Carbon Steel	0.24"	5/8"	16.5 Lbs./In.	0.029"	€7.48	3
A	1NBG5	0.26"	6.26	302 Stainless Steel	0.3"	3/4"	22.07 Lbs./In.	0.037"	€9.05	3
A	1NAU3	0.26"	7.2	High Carbon Steel	0.3"	3/4"	25.4 Lbs./In.	0.037"	€7.48	3
A	1NBG1	0.28"	5	302 Stainless Steel	0.18"	3/4"	16 Lbs./In.	0.029"	€9.12	3

ASSOCIATED SPRING RAYMOND -

Style	Model	Deflection @ Load	Finish	Load (lbs.)	Material	Outside Dia.	Overall Length	Spring Rate	Wire Dia.	Price (ex. VAT)	Pkg. Qty.
A	020039000	0.15"	Plain	2.61	Brass	0.3"	1 3/64"	7.8 Lbs./In.	0.04"	€20.00	12
A	020113000	1"	Oil	92.42	Standard Steel	0.63"	3 49/64"	68.4 Lbs./In.	0.11"	€36.68	3

Extension Spring, Rubbermaid Commercial Products Spring, 3.5 X 2 X 1.25 Inch Size

Model	Item	Price (ex. VAT)	Pkg. Qty.
GRFG6127L40000	CT9FBF	€8.43
1

HONEYWELL -

Range Conversion Spring Kit

Model	Item	Price (ex. VAT)	Pkg. Qty.
14004210-001	CJ3CRC	€101.80
1

GAST -

Foam And Spring Kit

Model	Item	Price (ex. VAT)	Pkg. Qty.
K827	CJ2FUK	€233.04
1

SIGNODE -

Extension Spring

Model	Item	Price (ex. VAT)	Pkg. Qty.
009171	CJ2DJC	€5.42
1

APPROVED VENDOR -

Extension Spring Gate 1.035 x 16 1/2 L

Model	Item	Price (ex. VAT)	Pkg. Qty.
3HPU1	AC9NJD	€14.12
1

GRAINGER -

Extension Spring Carbon Steel 6 Inch Length PK3

Model	Item	Price (ex. VAT)	Pkg. Qty.
V18C	AH8DNR	€24.90
3

Extension Springs

We offer an extensive collection of high-quality extension springs from popular brands such as Associated Spring Raymond and Grainger. These heavy-duty springs are designed for applications in doors, exercise equipment, Vise-Grip pliers, trampolines, washing devices and medical equipment. They feature steel or brass construction and have a maximum load capacity of 365.97 lb. These extension springs have spring rate of up to 92.3 lb per inch and are available in different overall lengths, outside diameters, end types and finish options.

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Extension Springs

Spring Kits

Extension Spring Cot

Extension Springs

Extension Springs

Extension Spring Utility

Extension Springs

Spring Kits

Extension Springs

Extension Springs

Spring Kits

Extension Springs

Extension Spring, Steel

Ultra Precision Extension Spring

Extension Spring Utility

Extension Spring, Rubbermaid Commercial Products Spring, 3.5 X 2 X 1.25 Inch Size

Range Conversion Spring Kit

Foam And Spring Kit

Extension Spring

Extension Spring Gate 1.035 x 16 1/2 L

Extension Spring Carbon Steel 6 Inch Length PK3

Extension Springs

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Extension Springs

Extension Spring, Rubbermaid Commercial Products Spring, 3.5 X 2 X 1.25 Inch Size

Range Conversion Spring Kit

Foam And Spring Kit

Extension Spring

Extension Spring Gate 1.035 x 16 1/2 L

Extension Spring Carbon Steel 6 Inch Length PK3

Extension Springs

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More
