Flared Tube Fittings

Filter

PARKER -

Male Connector, Brass, Flared
Parker flare fittings are best suited for controlling high-pressure liquids and gases in refrigerant and propane lines, compressors, oil burners, adapters and natural gas supply facilities. These fuel line flares feature brass construction for withstanding pressures and temperatures up to 2800 PSI and 250 degrees F and further come equipped with a fluorocarbon O-ring for leakage proof operation. Choose from a wide range of these flare unions available in inverted and 45-degree flare variants on Raptor Supplies.

Style	Model	Body Material	Connection Type	Flare Thread Size	Flare Type	Hex Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	481FHD-6-6	Brass	Flare x MNPS	5/8-18	Inverted	3/4"	1000 psi	3/8"	3/8"	€78.76	10
B	48F-6-12	Brass	Flare x MNPT	5/8-18	45 Degrees	1-1/16"	450 to 2800 psi	3/4"	3/8"	€159.86	10
A	481FHD-6-4	Brass	Flare x MNPS	5/8-18	Inverted	3/4"	1000 psi	1/4"	3/8"	€71.51	10
A	481FHD-5-4	Brass	Flare x MNPS	1/2-20	Inverted	19/32"	1200 psi	1/4"	5/16"	€51.91	10
A	481FHD-4-2	Brass	Flare x MNPS	7/16-24	Inverted	17/32"	1400 psi	1/8"	1/4"	€27.58	10
B	48F-4-4	Brass	Flare x MNPT	7/16-20	45 Degrees	-	1400 psi	1/4"	1/4"	€24.76	10
B	48F-4-2	Brass	Flare x MNPT	7/16-20	45 Degrees	-	1400 psi	1/8"	1/4"	€16.69	10
A	481FHD-8-6	Brass	Flare x MNPS	3/4-18	Inverted	29/32"	750 psi	3/8"	1/2"	€108.89	10
B	48F-8-8	Brass	Flare x MNPT	3/4-16	45 Degrees	-	750 psi	1/2"	1/2"	€67.15	10
B	48F-8-4	Brass	Flare x MNPT	3/4-16	45 Degrees	3/4"	450 to 2800 psi	1/4"	1/2"	€67.51	10
B	48F-6-2	Brass	Flare x MNPT	5/8-18	45 Degrees	5/8"	450 to 2800 psi	1/8"	3/8"	€44.64	10
B	48F-5-6	Brass	Flare x MNPT	1/2-20	45 Degrees	11/16"	450 to 2800 psi	3/8"	5/16"	€86.02	10
B	48F-10-4	Brass	Flare x MNPT	7/8-14	45 Degrees	7/8"	450 to 2800 psi	1/4"	5/8"	€144.46	10
A	481FHD-3-2	Brass	Flare x MNPS	3/8-24	Inverted	15/32"	1900 psi	1/8"	3/16"	€37.01	10
B	48F-10-8	Brass	Flare x MNPT	7/8-14	45 Degrees	-	650 psi	1/2"	5/8"	€67.15	10
B	48F-8-12	Brass	Flare x MNPT	3/4-16	45 Degrees	1-1/16"	450 to 2800 psi	3/4"	1/2"	€121.60	10
B	48F-5-4	Brass	Flare x MNPT	1/2-20	45 Degrees	9/16"	450 to 2800 psi	1/4"	5/16"	€37.75	10
B	48F-10-12	Brass	Flare x MNPT	7/8-14	45 Degrees	7/8"	450 to 2800 psi	3/4"	5/8"	€130.31	10
B	48F-6-4	Brass	Flare x MNPT	5/8-18	45 Degrees	-	1000 psi	1/4"	3/8"	€31.58	10
B	48F-10-6	Brass	Flare x MNPT	7/8-14	45 Degrees	7/8"	450 to 2800 psi	3/8"	5/8"	€88.93	10
B	48F-12-12	Brass	Flare x MNPT	1-1/16-14	45 Degrees	1-1/16"	450 to 2800 psi	3/4"	3/4"	€150.27	10
B	48F-12-8	Brass	Flare x MNPT	1-1/16-14	45 Degrees	1-1/16"	450 to 2800 psi	1/2"	3/4"	€174.95	10
B	48F-3-2	Brass	Flare x MNPT	3/8-24	45 Degrees	7/16"	450 to 2800 psi	1/8"	3/16"	€25.40	10
B	48F-3-4	Brass	Flare x MNPT	3/8-24	45 Degrees	9/16"	450 to 2800 psi	1/4"	3/16"	€73.69	10
B	48F-4-8	Brass	Flare x MNPT	7/16-20	45 Degrees	7/8"	450 to 2800 psi	1/2"	1/4"	€105.98	10

PARKER -

Style	Model	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	3GF-10	650 psi	5/8"	€41.38	10
A	3GF-8	750 psi	1/2"	€22.49	10
A	3GF-6	1000 psi	3/8"	€25.47	10
A	3GF-5	1200 psi	5/16"	€26.23	10
A	3GF-4	1400 psi	1/4"	€16.04	10

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)
A	704042-08	3/4-16	3/4"	750 psi	1/2"	€11.95
A	704042-06	5/8-18	5/8"	1000 psi	3/8"	€7.84
A	704042-04	7/16-20	7/16"	1400 psi	1/4"	€3.63

Male Connector, Flare x MNPT, Low Lead Brass

ANDERSON METALS CORP. PRODUCTS 704048-0808

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)
A	704048-0808	3/4-16	3/4"	750 psi	1/2"	1/2"	€11.43
A	704048-0608	3/4-16	5/8"	1000 psi	1/2"	3/8"	€10.78
A	704048-0806	3/4-16	3/4"	750 psi	3/8"	1/2"	€9.69
A	704048-0604	5/8-18	5/8"	1000 psi	1/4"	3/8"	€6.50
A	704048-0606	5/8-18	5/8"	1000 psi	3/8"	3/8"	€7.51
A	704048-1008	7/8-14	7/8"	650 psi	1/2"	5/8"	€12.71
A	704048-0406	7/16-20	7/16"	1000 psi	3/8"	1/4"	€9.88
A	704048-0404	7/16-20	7/16"	1000 psi	1/4"	1/4"	€4.32
A	704048-0402	7/16-20	7/16"	1000 psi	1/8"	1/4"	€3.27

PARKER -

Style	Model	Flare Thread Size	Hex Size	Pipe Size	Tube Size	Price (ex. VAT)

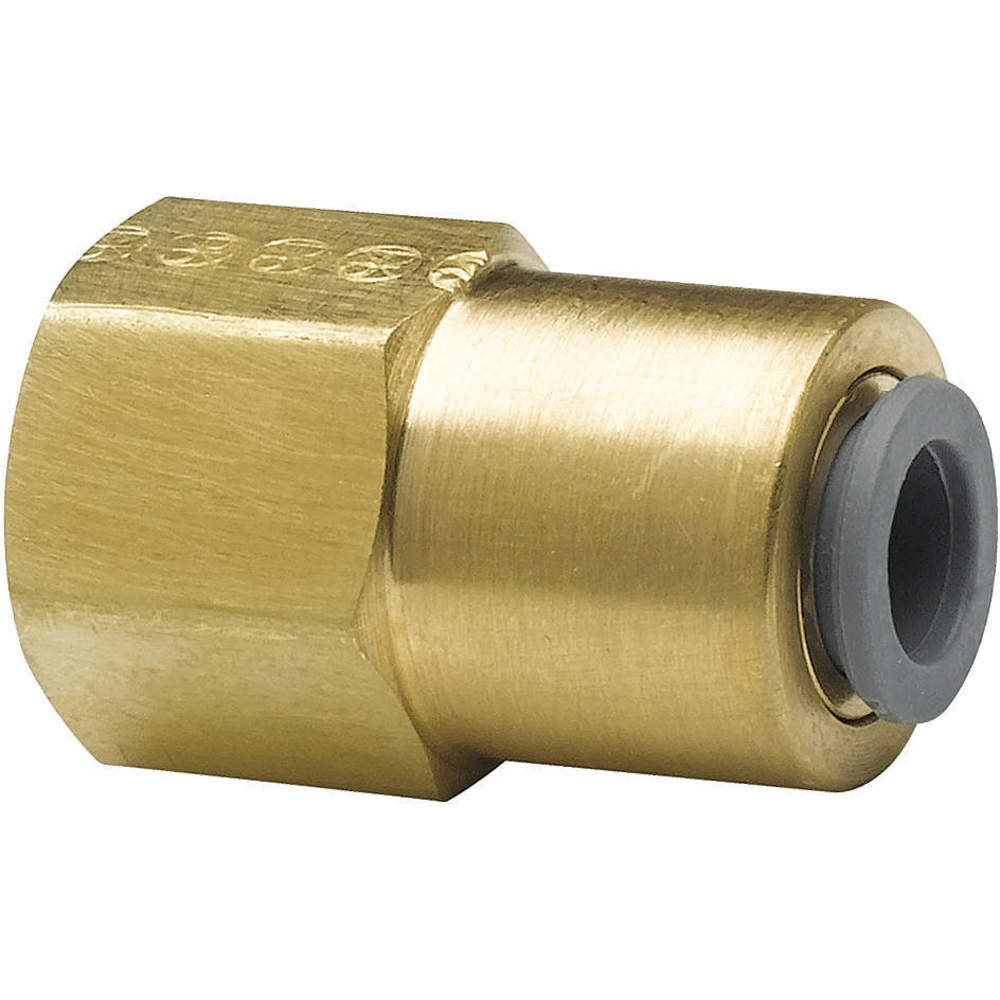

A	L66PLNF-6-6	5/8-18	13/16"	5/18-18	3/8"	€33.94
A	L66PLNF-4-4	7/16-20	11/16"	7/16-20	1/4"	€18.11
A	L66PLNF-6-4	7/16-20	11/16"	7/16-20	3/8"	€29.76

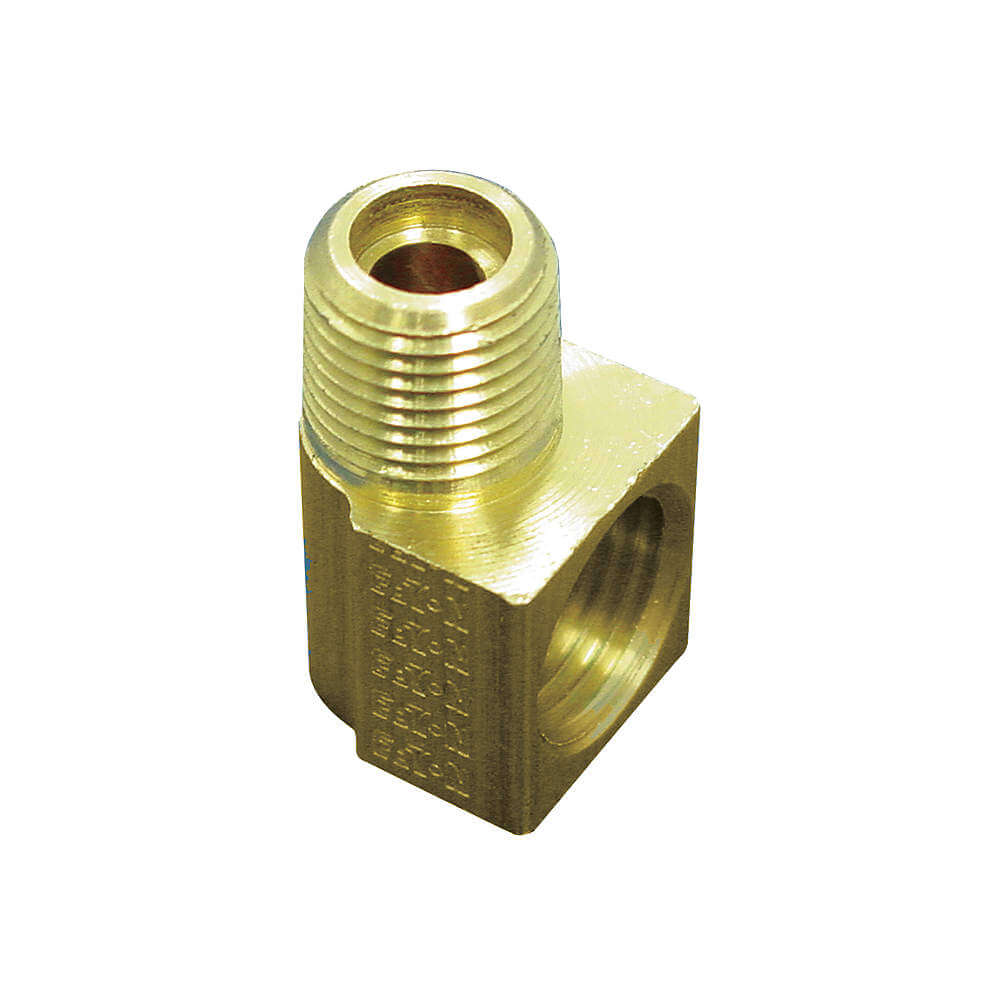

Style	Model	Pipe Size	Tube Size	Price (ex. VAT)
A	402X8X8	1/2"	1/2"	€48.71
A	402X6	1/4"	3/8"	€8.46
A	402X5X4	1/4"	5/16"	€12.60
A	402X4X4	1/4"	1/4"	€7.22
A	402X6X2	1/8"	3/8"	€9.36
A	402X4	1/8"	1/4"	€4.90
A	402X5	1/8"	5/16"	€5.80
A	402X6X6	3/8"	3/8"	€17.61

Style	Model	Flare Thread Size	Hex Size	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	42F-8-6	5/8-18	3/4"	3/4-16"	1/2" x 3/8"	€95.46	10
A	42F-6-5	5/8-18 x 1/2-20	5/8"	5/8-18"	3/8" x 5/16"	€90.38	10
A	42F-6-4	5/8-18 x 7/16-20	5/8"	5/8-18"	3/8" x 1/4"	€66.42	10
A	42F-10-8	7/8-14 x 3/4-16	7/8"	7/8-14"	5/8" x 1/2"	€133.57	10
A	42F-8-4	7/16-20	3/4"	3/4-16"	1/2" x 1/4"	€110.34	10

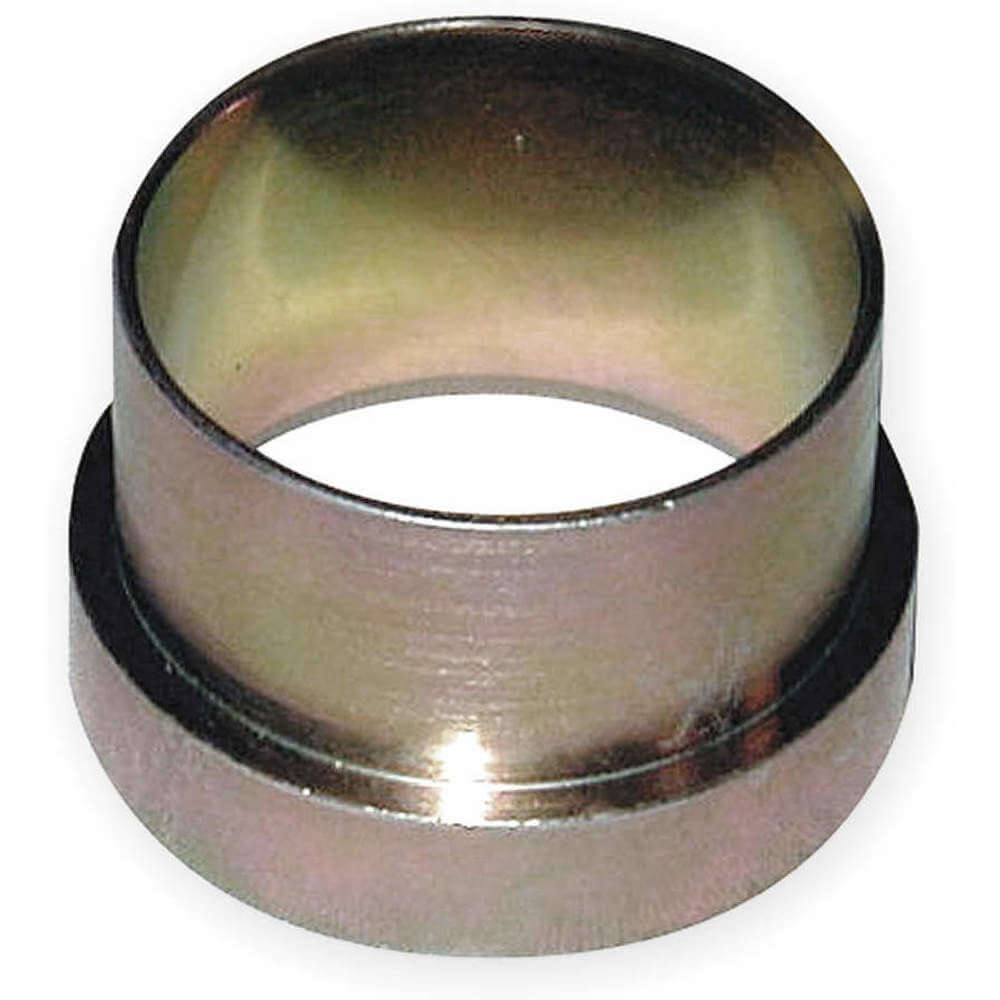

Style	Model	Flare Thread Size	Max. Pressure	Tube Size	Price (ex. VAT)
A	0319-12SS	1-1/16-12	4800 psi	3/4"	€19.38
A	0319-16SS	1-5/16-12	3500 psi	1"	€35.42
A	0319-05SS	1/2-20	6000 psi	5/16"	€7.92
A	0319-08SS	3/4-16	6000 psi	1/2"	€9.93
A	0319-10SS	7/8-14	5000 psi	5/8"	€13.59
A	0319-04SS	7/16-20	6000 psi	1/4"	€5.55
A	0319-06SS	9/16-18	6000 psi	3/8"	€5.65

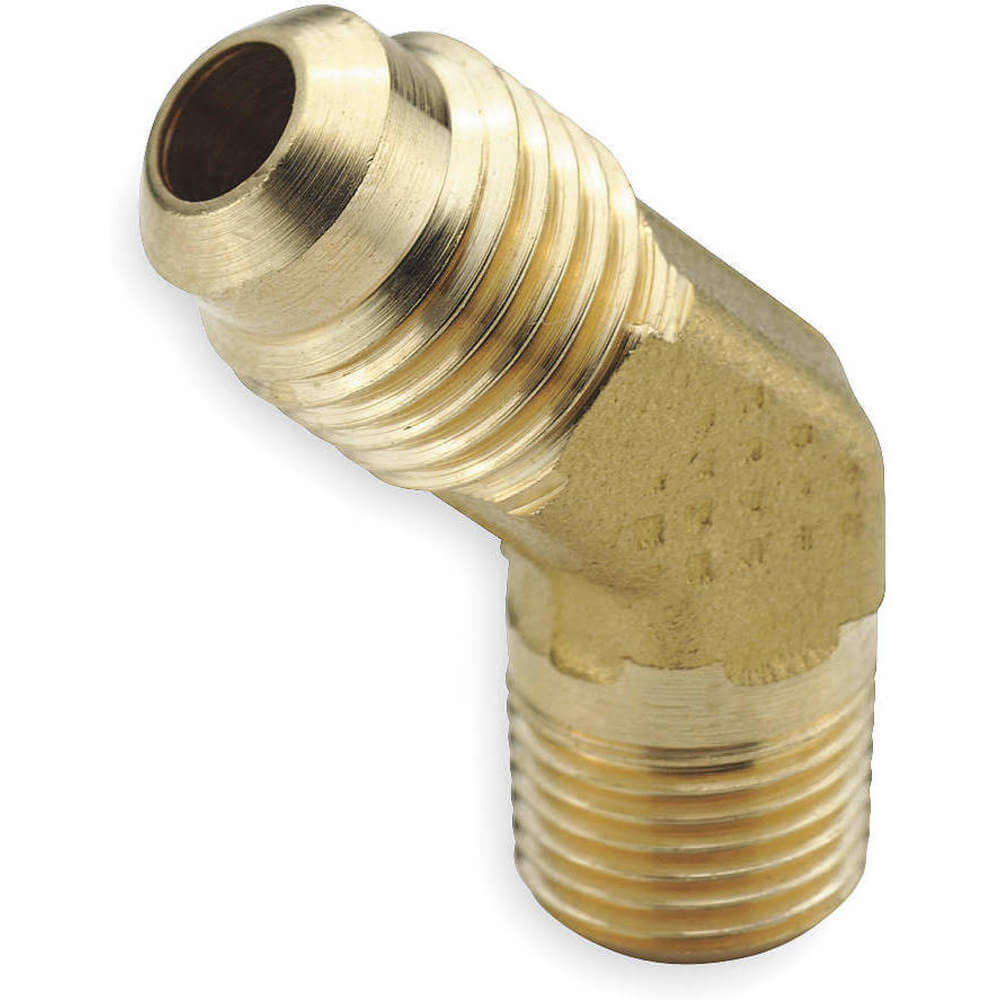

Male Elbow, 45 Degrees, Flare, Brass

Style	Model	Connection Type	Flare Thread Size	Flare Type	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.

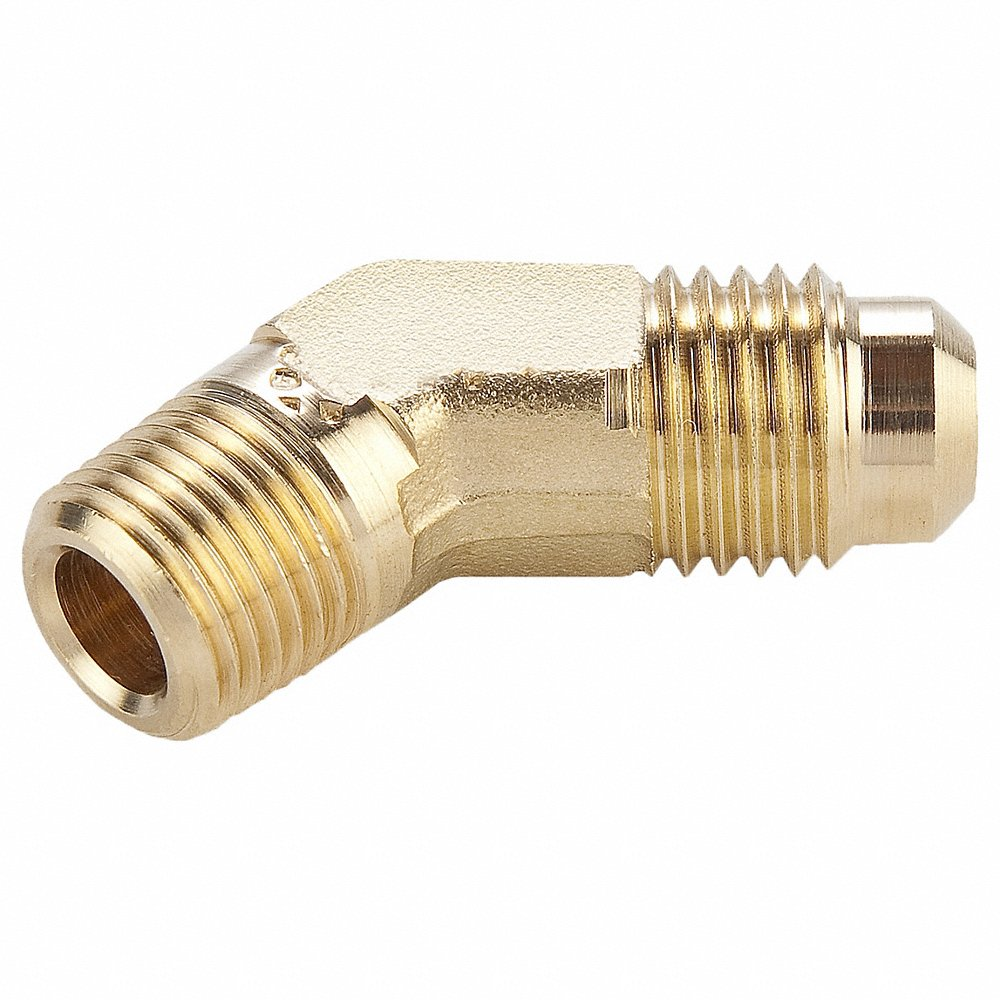

A	159F-8-6	Flare x FNPT	3/4-16	45 Degrees	450 to 2800 psi	3/8"	1/2"	€85.66	10
A	159F-4-4	Flare x FNPT	7/16-20	45 Degrees	450 to 2800 psi	1/4"	1/4"	€161.34	10
A	159F-8-8	Flare x FNPT	3/4-16	45 Degrees	450 to 2800 psi	1/2"	1/2"	€158.62	10

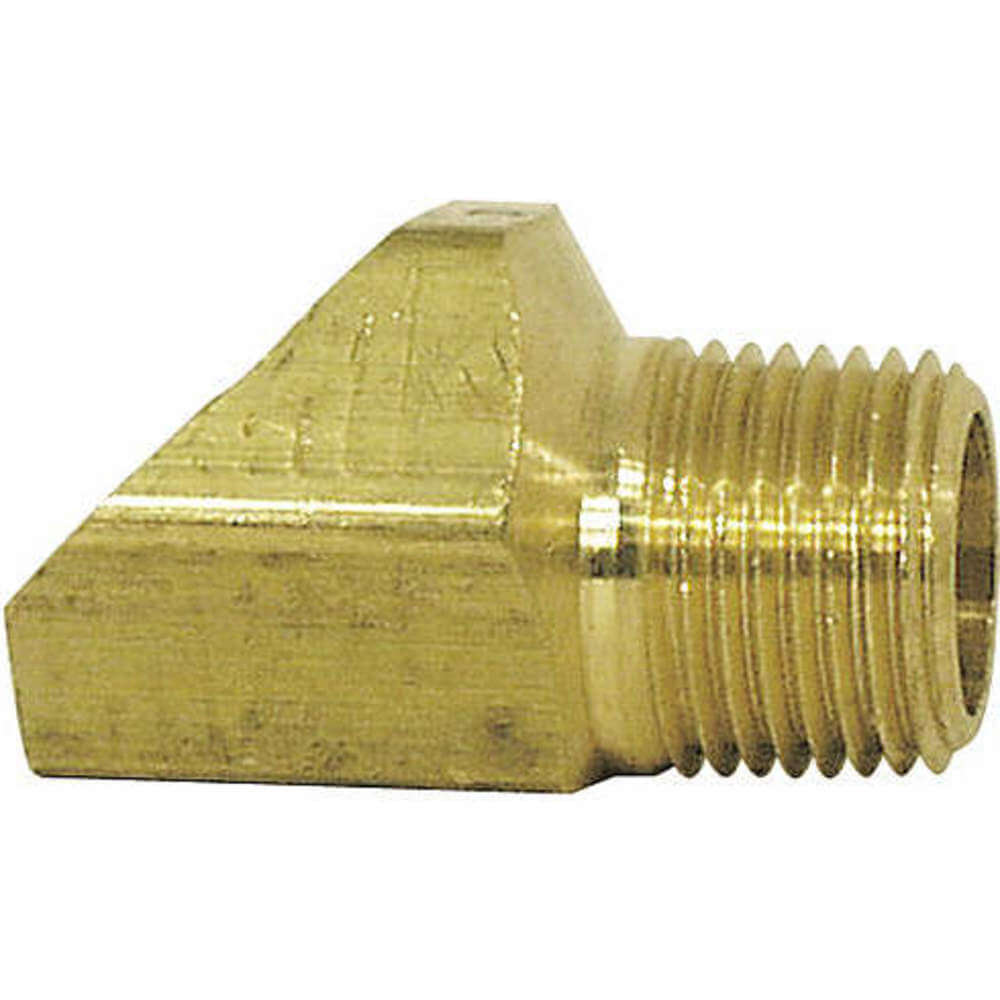

B	2591FHD-3-2	Flare x MNPS	3/8-24	Inverted	1900 psi	1/8"	3/16"	€292.55	10
B	2591FHD-4-2	Flare x MNPS	7/16-24	Inverted	1400 psi	1/8"	1/4"	€235.93	10
B	2591FHD-6-4	Flare x MNPS	5/8-18	Inverted	1000 psi	1/4"	3/8"	€252.26	10
A	159F-10-8	Flare x MNPT	7/8-14	45 Degrees	450 to 2800 psi	1/2"	5/8"	€155.35	10
A	159F-10-6	Flare x MNPT	7/8-14	45 Degrees	650 psi	3/8"	5/8"	€207.62	10

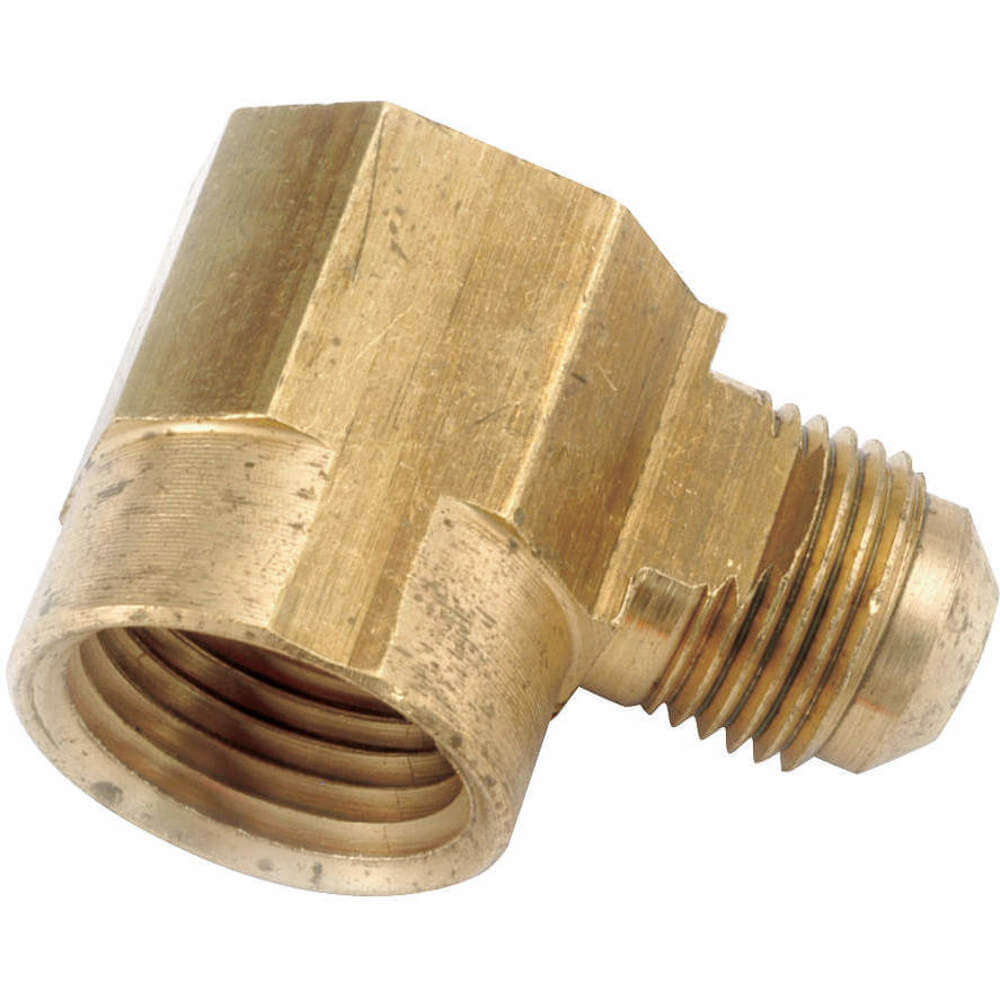

ANDERSON METALS CORP. PRODUCTS -

Style	Model	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)
A	704050-1012	650 psi	3/4"	5/8"	€32.56
A	704050-1008	650 psi	1/2"	5/8"	€35.72
A	704050-0812	750 psi	3/4"	1/2"	€27.22

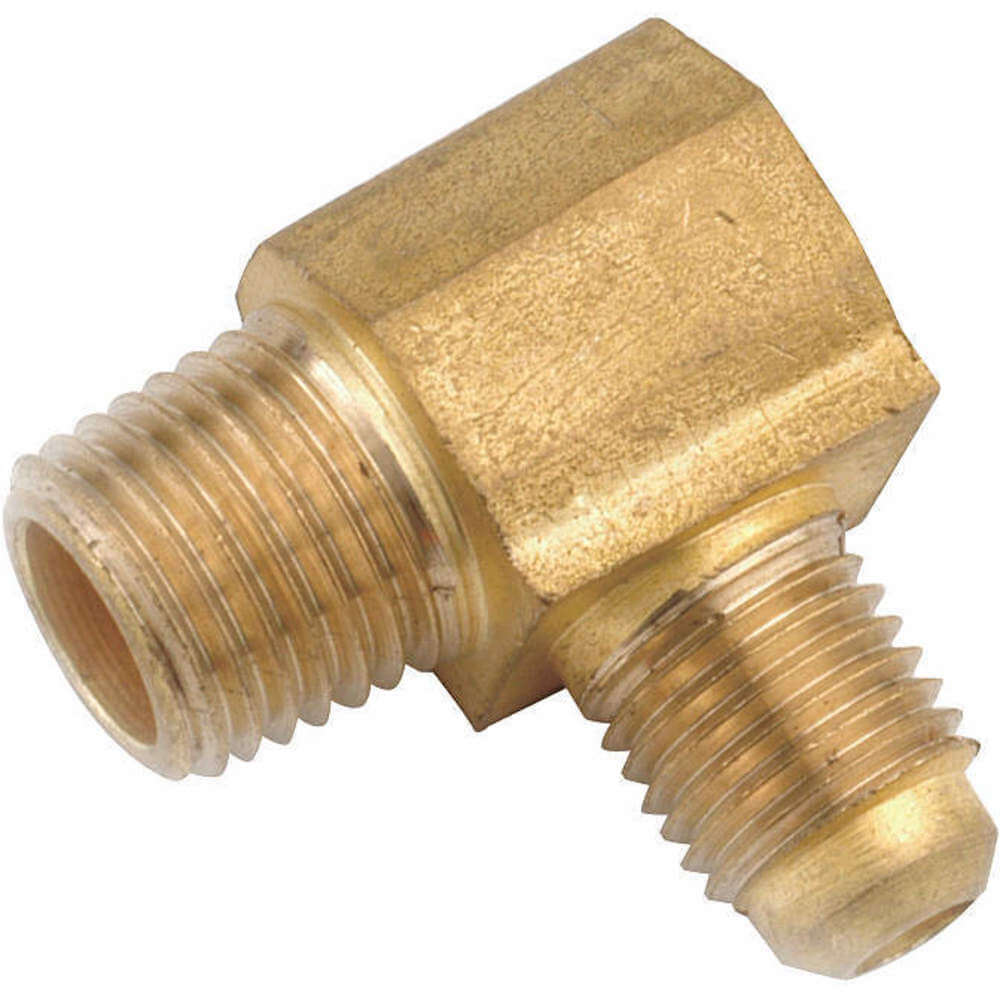

B	704049-0408	1000 psi	1/2"	1/4"	€22.35
A	704050-0612	1000 psi	3/4"	3/8"	€29.98

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)
A	704014-08	3/4-16	7/8"	750 psi	1/2"	€6.67
A	704014-06	5/8-18	3/4"	1000 psi	3/8"	€4.87
A	704014-04	7/16-20	9/16"	1400 psi	1/4"	€2.83

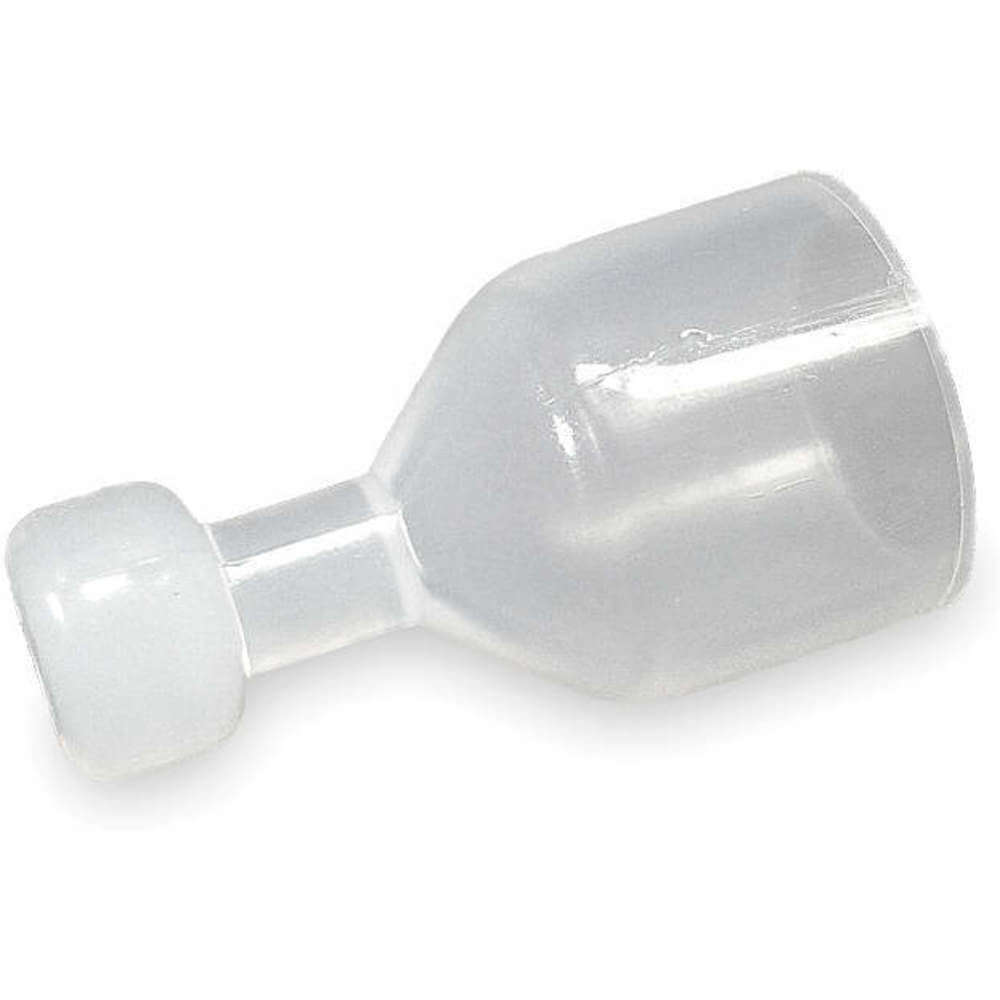

Flare Cap
Parker fitting caps are generally used for protecting the ends of pipes and other fittings. These caps are designed from high quality PFA that provides clean operation and can be disassembled & reassembled repeatedly. Offered in tube sizes of 3/8, 1/2, 3/4 and1/4 inches, these fittings are used with flare brass, copper, aluminium and welded steel hydraulic tubings. Applications of these caps include thin-wall tubing in refrigeration equipment, air compressor systems and machinery.

Style	Model	Tube Size	Price (ex. VAT)
A	FCAP-8	1/2"	€31.59
A	FCAP-4	1/4"	€26.21
A	FCAP-12	3/4"	€36.28
A	FCAP-6	3/8"	€28.04

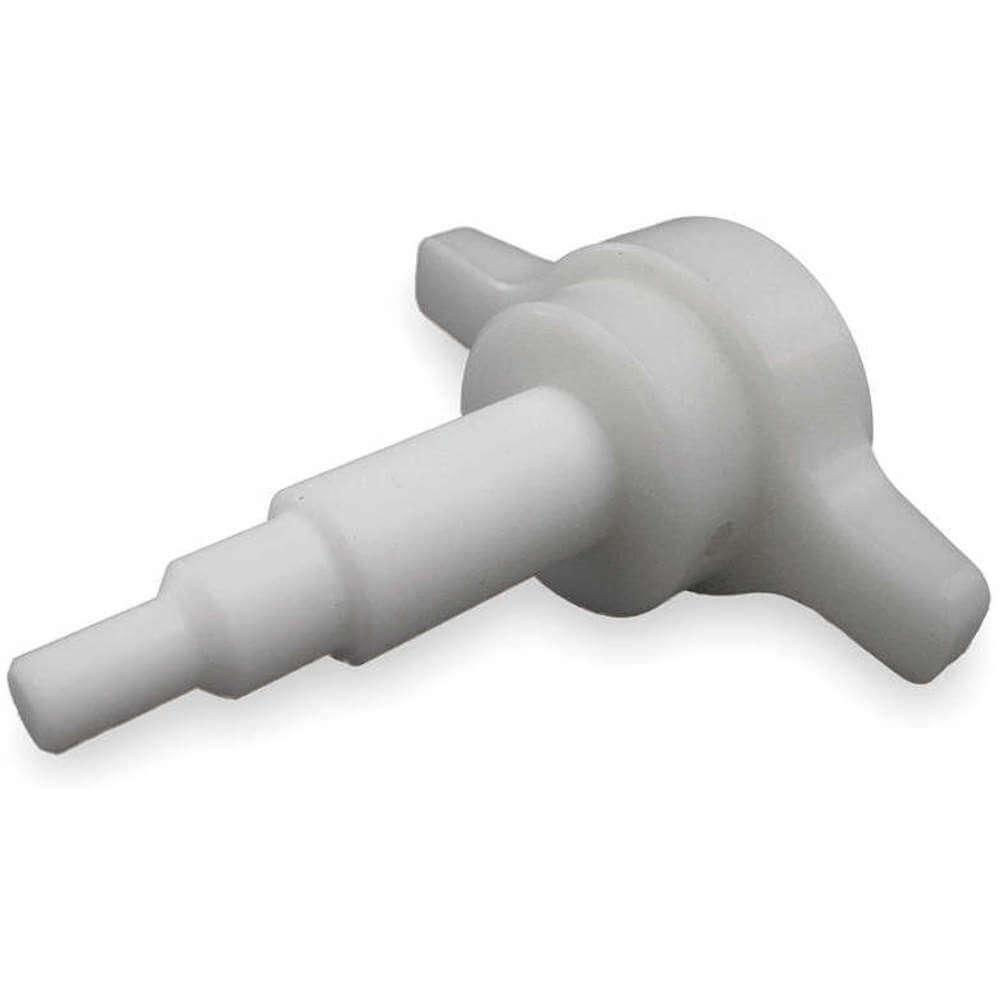

PARKER -

Style	Model	Tube Size	Price (ex. VAT)
A	MFT-08	1/2"	€345.49
A	MFT-04	1/4"	€285.01
A	MFT-12	3/4"	€395.76
A	MFT-06	3/8"	€320.98

Female Elbow, 90 Degrees, Flare, Brass

Style	Model	Flare Thread Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.

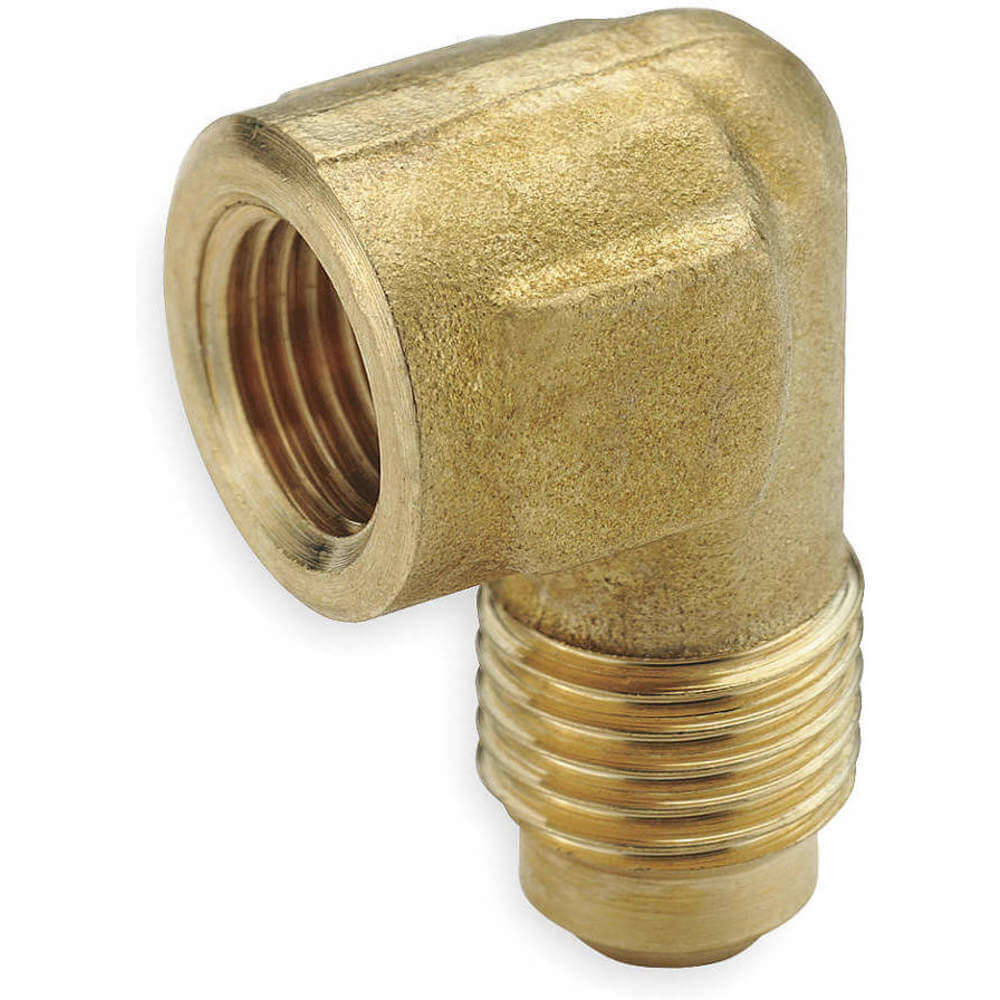

A	150F-5-4	1/2-20	450 to 2800 psi	1/4"	5/16"	€158.98	10
A	150F-8-8	3/4-16	750 psi	1/2"	1/2"	€125.58	10
A	150F-8-6	3/4-16	750 psi	3/8"	1/2"	€124.49	10
A	150F-6-4	5/8-18	450 to 2800 psi	1/4"	3/8"	€100.91	10
A	150F-6-8	5/8-18	1000 psi	1/2"	3/8"	€229.03	10
A	150F-6-6	5/8-18	1000 psi	3/8"	3/8"	€113.60	10
A	150F-4-4	7/16-20	1400 psi	1/4"	1/4"	€97.27	10
A	150F-4-2	7/16-20	1400 psi	1/8"	1/4"	€40.65	10

PARKER -

Female Connector, Flare, Brass

Style	Model	Connection Type	Flare Thread Size	Flare Type	Hex Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	46F-3-2	Flare x FNPT	3/8-24	45 Degrees	9/16"	450 to 2800 psi	1/8"	3/16"	€63.51	10
A	46F-4-2	Flare x FNPT	7/16-20	45 Degrees	-	1400 psi	1/8"	1/4"	€25.04	10
A	46F-6-6	Flare x FNPT	5/8-18	45 Degrees	-	1000 psi	3/8"	3/8"	€66.06	10
A	46F-8-4	Flare x FNPT	3/4-16	45 Degrees	3/4"	450 to 2800 psi	1/4"	1/2"	€90.38	10
A	46F-5-4	Flare x FNPT	1/2-20	45 Degrees	11/16"	450 to 2800 psi	1/4"	5/16"	€74.77	10
A	46F-10-8	Flare x FNPT	7/8-14	45 Degrees	-	650 psi	1/2"	5/8"	€114.85	10
A	46F-6-4	Flare x FNPT	5/8-18	45 Degrees	-	1000 psi	1/4"	3/8"	€49.73	10
A	46F-6-2	Flare x FNPT	5/8-18	45 Degrees	5/8"	450 to 2800 psi	1/8"	3/8"	€82.40	10
A	46F-6-8	Flare x FNPT	5/8-18	45 Degrees	1"	450 to 2800 psi	1/2"	3/8"	€121.60	10
A	46F-5-2	Flare x FNPT	1/2-20	45 Degrees	9/16"	450 to 2800 psi	1/8"	5/16"	€64.60	10
A	46F-4-6	Flare x FNPT	7/16-20	45 Degrees	13/16"	450 to 2800 psi	3/8"	1/4"	€90.02	10
A	46F-4-4	Flare x FNPT	7/16-20	45 Degrees	11/16"	450 to 2800 psi	1/4"	1/4"	€50.82	10
A	46F-8-8	Flare x FNPT	3/4-16	45 Degrees	-	750 psi	1/2"	1/2"	€92.91	10
A	46F-8-6	Flare x FNPT	3/4-16	45 Degrees	-	750 psi	3/8"	1/2"	€70.05	10
A	46F-8-12	Flare x FNPT	3/4-16	45 Degrees	-	750 psi	3/4"	1/2"	€209.43	10
B	461FHD-6-4	Flare x MNPS	5/8-18	Inverted	3/4"	1000 psi	1/4"	3/8"	€143.00	10
B	461FHD-4-2	Flare x MNPS	7/16-24	Inverted	17/32"	1400 psi	1/8"	1/4"	€58.44	10

PARKER -

Brass Inverted Flare Fittings
Parker brass inverted flare fittings provide metal-to-metal seal for tighter tube bends. They feature all-brass construction and meets functional requirements of SAE J512. These fittings are suitable for superior pressure service and provide exceptional resistance to mechanical pull-out. Choose from a range of these flare fittings, available in 3/4, 15/32, 17/32, 19/32 and 29/32 inch hex sizes.

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	421FHD-5	1/2-20	19/32"	1200 psi	5/16"	€62.43	10
A	421FHD-8	3/4-18	29/32"	750 psi	1/2"	€203.26	10
A	421FHD-3	3/8-24	15/32"	1900 psi	3/16"	€42.33	10
A	421FHD-6	5/8-18	3/4"	1000 psi	3/8"	€91.11	10
A	421FHD-4	7/16-24	17/32"	1400 psi	1/4"	€43.91	10

ANDERSON METALS CORP. PRODUCTS -

Style	Model	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)
A	704046-1006	650 psi	3/8"	5/8"	€20.69

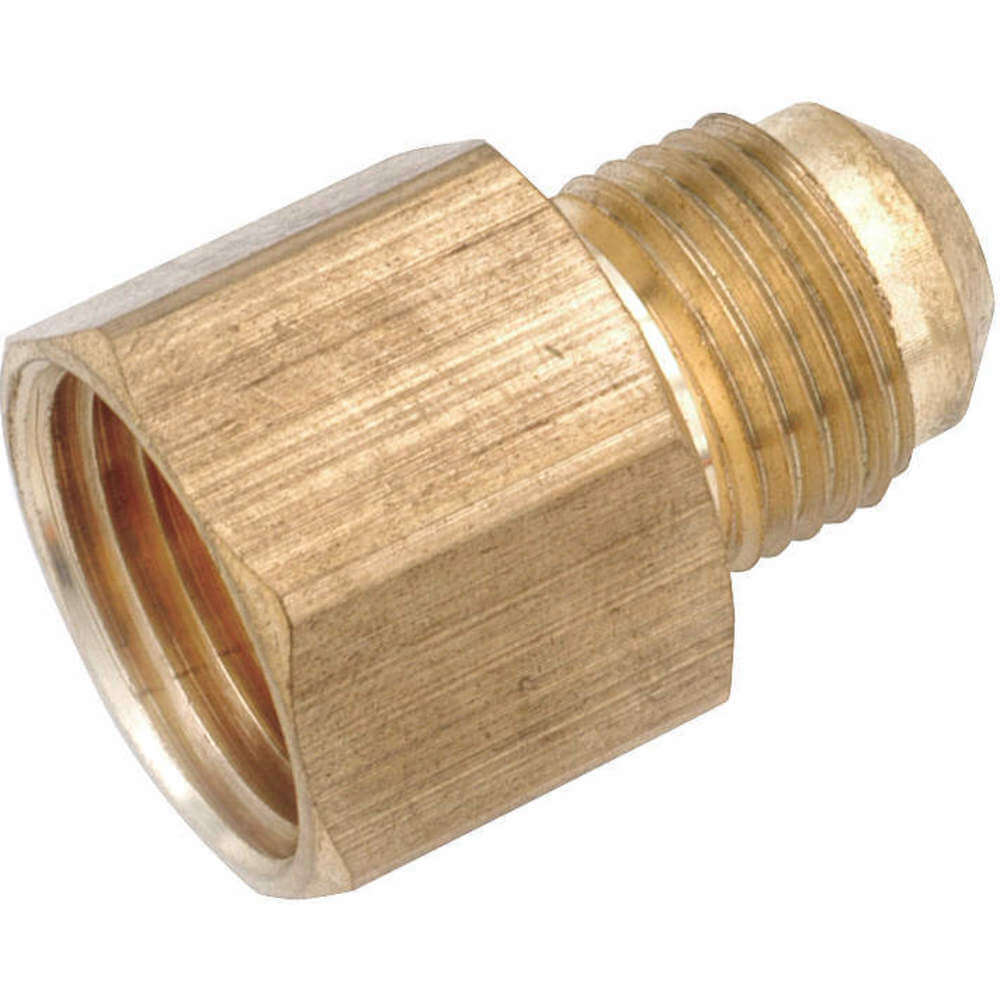

A	704046-1012	650 psi	3/4"	5/8"	€19.79

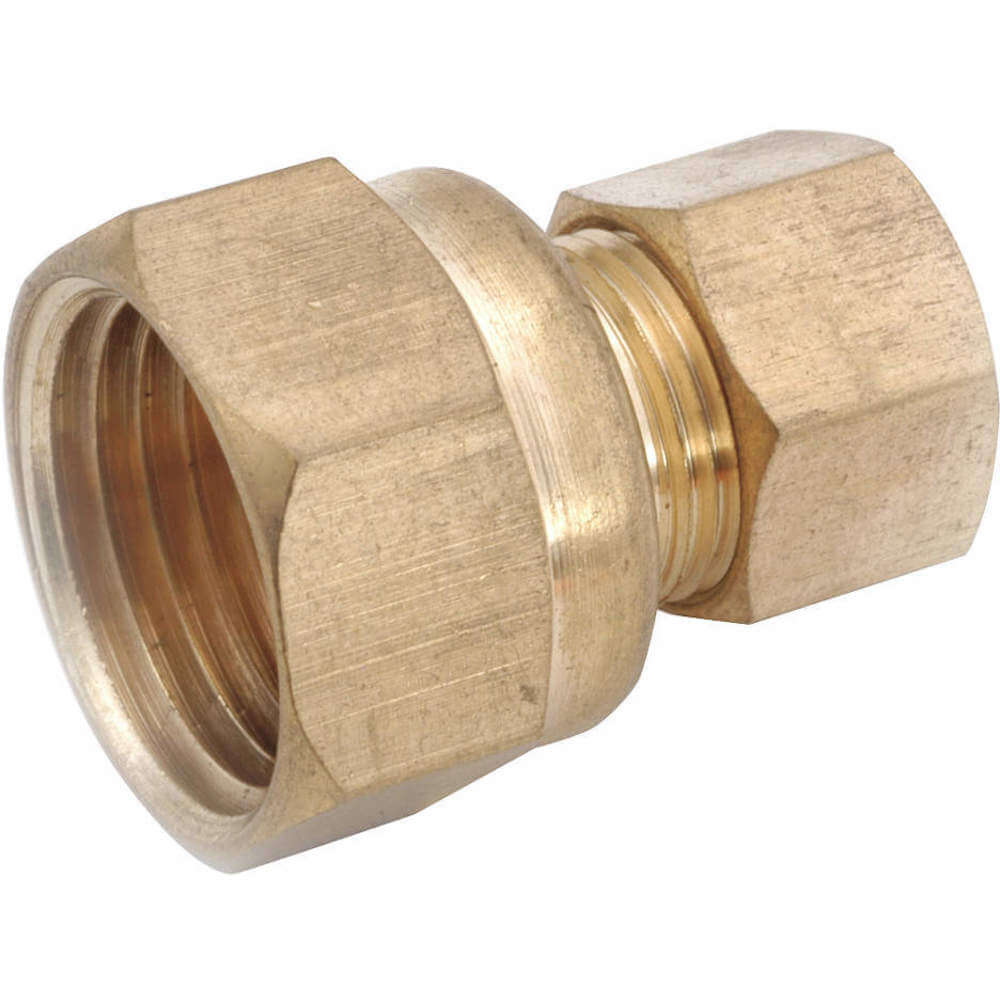

B	704822-0606	1000 psi	-	3/8"	€14.23
A	704046-0612	1000 psi	3/4"	3/8"	€17.67

Style	Model	Flare Thread Size	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	259F-6-4	1/4-18	1000 psi	1/4"	3/8"	€157.69	10
A	259F-4-4	1/4-18	1400 psi	1/4"	1/4"	€151.38	10
A	259F-4-2	1/8-27	1400 psi	1/8"	1/4"	€69.72	10

Male Elbow, 90 Degrees, Flare, Brass

Style	Model	Connection Type	Flare Thread Size	Flare Type	Max. Pressure	Pipe Size	Tube Size	Price (ex. VAT)	Pkg. Qty.
A	159F-6-4	Flare x FNPT	5/8-18	45 Degrees	450 to 2800 psi	1/4"	3/8"	€80.94	10
A	159F-6-6	Flare x FNPT	5/8-18	45 Degrees	450 to 2800 psi	3/8"	3/8"	€94.37	10
B	2491FHD-3-2	Flare x MNPS	3/8-24	Inverted	1900 psi	1/8"	3/16"	€53.00	10
B	2491FHD-5-4	Flare x MNPS	1/2-20	Inverted	1200 psi	1/4"	5/16"	€89.65	10
B	2491FHD-6-6	Flare x MNPS	5/8-18	Inverted	1000 psi	3/8"	3/8"	€151.36	10
B	2491FHD-5-2	Flare x MNPS	1/2-20	Inverted	1200 psi	1/8"	5/16"	€95.09	10
B	2491FHD-6-4	Flare x MNPS	5/8-18	Inverted	1000 psi	1/4"	3/8"	€108.89	10
B	2491FHD-10-8	Flare x MNPS	7/8-18	Inverted	650 psi	1/2"	5/8"	€301.26	10
B	2491FHD-4-4	Flare x MNPS	7/16-24	Inverted	1400 psi	1/4"	1/4"	€83.04	10
B	2491FHD-4-2	Flare x MNPS	7/16-24	Inverted	1400 psi	1/8"	1/4"	€60.98	10
C	149F-12-12	Flare x MNPT	11/16-14	45 Degrees	450 to 2800 psi	3/4"	3/4"	€296.18	10
C	149F-5-6	Flare x MNPT	1/2-20	45 Degrees	450 to 2800 psi	3/8"	5/16"	€154.98	10
C	149F-10-12	Flare x MNPT	7/8-14	45 Degrees	450 to 2800 psi	3/4"	5/8"	€182.93	10
C	149F-10-6	Flare x MNPT	7/8-14	45 Degrees	450 to 2800 psi	3/8"	5/8"	€155.35	10
C	149F-8-4	Flare x MNPT	3/4-16	45 Degrees	450 to 2800 psi	1/4"	1/2"	€121.75	10
C	149F-8-12	Flare x MNPT	3/4-16	45 Degrees	450 to 2800 psi	3/4"	1/2"	€170.96	10
C	149F-12-8	Flare x MNPT	11/16-14	45 Degrees	450 to 2800 psi	1/2"	3/4"	€247.91	10

GRAINGER -

Style	Model	Price (ex. VAT)	Pkg. Qty.
A	5ZVT1	€7.11	10
A	5ZVT0	€6.13	10

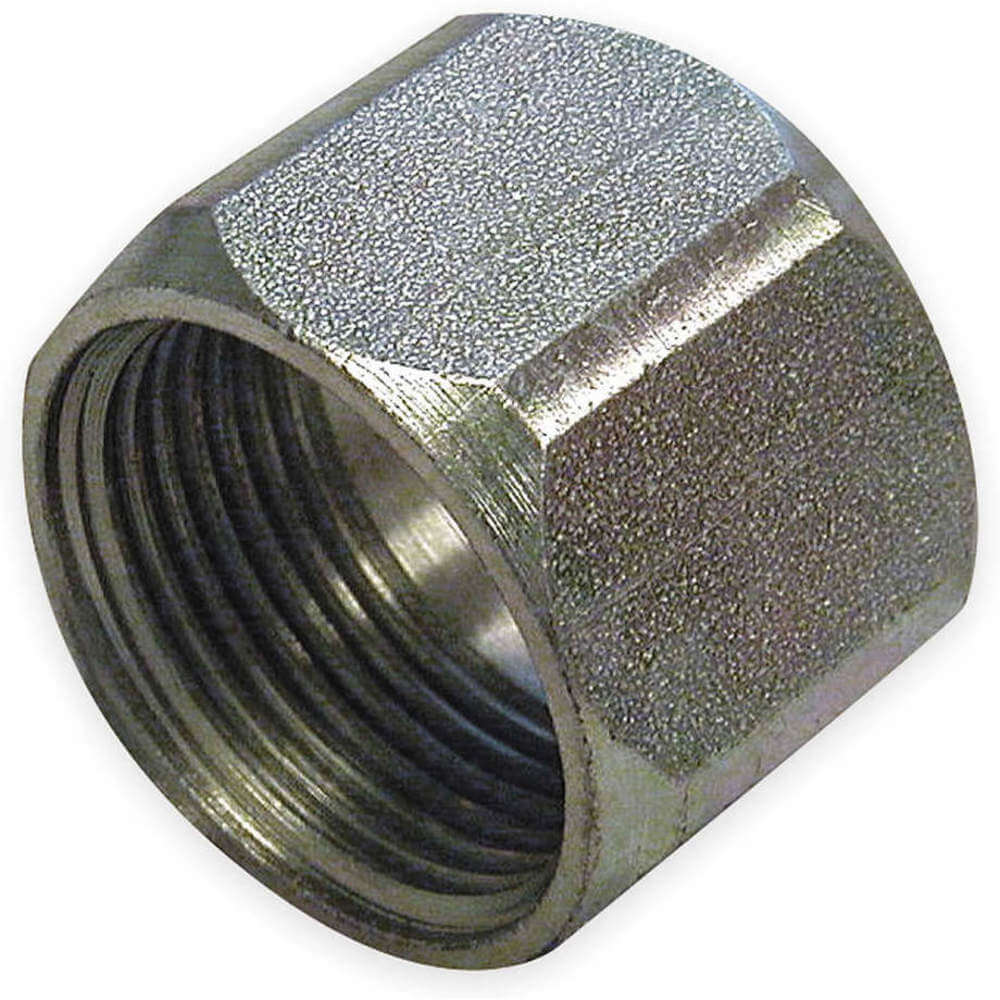

Style	Model	Flare Thread Size	Hex Size	Max. Pressure	Tube Size	Price (ex. VAT)
A	0318-12SS	1-1/16-12	1.25"	4800 psi	3/4"	€42.53
A	0318-16SS	1-5/16-12	1.5"	3500 psi	1"	€71.56
A	0318-05SS	1/2-20	5/8"	6000 psi	5/16"	€13.98
A	0318-08SS	3/4-16	7/8"	6000 psi	1/2"	€16.28
A	0318-10SS	7/8-14	1"	5000 psi	5/8"	€34.16
A	0318-04SS	7/16-20	9/16"	6000 psi	1/4"	€8.24
A	0318-06SS	9/16-18	11/16"	6000 psi	3/8"	€11.55

Flared Tube Fittings

Flared tube fittings provide leak-free connections for high-pressure gas and fluid applications. Raptor Supplies offers a wide range of flare fittings from Parker, Anderson Metals, Airway, Nibco and Weatherhead. Parker 145 Series male branch tees are designed for air compressors and refrigeration equipment. These male tees feature brass bodies ensuring high tensile strength and corrosion resistance. They are capable of being operated at temperatures ranging from -65 to 250 degrees F and can withstand pressure up to 2800 psi. Airway male connectors feature bodies made of 316 stainless steel for durability and resistance against acids & chlorides. These connectors are offered in Flare x MNPT or Flare x O-Ring Boss connections with the capability of withstanding temperature and pressure up to 1200 degrees F and 6000 psi, respectively.

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Flared Tube Fittings

Seal Bonnet

Male Union

Male Connector, Flare x MNPT, Low Lead Brass

Female Flare Connector

Elbow, 90 Degrees

Union Reducer, Flare, Brass

Tube Sleeve

Male Elbow, 45 Degrees, Flare, Brass

Male Elbows, Flared Tube

Short Nut

Manual Flaring Tool

Female Elbow, 90 Degrees, Flare, Brass

Female Connector, Flare, Brass

Female Couplings

Extruded Elbow, 45 Degrees

Male Elbow, 90 Degrees, Flare, Brass

Flared Tube Unions

Tube Nut

Flared Tube Fittings

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Flared Tube Fittings

Flared Tube Fittings

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More
