SIEMENS Molded Case Circuit Breakers

Siemens HHLD Series circuit breakers, with high interrupting capacity, are designed to protect the sensitive circuits from excessive current flows causing overloads or short circuits. These devices are calibrated at an ambient temperature of 40 degrees C and feature a thermal-magnetic trip to deliver long-time and instantaneous current limiting functions. They feature a bolt-on mounting design ensuring ease-of-installation and a secure wiring configuration. Choose from a wide variety of these circuit breakers available in current ratings ranging from 400 to 600A on Raptor Supplies.

Siemens ED4 Series circuit breakers protect electrical devices against overcurrent and short circuit conditions. They feature a thermal magnetic trip for providing both instantaneous & long time current limiting protection, bolt-on mounting facility for ease of installation and load side lugs accommodating copper or aluminium wires. These 2 / 3 pole units deliver interrupting capacities of 18kA@240V / 18kA@480V, respectively. These ED-frame circuit breakers are available in current ratings ranging between 20A & 125A on Raptor Supplies.

Siemens HRD Series circuit breakers are designed for reducing risks of damages caused by faulty currents and fatal electrical shocks. These units feature a non-interchangeable trip unit delivering both long time and instantaneous (LI) current limiting functionalities and feed-thru mounting facility for ease-of-installation in cramped spaces. They are further integrated with box lug terminals for secure wiring configuration and are available in amperage ratings of 1600A, 1800A and 2000A on Raptor Supplies.

Siemens NGB Series circuit breakers are designed for installation in commercial and industrial electrical devices for protection against overcurrent and short circuit conditions. They feature a non-interchangeable thermal magnetic trip unit which provides both instantaneous & long-time protection and bolt-on mounting with load side lugs for hassle-free installation. They are suitable for reverse feed applications, are rated at 600V and have NGB type frame for added versatility. A wide range of these circuit breakers is available in 1, 2 & 3 pole configurations on Raptor Supplies.

Siemens QJ Series circuit breakers are used with branch circuit protection to protect electrical appliances. These UL listed breakers feature a thermal magnetic trip for both instantaneous and long-time overcurrent protection. They provide bolt-on mounting to accommodate aluminium / copper wires and have a QJ type frame. They come in a 3 pole design and operate at a fixed voltage rating of 240V. QJ Series circuit breakers are available in current ratings between 100A & 175A on Raptor Supplies.

Siemens RXD Series circuit breakers are ideal for protecting electrical circuits and machinery against current overloads and short circuits. These devices feature a thermal-magnetic trip mechanism that delivers both long-time and instantaneous current limiting functions against faulty currents. They are integrated with a bolt-on mounting facility for reducing the installation downtime in reverse-feed applications.

Siemens SMD Series circuit breakers are designed for limiting let-through current for protecting downstream components in power distribution applications. These molded case circuit breakers feature a bolt-on design for ease-of-installation & wiring, and solid state components for long-term durability & quick response against faulty currents. Selected models feature short time, instantaneous & long time trip functions for reacting against severe short-circuits at once while avoiding tripping on mild overloads. These 3 pole, 800A circuit breakers are available on Raptor Supplies.

Siemens HEB Series circuit breakers are designed to protect an electrical circuit from overcurrent occurrences; ideal for use with switchboards, lighting systems and power panels. These devices feature a thermal magnetic trip for providing both instantaneous and long time current limiting protection and a low-tab design with bolt-on mounting facility for ease-of-installation. They are further integrated with load-side lugs to accommodate copper and aluminium wiring arrangements. Choose from a wide range of these HEB Series bolt-on circuit breakers available in amperage ratings ranging from 15 to 125A on Raptor Supplies.

Siemens HND circuit breakers are used to protect the sensitive circuits from excessive current flows causing overloads or short circuits. These devices come with a thermal-magnetic trip mechanism that avoids tripping on mild overloads but instantly responds against severe power surges. They feature line- and load-side lug terminals with feed-thru connection design for ease-of-installation in cramped spaces. Choose from an extensive range of these units available in current ratings ranging from 900 to 1200A, on Raptor Supplies.

Siemens CLD Series circuit breakers protect electrical equipment against short circuit and overload conditions. They feature a thermal-magnetic trip unit allowing instantaneous and long time current limiting protection. They are integrated with bolt-on mounting for reducing installation time and are suitable for branch feed applications. These UL-listed circuit breakers feature a 3-pole design and deliver a high interrupting capacity of 150kA at 480VAC. These LD frame circuit breakers (with current ratings varying from 225A to 400A) are available on Raptor Supplies.

Siemens JD/JXD Series frame circuit breakers are ideal for use with switchboards, power & distribution panelboards and enclosures for current overload protection. These UL-listed breakers feature a bolt-on mounting facility with pressure wire connectors accommodating aluminium or copper cables of different sizes. They come equipped with a thermal magnetic trip unit for delivering both instantaneous and time-delayed current limiting functions. The trip unit is further sealed and calibrated at 40 degrees C (ambient temperature) for preventing access to the current carrying components. Choose from a wide range of these circuit breakers available in 2- and 3-pole configurations with a power supply rated at 240V / 600V on Raptor Supplies.

Siemens circuit breakers are designed for use with power distribution systems to open a circuit under short-circuit or overload conditions. These UL-listed breakers feature a thermal-magnetic trip for providing long-time and instantaneous current limiting protection. The molded case of these devices holds the current-carrying components, trip devices and mechanisms integrated into a confined space. They further come with a bolt-on mounting design for easy installation in panels or switchboards in both horizontal and vertical directions. Choose from a wide range of these HJD / HJXD Series circuit breakers available in a maximum current rating of 125A on Raptor Supplies.

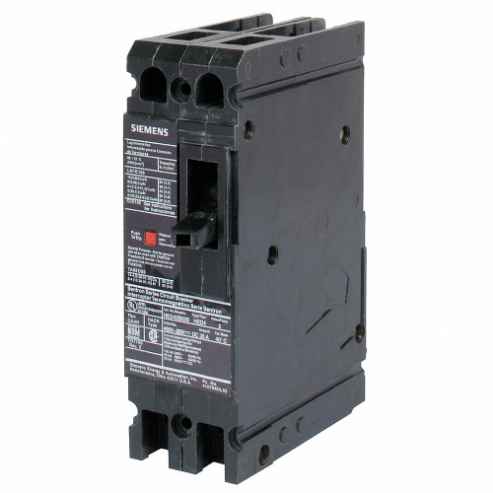

Siemens HED Series circuit breakers interrupt current blow and protect electrical circuits against overloads and short-circuits, making them ideal for switchboards, lighting & panel boards and loadcentres. They feature a thermal magnetic trip unit providing instantaneous & time delayed current limiting protection and bolt-on mounting design to accommodate aluminium & copper wires. These circuit breakers allow ground fault protection against electrical shocks. HED Series circuit breakers are available in an amperage ratings of 15 to 125A on Raptor Supplies.

Siemens RD Series circuit breakers are designed for protecting control panels, switchboards and motor control centres against current overloads and short-circuit conditions. These units feature a thermal-magnetic trip unit for providing both long-time and instantaneous current limiting functions. They are further integrated with feed-thru mounting facility and box-lug terminals for ease-of-installation and a secure wiring configuration, respectively. Choose from a wide range of these circuit breakers available in amperage ratings of 1600A, 1800A and 2000A on Raptor Supplies.

Siemens PD Series circuit breakers are designed for reducing fault currents and fatal electrical shocks. These units feature a non-interchangeable trip for long time and instantaneous (LI) functionalities providing maximum current limiting protection. They feature feed-thru connection and load side lug terminals for ease of installation and secure wiring configuration. These PD frame units deliver a maximum interrupting capacity of 100kA at 480V and are suitable for reverse feed applications. PD Series trip units are available in current ratings ranging between 1200 & 1600A on Raptor Supplies.

Siemens ND Series circuit breakers reduce the risk of fault currents and fatal electrical shocks. These units feature a non-interchangeable trip for long time and instantaneous (LI) functionalities providing maximum current limiting protection. They have load side lug terminals for ease of installation and secure wiring. These ND frame units deliver 50kAIC at 480V and are suitable for reverse feed applications. These ND Series trip units are available in current ratings in the range of 900A - 1200A on Raptor Supplies.
