SQUARE D Molded Case Circuit Breakers

Square D KC Series circuit breakers are designed for limiting let-through current for protecting downstream components & connected circuits and are ideal for installation within switchboards, motor control centres, panelboards, industrial enclosures and busway plug-in units. They feature I-Line style plug-in design for ensuring hassle-free installation and thermal magnetic trip for providing both long time & instantaneous trip functions for reacting against severe short-circuits at once while avoiding tripping on mild overloads. These KC frame molded case circuit breakers are available in amperage ratings ranging from 110 to 250A on Raptor Supplies.

Square D FDA Series circuit breakers are ideal for use with panelboards and loadcentres for protecting electrical circuits from short-circuit and current overload conditions. These UL-listed devices feature I-Line style plug-in design for ease-of-installation, load-side lug terminals for hassle-free wiring and a thermal-magnetic trip for providing both time-delayed and instantaneous current limiting functions. Choose from a wide range of these triple-pole circuit breakers available in amperage ratings ranging from 40 to 100A on Raptor Supplies.

Square D KCL Series circuit breakers are suitable for installation within industrial control panels & switchboards for protecting electrical circuits & equipment against current overloads & short-circuits. These feed-thru circuit breakers feature thermal magnetic trip for providing both long time & instantaneous functions for reacting against severe short-circuits at once while avoiding tripping on mild overloads. They are ideal for applications demanding very high interrupting capacity and come equipped with line & load side lug terminals that ensure hassle-free wiring & eliminate chances of connections loosening due to vibrations. These 3 pole molded case circuit breakers are available in amperage ratings ranging from 125 to 250A on Raptor Supplies.

Square D MH Series circuit breakers are designed for installation in panelboards and loadcentres for protecting electrical circuits against short-circuit conditions and current overloads. These UL-listed & CSA-certified breakers feature I-Line style plug-in design for ease-of-installation and a fixed thermal, adjustable AC magnetic trip unit for delivering both time-delayed and instantaneous current limiting functions, respectively.

Square D MJA Series moulded case circuit breakers are used in commercial facilities, industrial plants, data centres and institutional buildings for reliable protection against overcurrents and short circuits in electrical systems. They have a -pole, 3-phase configuration with bolt-on terminal design for enhanced safety and secure connection. These standard circuit breakers feature an electronic trip for LSI (Long-time, Short-time and Instantaneous) trip functions. They offer current ratings ranging from 300A to 800A. These breaker units are further equipped with line and load side lug terminals to accommodate copper / aluminium wires of sizes ranging from 500 Kcmil to 3 AWG.

Square D MJL Series circuit breakers are designed to protect sensitive circuits from excessive current flows causing overloads or short circuits. These circuit breakers feature a programmable electronic trip for short-time, long-time & instantaneous tripping and a solid-state protection system for electronically controlling the current flow & providing advanced safety for appliances. These breakers are equipped with line and load side lug terminals to accommodate wires (copper / aluminium) of sizes ranging between 500 kcmil & 3 AWG. These circuit breakers provide current ratings up to 800A and deliver interrupt capacity of 100kA at 240VAC, 65kA at 480VAC and 25kA at 600VAC.

Square D JGA Series circuit breakers designed for providing overcurrent protection and reducing downtime by instantly breaking the electric circuit exposed to short-circuit conditions. These J-frame units feature a thermal-magnetic trip, calibrated at 40 degrees C, providing long-time and instantaneous current limiting functions. They come integrated with I-Line style plug-in mounting facility for ease-of-installation and are suitable for reverse feed applications. The molded case of these breakers hold the current-carrying components, trip devices and other mechanisms within a compact space. They are UL-listed, CSA-certified & IEC-rated and are available with a maximum current rating of 250A on Raptor Supplies.

Square D PGA Series circuit breakers are designed for installation in panelboards and loadcentres for protecting electrical circuits against short-circuit conditions and current overloads. These UL-listed & CSA-certified breakers feature I-Line style plug-in design for ease-of-installation and an electronic trip for short-time, long-time and instantaneous current limiting functions. They are available in maximum current rating and interrupting capacity of 1200A and 65kA at 480VAC, respectively on Raptor Supplies.

Square D LE Series circuit breakers are designed to interrupt circuits exceeding the ambient operating temperature. These devices feature an electronic trip unit comprising current sensors, a Micrologic processor and a trip mechanism providing instantaneous, short-time and long-time current limiting functions. They are further integrated with I-Line style plug-in design and load-side lugs for reducing the installation and wiring downtime, respectively. Choose from a broad range of these current limiting breakers available in amperage ratings ranging from 250 to 600A on Raptor Supplies.

Square D circuit breakers are suitable for limiting the let-through current for protecting downstream components in power distribution applications. These PowerPact circuit breakers feature a non-interchangeable thermal-magnetic trip that provides long-time & instantaneous current limiting functions for reacting against severe power surges at once while avoiding tripping on mild overloads. They are further integrated with I-Line style plug-in design for ensuring ease-of-installation with load-side lug terminals. Choose from a wide range of these double- & triple-phase circuit breakers available in amperage ratings ranging from 15 to 150A on Raptor Supplies.

Square D KIL Series circuit breakers limit let-through current for protecting downstream components & connected circuits and are ideal for installation within switchboards, motor control centres, panelboards, industrial enclosures and busway plug-in units. These 3 phase, feed-thru circuit breakers feature line & load side lug terminals that ensure hassle-free wiring & hazard-proof connections and thermal magnetic trip for long time & instantaneous trip functions. Choose from a wide range of these KIL frame molded case circuit breakers, available in amperage ratings ranging from 125 to 250A on Raptor Supplies.

Square D HLA Series PowerPact molded case circuit breakers protect electrical circuits from overcurrents and short-circuits. The current limiting design of these breakers makes them ideal for reverse feed applications. These H frame breakers feature a non-interchangeable, thermal-magnetic trip to provide both long-time & instantaneous trip functions during mild nuisance tripping & severe overloading. They are equipped with I-Line style plug-in for facilitating smooth installation in panelboards. These molded case circuit breakers are available in 2 & 3 pole configurations on Raptor Supplies.

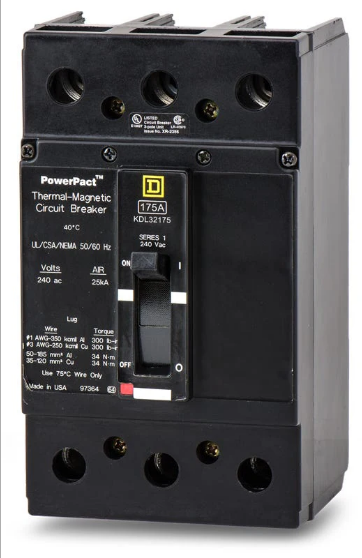

Square D KDL Series circuit breakers are suitable for installation within switchboards, motor control centres, panelboards, industrial enclosures and busway plug-in units for protecting connected circuits & equipment against short circuits & faulty currents. These feed-thru circuit breakers feature line & load side lug terminals that ensure hassle-free wiring & hazard-proof connections and thermal magnetic trip that provides both long time & instantaneous trip functions for reacting against severe short-circuits at once while avoiding tripping on mild overloads. These 3 pole circuit breakers are available in KDL & KGL frames and amperage ratings ranging from 100 to 225A on Raptor Supplies.

Square D JDA Series circuit breakers are designed for installation within panelboards & loadcentres for protecting electrical circuits & equipment against short-circuits & current overloads. These UL-listed circuit breakers feature I-Line style plug-in design for ease-of-installation, load side lug terminals for hassle-free wiring and thermal magnetic trip for protection against severe short-circuits while avoiding tripping on mild overloads. They provide current ratings up to 250A and deliver interrupt capacity of 18kA at 480VAC. Square D JDA series circuit breakers are available in 3 pole configuration on Raptor Supplies.

Square D KI Series circuit breakers are ideal for installation within industrial control panels & switchboards for protecting electrical circuits & equipment against current overloads & short-circuits. These current limiting circuit breakers feature thermal magnetic trip for providing both long time & instantaneous trip functions that react against severe short-circuits at once while avoiding tripping on mild overloads. I-Line style plug-in design enables ease-of-installation and load side lug terminals allow hassle-free wiring. Choose from a broad range of these 3 pole circuit breakers in amperage ratings ranging from 110 to 250A on Raptor Supplies.

Square D LX Series circuit breakers are specially designed to provide circuit protection against damages caused by overload and short-circuit conditions. These devices feature a unique MicroLogic non-interchangeable trip for delivering both long-time and instantaneous current limiting functions and I-Line style plug-in mounting design to ensure ease-of-installation in compact spaces. Choose from an extensive array of these circuit breakers available in amperage ratings of 125A, 250A, 400A and 600A on Raptor Supplies.
