Acme Electric Three Phase Transformers

ACME ELECTRIC -

Non Linear Load Transformers, 480V Delta Primary

A

B

Style	Model	Height	Length	Width	Price (ex. VAT)
A	T3015K0013BK4S	25.5"	19.37"	24.39"	€3,292.41
A	T3045K0013BK4S	25.5"	19.37"	24.39"	€4,559.55
A	T3030K0013BK4S	25.5"	19.37"	24.39"	€3,763.76
A	T3075K0013BK4S	29.41"	22.37"	28.15"	€6,190.27
A	T3112K0013BK4S	35.47"	26.88"	31.9"	€8,768.72
A	T3150K0013BK4S	41.52"	29.87"	32.9"	€11,207.36
B	T3225K0013BK4S	41.52"	29.87"	32.9"	€14,640.68	RFQ

ACME ELECTRIC -

Three Phase Dry Type Distribution Transformers, 480V Delta Primary Volts

A

B

C

Style	Model	Height	Length	Mounting Type	Speed	Torque	Width	Price (ex. VAT)
A	T3045K0013BS	25.5"	19.37"	-	-	-	24.39"	€4,108.90
A	T3030K0013BS	25.5"	19.37"	-	-	-	24.39"	€3,361.47
A	T3015K0013BS	25.5"	19.37"	-	-	-	24.39"	€2,951.59
A	T3075K0013BS	29.41"	22.37"	-	-	-	28.15"	€5,766.52
A	T3112K0013BS	35.47"	26.88"	-	-	-	31.9"	€7,812.28
A	T3225K0053BS	41.52"	29.87"	-	-	-	32.9"	€14,303.55
A	T3225K0013BCS	41.52"	29.87"	Standard, 4 Bolts	615 RPM	735 Nm	32.9"	€22,024.65
A	T3225K0013BS	41.52"	29.87"	-	-	-	32.9"	€13,112.95
A	T3225K0023BS	41.52"	29.87"	-	-	-	32.9"	€13,112.95
A	T3300K0053BS	45.6"	35.5"	-	-	-	39.5"	€21,888.94
A	T3300K0013BCS	45.6"	35.5"	-	-	-	39.5"	€29,997.27
A	T3300K0013BS	45.6"	35.5"	-	-	-	39.5"	€19,027.76
A	T3300K0023BS	45.6"	35.5"	Standard, 4 Bolts	387 RPM	1155 Nm	39.5"	€19,027.76
A	T3500K0013BCS	57.8"	41.5"	-	-	-	45.6"	€45,258.46

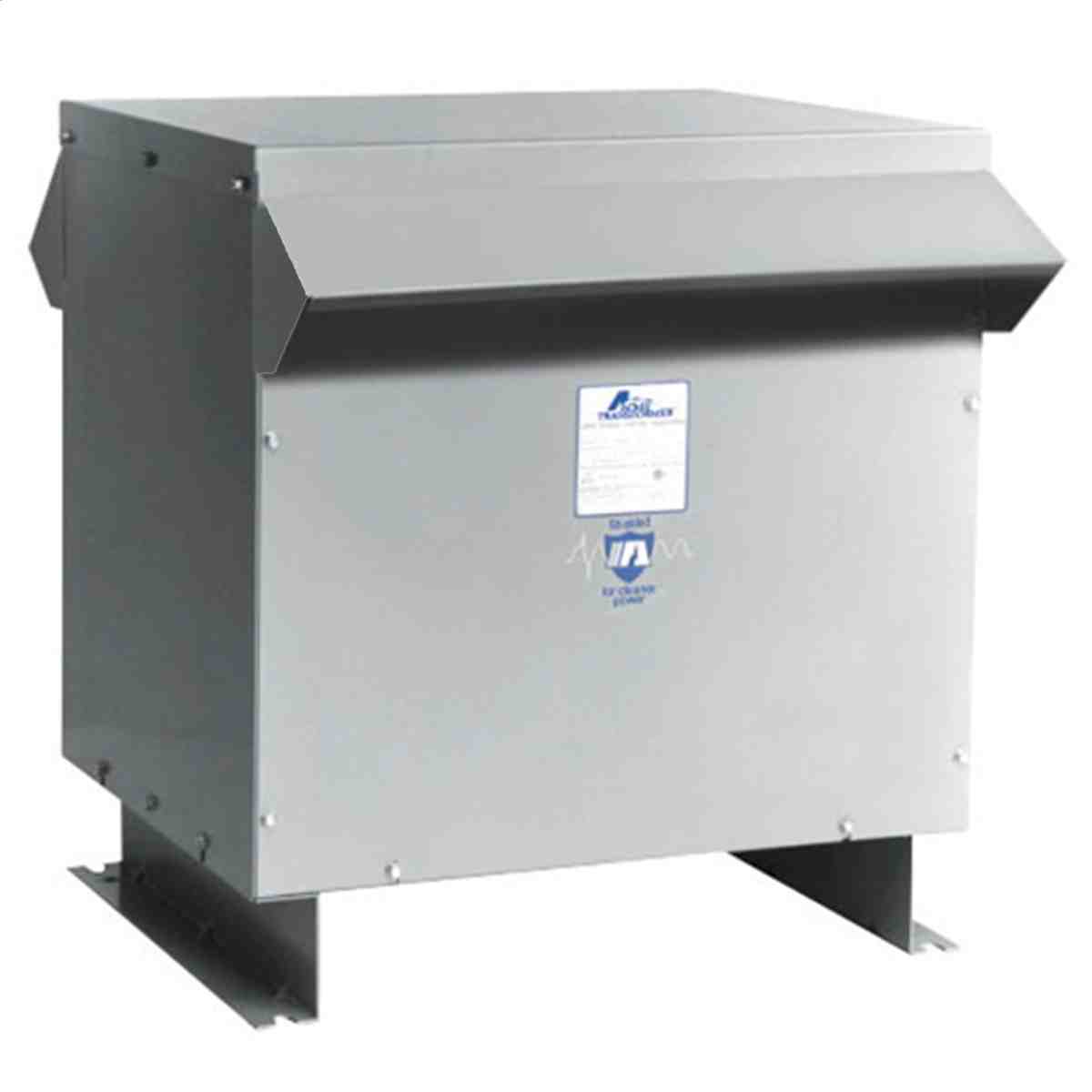

B	T3500K0013BS	57.8"	41.5"	-	-	-	45.6"	€23,824.33	RFQ
B	T3500K0023BS	57.8"	41.5"	-	-	-	45.6"	€23,824.33	RFQ
C	T3750K0023B	62.8"	41.5"	Floor	-	-	54"	€32,910.04	RFQ
B	T3750K0023BS	62.8"	41.5"	Standard, 4 Bolts	153 RPM	1685 Nm	54"	€31,952.05	RFQ
A	T3750K0013BCS	62.8"	41.5"	-	-	-	54"	-	RFQ
B	T3001M0012BS	62.8"	41.5"	-	-	-	54"	€43,624.97	RFQ

ACME ELECTRIC -

Three Phase Dry Type Distribution Transformers, 480V Delta Primary Volts, 208Y/120 Secondary Volts

A

B

C

D

E

Style	Model	Construction	Height	Length	Max. Temp.	Mounting Type	Width	Price (ex. VAT)
A	T2A533091S	Encapsulated	11.83"	8.82"	115 Degrees C	Wall	14.17"	€1,651.73
B	T3533111S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	20.3"	€2,319.02
A	T2A533101S	Encapsulated	14.03"	11.52"	115 Degrees C	Wall	17.77"	€1,754.16
C	T3045K0013B	Ventilated	25.5"	19.37"	150 Degrees C	Floor	24.39"	€3,408.47
D	T3500K0013B	Ventilated	57.8"	41.5"	150 Degrees C	Floor	45.6"	€28,668.40
D	T3750K0013B	Ventilated	62.8"	41.5"	150 Degrees C	Floor	54"	€40,774.55	RFQ
C	T3300K0013B	Ventilated	45.6"	35.5"	150 Degrees C	Floor	39.5"	€17,419.79
C	T3150K0013B	Ventilated	41.52"	29.87"	150 Degrees C	Floor	32.9"	€9,189.64
C	T3030K0013B	Ventilated	25.5"	19.37"	150 Degrees C	Floor	24.39"	€2,752.44
C	T3112K0013B	Ventilated	35.47"	26.88"	150 Degrees C	Floor	31.9"	€6,365.25
C	T3225K0013B	Ventilated	41.52"	29.87"	150 Degrees C	Floor	32.9"	€11,314.18

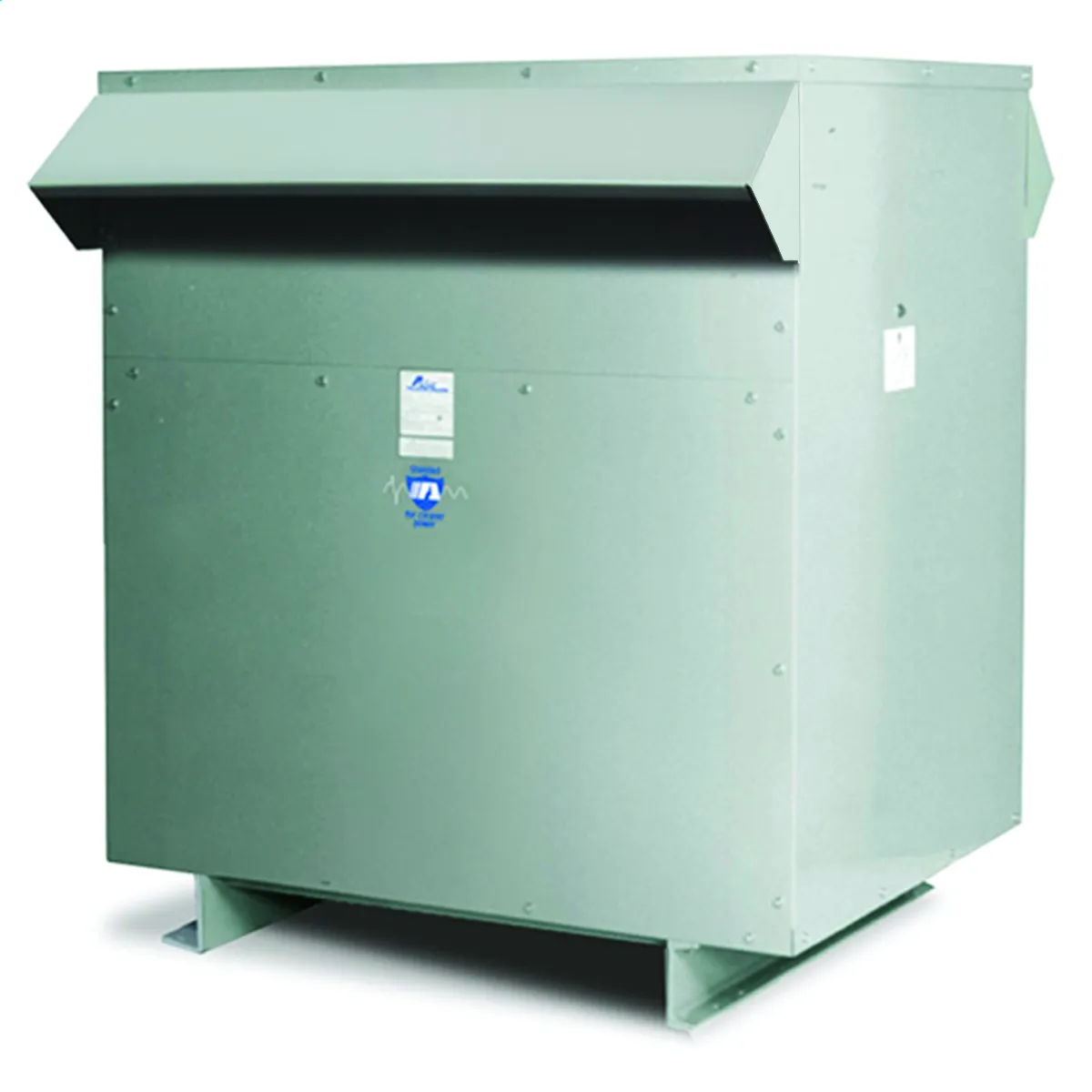

E	T3001M0012B	Ventilated	62.8"	41.5"	150 Degrees C	Floor	54"	€55,670.52	RFQ

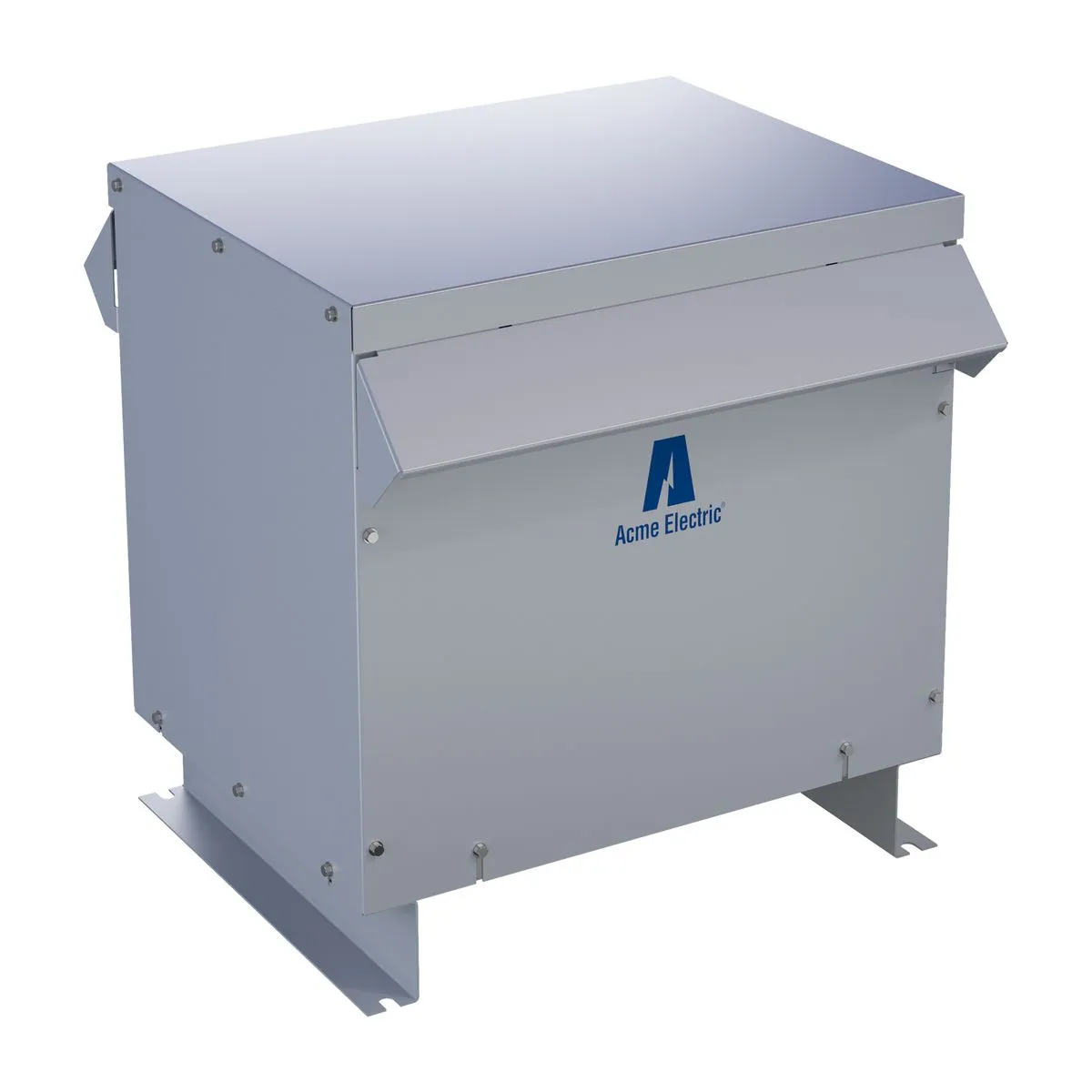

C	T3015K0013B	Ventilated	25.5"	19.37"	150 Degrees C	Floor	24.39"	€2,699.65
C	T3075K0013B	Ventilated	29.41"	22.37"	150 Degrees C	Floor	28.15"	€4,389.06

ACME ELECTRIC -

WI500 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

A

Style	Model	Configuration	Primary Voltage	Secondary Voltage	Price (ex. VAT)
A	WI500K10	10	2400V	208Y/120V	€58,661.34	RFQ
A	WI500K11	11	2400V	240V	€58,661.34	RFQ
A	WI500K12	12	2400V	480V	€58,661.34	RFQ
A	WI500K13	13	2400V	480Y/277V	€58,661.34	RFQ
A	WI500K14	14	2400V	600V	€58,661.34	RFQ
A	WI500K15	15	2400V	600Y/347V	€58,661.34	RFQ
A	WI500K16	16	4160V	208Y/120V	€58,661.34	RFQ
A	WI500K17	17	4160V	240V	€58,661.34	RFQ
A	WI500K18	18	4160V	480V	€58,661.34	RFQ
A	WI500K19	19	4160V	480Y/277V	€58,661.34	RFQ
A	WI500K20	20	4160V	600V	€58,661.34	RFQ
A	WI500K21	21	4160V	600Y/347V	€58,661.34	RFQ
A	WI500K22	22	4800V	208Y/120V	€58,661.34	RFQ
A	WI500K23	23	4800V	240V	€58,661.34	RFQ
A	WI500K24	24	4800V	480V	€58,661.34	RFQ
A	WI500K25	25	4800V	480Y/277V	€58,661.34	RFQ
A	WI500K26	26	4800V	600V	€58,661.34	RFQ
A	WI500K27	27	4800V	600Y/347V	€58,661.34	RFQ

ACME ELECTRIC -

WI002 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

A

Style	Model	Configuration	Port Type	Primary Voltage	Secondary Voltage	Speed	Torque	Price (ex. VAT)
A	WI002M10	10	-	2400V	208Y/120V	-	-	€172,492.28	RFQ
A	WI002M11	11	-	2400V	240V	-	-	€172,492.28	RFQ
A	WI002M12	12	-	2400V	480V	-	-	€172,492.28	RFQ
A	WI002M13	13	-	2400V	480Y/277V	-	-	€172,492.28	RFQ
A	WI002M14	14	-	2400V	600V	-	-	€172,492.28	RFQ
A	WI002M15	15	-	2400V	600Y/347V	-	-	€172,492.28	RFQ
A	WI002M16	16	-	4160V	208Y/120V	-	-	€172,492.28	RFQ
A	WI002M17	17	-	4160V	240V	-	-	€172,492.28	RFQ
A	WI002M18	18	1.0625-12 UN-2B SAE	4160V	480V	239 RPM	930 Nm	€172,492.28	RFQ
A	WI002M19	19	-	4160V	480Y/277V	-	-	€172,492.28	RFQ
A	WI002M20	20	-	4160V	600V	-	-	€172,492.28	RFQ
A	WI002M21	21	-	4160V	600Y/347V	-	-	€172,492.28	RFQ
A	WI002M22	22	-	4800V	208Y/120V	-	-	€172,492.28	RFQ
A	WI002M23	23	-	4800V	240V	-	-	€172,492.28	RFQ
A	WI002M24	24	-	4800V	480V	-	-	€172,492.28	RFQ
A	WI002M25	25	Manifold Port	4800V	480Y/277V	582 RPM	485 Nm	€172,492.28	RFQ
A	WI002M26	26	-	4800V	600V	-	-	€172,492.28	RFQ
A	WI002M27	27	-	4800V	600Y/347V	-	-	€172,492.28	RFQ

ACME ELECTRIC -

Harmonic Mitigation Transformers, 480V Delta Primary Volts

A

B

Style	Model	Height	Length	Width	Price (ex. VAT)
A	H3075K0014BCS	-	-	-	€11,048.02
A	H3030K0014BCS	29.9"	22.37"	28.15"	€7,180.63
A	H3045K0014BCS	29.9"	22.37"	28.15"	€7,186.13
B	H3225K0014BCS	41.52"	29.88"	32.9"	€36,727.15	RFQ
A	H3112K0014BCS	41.52"	29.88"	32.9"	€17,202.30
B	H3150K0014BCS	41.52"	29.88"	32.9"	€22,366.06	RFQ

ACME ELECTRIC -

Drive Isolation Transformers, 230V Primary Volts

A

B

C

D

Style	Model	Construction	Height	Length	Max. Temp.	Mounting Type	Nema Rating	Width	Winding Material	Price (ex. VAT)
A	DTFA0142S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	20.3"	Aluminum	€2,351.36
B	DTFA72S	Encapsulated	15.21"	7.37"	115 Degrees C	Wall	Nema 3R	19.25"	Copper	€2,089.43
A	DTFA0112S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	20.3"	Aluminum	€2,283.02
A	DTFA0202S	Encapsulated	20.77"	10.18"	115 Degrees C	Floor	Nema 3R	20.94"	Aluminum	€2,869.68
C	DTFA0274S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	24.39"	Aluminum	€3,552.53
D	DTFA02204S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	32.9"	Aluminum	€10,620.48
C	DTFA0344S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	24.39"	Aluminum	€3,635.97
C	DTFA0404S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	24.39"	Aluminum	€3,897.53
C	DTFA0934S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	31.9"	Aluminum	€6,201.01
D	DTFA01754S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	32.9"	Aluminum	€10,066.28
C	DTFA0514S	Ventilated	29.9"	22.37"	150 Degrees C	Floor	NEMA 2	28.15"	Aluminum	€4,515.80
C	DTFA0754S	Ventilated	29.9"	22.37"	150 Degrees C	Floor	NEMA 2	28.15"	Aluminum	€5,031.43
C	DTFA0634S	Ventilated	29.9"	22.37"	150 Degrees C	Floor	NEMA 2	28.15"	Aluminum	€4,754.93
C	DTFA01184S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	31.9"	Aluminum	€6,612.07
C	DTFA01454S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	32.9"	Aluminum	€8,070.54

ACME ELECTRIC -

Three Phase Dry Type Distribution Auto Transformers, 600/480V Primary Volts

A

B

C

Style	Model	Construction	Height	Item	Length	Max. Temp.	Mounting Type	Nema Rating	Primary Voltage	Price (ex. VAT)
A	T2A533081S	Encapsulated	10.38"	Transformer	7.47"	115 Degrees C	Wall	Nema 3R	480V	€1,329.87
A	T2527031	Encapsulated	15.21"	Autotransformer	7.37"	115 Degrees C	Wall	Nema 3R	600V/480V	€1,416.42
A	T2527071	Encapsulated	15.21"	Autotransformer	7.37"	115 Degrees C	Wall	Nema 3R	600V/480V	€1,884.92
A	T2527051	Encapsulated	15.21"	Autotransformer	7.37"	115 Degrees C	Wall	Nema 3R	600V/480V	€1,783.15
B	T2A527171	Ventilated	29.41"	Autotransformer	22.37"	150 Degrees C	Floor	NEMA 2	600V/480V	€7,680.99
C	T2A527131	Ventilated	25.5"	Autotransformer	19.4"	150 Degrees C	Floor	NEMA 2	600V/480V	€3,841.49
C	T2A527121	Ventilated	25.5"	Autotransformer	19.4"	150 Degrees C	Floor	NEMA 2	600V/480V	€3,759.18
B	T2A527181	Ventilated	35.47"	Autotransformer	26.88"	150 Degrees C	Floor	NEMA 2	600V/480V	€8,847.92

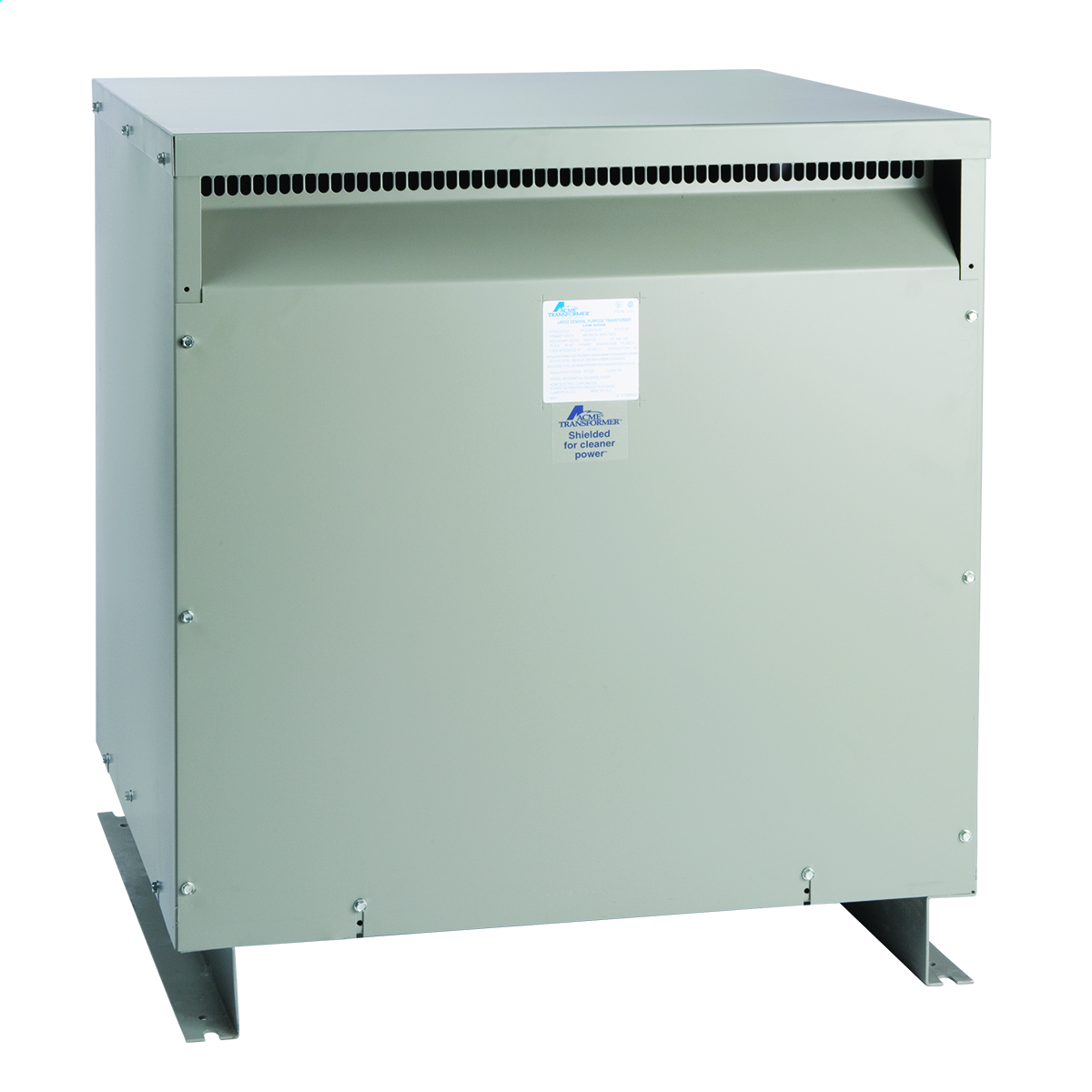

B	T2A527191	Ventilated	35.47"	Autotransformer	26.88"	150 Degrees C	Floor	NEMA 2	600V/480V	€10,102.41
B	T2A527151	Ventilated	29.41"	Autotransformer	22.37"	150 Degrees C	Floor	NEMA 2	600V/480V	€6,084.65

ACME ELECTRIC -

Drive Isolation Transformers, 460V Primary Volts

A

B

C

D

E

F

Style	Model	Construction	Height	Length	Max. Temp.	Mounting Type	Nema Rating	Secondary Voltage	Width	Price (ex. VAT)
A	DTGA02754S	-	45.6"	35.5"	150 Degrees C	Floor	NEMA 2	230Y/133	39.5"	-	RFQ
B	DTGA0202S	Encapsulated	20.77"	10.18"	115 Degrees C	Floor	Nema 3R	230Y/133V	20.94"	€2,869.68
B	DTGB0202S	Encapsulated	20.77"	10.18"	115 Degrees C	Floor	Nema 3R	460Y/266V	20.94"	€2,869.68
C	DTGA72S	Encapsulated	15.21"	7.37"	115 Degrees C	Wall	Nema 3R	230Y/133V	19.25"	€2,089.43
B	DTGB0142S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	460Y/266V	20.3"	€2,351.36
B	DTGB0112S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	460Y/266V	20.3"	€2,283.02
B	DTGA0112S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	230Y/133V	20.3"	€2,283.02
B	DTGA0142S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	230Y/133V	20.3"	€2,351.36
C	DTGB72S	Encapsulated	15.21"	7.37"	115 Degrees C	Wall	Nema 3R	460Y/266V	19.25"	€2,089.43
D	DTGB02204S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	460Y/266V	32.9"	€10,620.48
E	DTGB01184S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	460Y/266V	31.9"	€6,612.07
F	DTGB9902S	Ventilated	62.84"	41.49"	150 Degrees C	Floor	NEMA 2	460Y/266V	54"	€41,017.83	RFQ
E	DTGB0934S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	460Y/266V	31.9"	€6,201.01
E	DTGB0514S	Ventilated	29.9"	22.37"	150 Degrees C	Floor	NEMA 2	460Y/266V	28.15"	€4,515.80
E	DTGA0514S	Ventilated	29.9"	22.37"	150 Degrees C	Floor	NEMA 2	230Y/133V	28.15"	€4,515.80
F	DTGB06604S	Ventilated	62.84"	41.49"	150 Degrees C	Floor	NEMA 2	460Y/266V	54"	€30,962.18	RFQ
E	DTGA01184S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	230Y/133V	31.9"	€6,612.07
F	DTGB008804S	Ventilated	62.84"	41.49"	150 Degrees C	Floor	NEMA 2	460Y/266V	54"	€35,707.60	RFQ
E	DTGA0274S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	230Y/133V	24.39"	€3,552.53
D	DTGA01754S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	230Y/133V	32.9"	€10,066.28
E	DTGA01454S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	230Y/133V	32.9"	€8,070.54
E	DTGB0404S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	460Y/266V	24.39"	€3,897.53
E	DTGB0274S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	460Y/266V	24.39"	€3,552.53
F	DTGB05504S	Ventilated	57.84"	41.49"	150 Degrees C	Floor	NEMA 2	460Y/266V	45.5"	€27,797.53
E	DTGA0404S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	230Y/133V	24.39"	€3,897.53

ACME ELECTRIC -

Three Phase Dry Type Distribution Transformers, 208V Delta Primary Volts, 208Y/120 Secondary Volts

A

B

C

Style	Model	Construction	Height	Length	Max. Temp.	Mounting Type	Width	Winding Material	Price (ex. VAT)
A	T2A792691S	Encapsulated	11.83"	8.82"	115 Degrees C	Wall	14.17"	Aluminum	€1,776.38
A	T2A792701S	Encapsulated	14.03"	11.52"	115 Degrees C	Wall	17.77"	Aluminum	€1,794.97
B	T3792711S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	20.3"	Aluminum	€3,524.99
A	T2A792681S	Encapsulated	10.38"	7.47"	115 Degrees C	Wall	12.37"	Copper	€1,350.24
C	T3045K0064BS	Ventilated	25.50"	19.37"	150 Degrees C	Floor	24.39"	Aluminum	€3,824.69
C	T3075K0064BS	Ventilated	29.41"	22.37"	150 Degrees C	Floor	28.15"	Aluminum	€5,766.47
C	T3015K0064BS	Ventilated	25.50"	19.37"	150 Degrees C	Floor	24.39"	Aluminum	€3,027.96
C	T3030K0064BS	Ventilated	25.50"	19.37"	150 Degrees C	Floor	24.39"	Aluminum	€3,798.10

ACME ELECTRIC -

Three Phase Dry Type Distribution Transformers, 480V Delta Primary Volts, Stainless Steel, 115 Degrees C Rise

A

B

Style	Model	Height	Length	Mounting Type	Width	Winding Material	Price (ex. VAT)
A	T2A53308SS	10.38"	7.47"	Wall	12.37"	Copper	€1,632.78
A	T2A53309SS	11.83"	8.82"	Wall	14.17"	Aluminum	€2,441.66
A	T2A53310SS	14.03"	11.52"	Wall	17.77"	Aluminum	€3,840.14
B	T353311SS	18.86"	9.03"	Floor	20.3"	Aluminum	€4,359.71
A	T379312SS	24.81"	11.14"	Floor	27.13"	Aluminum	€6,959.27
A	T379313SS	25.31"	12.76"	Floor	30.18"	Aluminum	€8,857.79
A	T379314SS	26.82"	15.25"	Floor	34.68"	Aluminum	€14,992.52

ACME ELECTRIC -

WI045 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

A

Style	Model	Configuration	Primary Voltage	Secondary Voltage	Price (ex. VAT)
A	WI045K10	10	2400V	208Y/120V	€14,665.32
A	WI045K11	11	2400V	240V	€14,665.32
A	WI045K12	12	2400V	480V	€14,665.32
A	WI045K13	13	2400V	480Y/277V	€14,665.32
A	WI045K14	14	2400V	600V	€14,665.32
A	WI045K15	15	2400V	600Y/347V	€14,665.32
A	WI045K16	16	4160V	208Y/120V	€14,665.32
A	WI045K17	17	4160V	240V	€14,665.32
A	WI045K18	18	4160V	480V	€14,665.32
A	WI045K19	19	4160V	480Y/277V	€14,665.32
A	WI045K20	20	4160V	600V	€14,665.32
A	WI045K21	21	4160V	600Y/347V	€14,665.32
A	WI045K22	22	4800V	208Y/120V	€14,665.32
A	WI045K23	23	4800V	240V	€14,665.32
A	WI045K24	24	4800V	480V	€14,665.32
A	WI045K25	25	4800V	480Y/277V	€14,665.32
A	WI045K26	26	4800V	600V	€14,665.32
A	WI045K27	27	4800V	600Y/347V	€14,665.32

ACME ELECTRIC -

Non Linear Load Transformers, 480V Delta Primary Volts, K Factor 13, 150 Degrees C Rise

A

B

Style	Model	Height	Length	Width	Price (ex. VAT)
A	T3150K0013BK13S	41.52"	29.87"	32.9"	€12,669.23
B	T3225K0013BK13S	45.6"	35.5"	39.5"	€17,823.41

ACME ELECTRIC -

Three Phase Buck Boost Transformers, 240V Primary Volts

A

Style	Model	Height	Length	Primary Voltage	Width	Price (ex. VAT)
A	A3009K0310B	10.38"	7.47"	220/230/240V	12.37"	€928.16
A	A3006K0310B	10.38"	7.47"	240V	12.37"	€782.47
A	A3015K0310B	15.21"	7.37"	240V	19.25"	€1,073.02
A	A3030K0310B	15.21"	7.37"	240V	19.25"	€1,787.65
A	A3045K0310B	15.21"	7.37"	240V	19.25"	€3,031.24
A	A3075K0310B	24.81"	11.14"	240V	27.13"	€4,072.60
A	A3150K0310B	24.81"	11.14"	240V	27.13"	€5,487.93
A	A3112K0310B	24.81"	11.14"	240V	27.13"	€4,894.71

ACME ELECTRIC -

WI300 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

A

Style	Model	Configuration	Primary Voltage	Secondary Voltage	Price (ex. VAT)
A	WI300K10	10	2400V	208Y/120V	€39,805.92	RFQ
A	WI300K11	11	2400V	240V	€39,805.92	RFQ
A	WI300K12	12	2400V	480V	€39,805.92	RFQ
A	WI300K13	13	2400V	480Y/277V	€39,805.92	RFQ
A	WI300K14	14	2400V	600V	€39,805.92	RFQ
A	WI300K15	15	2400V	600Y/347V	€39,805.92	RFQ
A	WI300K16	16	4160V	208Y/120V	€39,805.92	RFQ
A	WI300K17	17	4160V	240V	€39,805.92	RFQ
A	WI300K18	18	4160V	480V	€39,805.92	RFQ
A	WI300K19	19	4160V	480Y/277V	€39,805.92	RFQ
A	WI300K20	20	4160V	600V	€39,805.92	RFQ
A	WI300K21	21	4160V	600Y/347V	€39,805.92	RFQ
A	WI300K22	22	4800V	208Y/120V	€39,805.92	RFQ
A	WI300K23	23	4800V	240V	€39,805.92	RFQ
A	WI300K24	24	4800V	480V	€39,805.92	RFQ
A	WI300K25	25	4800V	480Y/277V	€39,805.92	RFQ
A	WI300K26	26	4800V	600V	€39,805.92	RFQ
A	WI300K27	27	4800V	600Y/347V	€39,805.92	RFQ

ACME ELECTRIC -

WI112 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

A

Style	Model	Configuration	Primary Voltage	Secondary Voltage	Price (ex. VAT)
A	WI112K10	10	2400V	208Y/120V	€23,743.89
A	WI112K11	11	2400V	240V	€23,743.89
A	WI112K12	12	2400V	480V	€23,743.89
A	WI112K13	13	2400V	480Y/277V	€23,743.89
A	WI112K14	14	2400V	600V	€23,743.89
A	WI112K15	15	2400V	600Y/347V	€23,743.89
A	WI112K16	16	4160V	208Y/120V	€23,743.89
A	WI112K17	17	4160V	240V	€23,743.89
A	WI112K18	18	4160V	480V	€23,743.89
A	WI112K19	19	4160V	480Y/277V	€23,743.89
A	WI112K20	20	4160V	600V	€23,743.89
A	WI112K21	21	4160V	600Y/347V	€23,743.89
A	WI112K22	22	4800V	208Y/120V	€23,743.89
A	WI112K23	23	4800V	240V	€23,743.89
A	WI112K24	24	4800V	480V	€23,743.89
A	WI112K25	25	4800V	480Y/277V	€23,743.89
A	WI112K26	26	4800V	600V	€23,743.89
A	WI112K27	27	4800V	600Y/347V	€23,743.89

ACME ELECTRIC -

WI030 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

A

Style	Model	Configuration	Flow Rate	Primary Voltage	Secondary Voltage	Speed	Torque	Price (ex. VAT)
A	WI030K10	10	-	2400V	208Y/120V	-	-	€11,871.96
A	WI030K11	11	-	2400V	240V	-	-	€11,871.96
A	WI030K12	12	75 LQ	2400V	480V	697 RPM	320 Nm	€11,871.96
A	WI030K13	13	-	2400V	480Y/277V	-	-	€11,871.96
A	WI030K14	14	-	2400V	600V	-	-	€11,871.96
A	WI030K15	15	-	2400V	600Y/347V	-	-	€11,871.96
A	WI030K16	16	-	4160V	208Y/120V	-	-	€11,871.96
A	WI030K17	17	-	4160V	240V	-	-	€11,871.96
A	WI030K18	18	95 LQ	4160V	480V	722 RPM	375 Nm	€11,871.96
A	WI030K19	19	-	4160V	480Y/277V	-	-	€11,871.96
A	WI030K20	20	-	4160V	600V	-	-	€11,871.96
A	WI030K21	21	-	4160V	600Y/347V	-	-	€11,871.96
A	WI030K22	22	-	4800V	208Y/120V	-	-	€11,871.96
A	WI030K23	23	-	4800V	240V	-	-	€11,871.96
A	WI030K24	24	-	4800V	480V	-	-	€11,871.96
A	WI030K25	25	-	4800V	480Y/277V	-	-	€11,871.96
A	WI030K26	26	-	4800V	600V	-	-	€11,871.96
A	WI030K27	27	95 LQ	4800V	600Y/347V	582 RPM	485 Nm	€11,871.96

ACME ELECTRIC -

WI001 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

A

Style	Model	Configuration	Flow Rate	Primary Voltage	Secondary Voltage	Speed	Torque	Price (ex. VAT)
A	WI001M10	10	-	2400V	208Y/120V	-	-	€99,863.93	RFQ
A	WI001M11	11	-	2400V	240V	-	-	€99,863.93	RFQ
A	WI001M12	12	-	2400V	480V	-	-	€99,863.93	RFQ
A	WI001M13	13	-	2400V	480Y/277V	-	-	€99,863.93	RFQ
A	WI001M14	14	95 LQ	2400V	600V	383 RPM	705 Nm	€99,863.93	RFQ
A	WI001M15	15	-	2400V	600Y/347V	-	-	€99,863.93	RFQ
A	WI001M16	16	-	4160V	208Y/120V	-	-	€99,863.93	RFQ
A	WI001M17	17	-	4160V	240V	-	-	€99,863.93	RFQ
A	WI001M18	18	-	4160V	480V	-	-	€99,863.93	RFQ
A	WI001M19	19	-	4160V	480Y/277V	-	-	€99,863.93	RFQ
A	WI001M20	20	-	4160V	600V	-	-	€99,863.93	RFQ
A	WI001M21	21	-	4160V	600Y/347V	-	-	€99,863.93	RFQ
A	WI001M22	22	-	4800V	208Y/120V	-	-	€99,863.93	RFQ
A	WI001M23	23	96.621 LQ	4800V	240V	303 RPM	629 Nm	€99,863.93	RFQ
A	WI001M24	24	-	4800V	480V	-	-	€99,863.93	RFQ
A	WI001M25	25	-	4800V	480Y/277V	-	-	€99,863.93	RFQ
A	WI001M26	26	-	4800V	600V	-	-	€99,863.93	RFQ
A	WI001M27	27	-	4800V	600Y/347V	-	-	€99,863.93	RFQ

ACME ELECTRIC -

Three Phase Dry Type Distribution Transformers, Encapsulated, 480V Delta Primary, 208Y/120 Secondary, 115 Degrees C Rise

A

Style	Model	Height	Length	Width	Price (ex. VAT)
A	T3793123S	24.81"	11.14"	27.13"	€5,586.80
A	T3793133S	25.31"	12.76"	30.18"	€7,381.49
A	T3793143S	26.82"	15.25"	34.68"	€10,680.94

ACME ELECTRIC -

Drive Isolation Transformers, 575V Primary Volts

A

B

C

D

E

Style	Model	Construction	Height	Length	Max. Temp.	Mounting Type	Nema Rating	Secondary Voltage	Width	Price (ex. VAT)
A	DTHB0202S	Encapsulated	20.77"	10.18"	115 Degrees C	Floor	Nema 3R	460Y/266V	20.94"	€2,869.68
B	DTHA0142S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	230Y/133V	20.3"	€2,351.36
C	DTHA72S	Encapsulated	15.21"	7.37"	115 Degrees C	Wall	Nema 3R	230Y/133V	19.25"	€2,089.43
A	DTHB0112S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	460Y/266V	20.3"	€2,283.02
B	DTHA0202S	Encapsulated	20.77"	10.18"	115 Degrees C	Floor	Nema 3R	230Y/133V	20.94"	€2,869.68
B	DTHA0112S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	230Y/133V	20.3"	€2,283.02
A	DTHB0142S	Encapsulated	18.86"	9.03"	115 Degrees C	Floor	Nema 3R	460Y/266V	20.3"	€2,351.36
C	DTHB72S	Encapsulated	15.21"	7.37"	115 Degrees C	Wall	Nema 3R	460Y/266V	19.25"	€2,089.43
A	DTHA01454S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	230Y/133V	32.9"	€8,070.54
D	DTHB04404S	Ventilated	57.84"	41.49"	150 Degrees C	Floor	NEMA 2	460Y/266V	45.5"	€23,436.53
A	DTHB0274S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	460Y/266V	24.39"	€3,552.53
A	DTHB01454S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	460Y/266V	32.9"	€8,070.54
A	DTHA0934S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	230Y/133V	31.9"	€6,201.01
A	DTHA01184S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	230Y/133V	31.9"	€6,612.07
A	DTHB0404S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	460Y/266V	24.39"	€3,897.53
A	DTHB0634S	Ventilated	29.9"	22.37"	150 Degrees C	Floor	NEMA 2	460Y/266V	28.15"	€4,754.93
A	DTHA0754S	Ventilated	29.9"	22.37"	150 Degrees C	Floor	NEMA 2	230Y/133V	28.15"	€5,031.43
E	DTHB01754S	Ventilated	41.52"	29.88"	150 Degrees C	Floor	NEMA 2	460Y/266V	32.9"	€10,066.28
A	DTHA0274S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	230Y/133V	24.39"	€3,552.53
D	DTHB05504S	Ventilated	57.84"	41.49"	150 Degrees C	Floor	NEMA 2	460Y/266V	45.5"	€27,797.53
A	DTHB0934S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	460Y/266V	31.9"	€6,201.01
A	DTHA0404S	Ventilated	25.5"	19.37"	150 Degrees C	Floor	NEMA 2	230Y/133V	24.39"	€3,897.53
D	DTHB006604S	Ventilated	62.84"	41.49"	150 Degrees C	Floor	NEMA 2	460Y/266V	54"	€30,962.18	RFQ
E	DTHB03304S	Ventilated	45.6"	35.5"	150 Degrees C	Floor	NEMA 2	460Y/266V	39.5"	€16,197.06
A	DTHB01184S	Ventilated	35.9"	26.88"	150 Degrees C	Floor	NEMA 2	460Y/266V	31.9"	€6,612.07

ACME ELECTRIC -

Non Linear Load Transformers, 480V Delta Primary Volts, K Factor 20, 150 Degrees C Rise

A

B

Style	Model	Height	Length	Width	Price (ex. VAT)
A	T3030K0013BK20S	25.5"	19.37"	24.39"	€5,236.52
A	T3015K0013BK20S	25.5"	19.37"	24.39"	€4,580.73
A	T3045K0013BK20S	29.41"	22.37"	28.15"	€6,343.75
A	T3075K0013BK20S	35.47"	26.88"	31.9"	€8,995.94
A	T3150K0013BK20S	41.52"	29.87"	32.9"	€15,592.88
A	T3112K0013BK20S	41.52"	29.87"	32.9"	€12,199.98
B	T3225K0013BK20S	45.6"	35.5"	39.5"	€20,369.61

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Non Linear Load Transformers, 480V Delta Primary

Three Phase Dry Type Distribution Transformers, 480V Delta Primary Volts

Three Phase Dry Type Distribution Transformers, 480V Delta Primary Volts, 208Y/120 Secondary Volts

WI500 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

WI002 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

Harmonic Mitigation Transformers, 480V Delta Primary Volts

Drive Isolation Transformers, 230V Primary Volts

Three Phase Dry Type Distribution Auto Transformers, 600/480V Primary Volts

Drive Isolation Transformers, 460V Primary Volts

Three Phase Dry Type Distribution Transformers, 208V Delta Primary Volts, 208Y/120 Secondary Volts

Three Phase Dry Type Distribution Transformers, 480V Delta Primary Volts, Stainless Steel, 115 Degrees C Rise

WI045 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

Non Linear Load Transformers, 480V Delta Primary Volts, K Factor 13, 150 Degrees C Rise

Three Phase Buck Boost Transformers, 240V Primary Volts

WI300 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

WI112 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

WI030 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

WI001 Series Medium Voltage Transformers, 3 Phase, 60Hz, 2.5kV & 5kV Class

Three Phase Dry Type Distribution Transformers, Encapsulated, 480V Delta Primary, 208Y/120 Secondary, 115 Degrees C Rise

Drive Isolation Transformers, 575V Primary Volts

Non Linear Load Transformers, 480V Delta Primary Volts, K Factor 20, 150 Degrees C Rise

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

We are here to help!

Looking for a part not listed here?

Popular Search Queries

Explore More
