CHERNE I-Series Test-Ball Plugs


Cherne I Series test ball plugs are suitable for blocking pipes, pipelines or sewer lines for air testing and maintenance applications. These test plugs are installed onto the inlet of the pipeline. For applications having no air supply line, users can try Cherne mechanical pipe plugs as well.

Filter
CHERNE 310168A

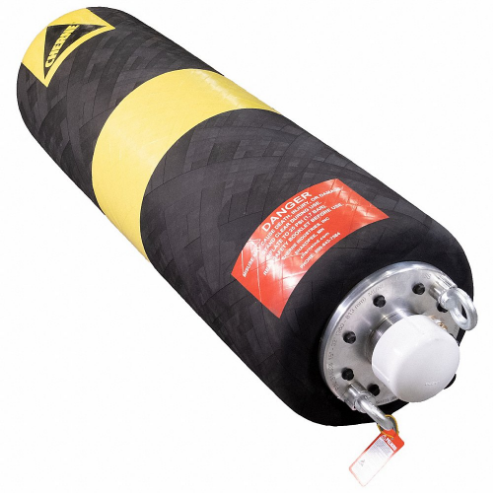

CHERNE 310448B
CHERNE 310968C

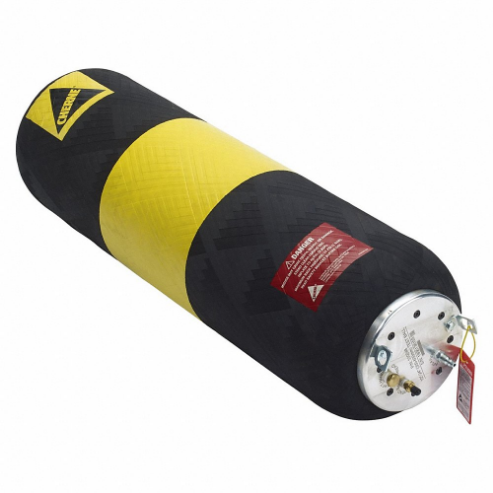

CHERNE 694248D
CHERNE 210128E

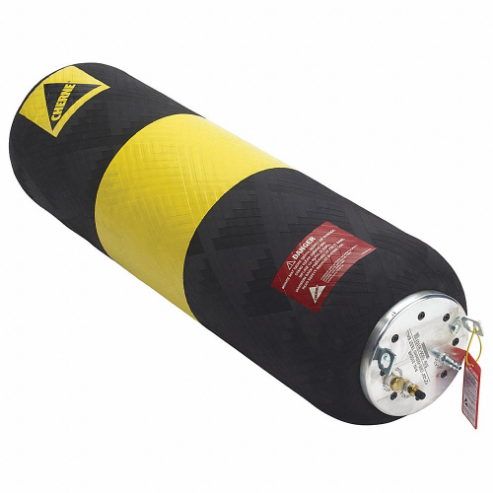

CHERNE 210188F
StyleModelNominal SizeRangeMax. Back PressureRequired Inflation PressureDeflated LengthDeflated DiameterEye Inside Dia.Price (ex. VAT)
A
310168		-------€1,095.04
A
310128		-------€957.83
B
310448		-------€7,040.08
A
310248		-------€1,868.32
C
310968		-------€23,918.38
RFQ
D
694248		-------€3,099.75
E
210128		8" to 12"7.5 To 12.25"15 psi45 psi19.8"6.85"0.25" Eyebolt€1,092.22
F
210188		12" to 18"10.75" To 18.25"15 psi45 psi25"10.5"0.25" Eyebolt€1,781.93

Working Mechanism

  • The plug is placed inside the opening of the pipe which needs to be sealed / blocked for testing.
  • Users need to connect the end of the inflation hose to the fitting on the plug, while the other end of the inflation hose should be connected to the pump or line pressure.
  • The plug is inflated using the pump connected to the inflation hose.
  • The inflated plug blocks / seals the pipe for testing tasks.
  • After testing, the inflation hose should be deflated & removed first, and then the plug should be deflated.

Features

  • These plugs have mechanically bonded natural rubber construction & end plates for eliminating failures during plug expansion / contraction.
  • The rubber construction ensures that the plug holds the air pressure for extended periods of time without leakage.
  • These plugs come with full body cording for ensuring durability.
  • They have small deflated diameters for easy storage.
  • The aluminium end plates prevent corrosion upon contacting fluids for extended periods.
  • These units have pressure relief valves for ensuring user safety.

Frequently Asked Questions

What is the difference between Cherne Muni Ball & Test Ball plugs?

  • Cherne Muni Ball plugs have a bypass tube that runs inside the plug for allowing the user to bypass effluent through the tube.
  • Test Ball plugs are designed for only blocking the pipe, without any bypass facility.

What is the maximum operating temperature for Cherne plugs?

These ball plugs can withstand temperatures up to 125 degrees F.

Are Cherne plugs suitable for a lifetime of usage?

It is recommended to use these plugs for sealing tasks for up to 24 months.
