DESTACO 847-U Pneumatic Hold Down Clamp, 4.87 Inch Clamp Arm, 1000 lb

Destaco 847-U pneumatic hold down action clamp is designed for holding / clamping a workpiece in place without using hands. Destaco pneumatic toggle clamp is an ideal choice for assembly & welding operations and light duty clamping in metalworking & woodworking applications. This toggle clamp has a pneumatic cylinder that features built in flow control to ensure smooth clamping throughout the operation. Its magnetic ring piston enables precise piston position sensing, thereby ensuring accurate clamping. It features a U shaped clamping bar that is designed for preventing the workpiece from slipping or moving mid operation. Its flanged base features two pairs of mounting holes / screws that can be used to fasten the clamp on a flat surface / workbench. In situations, where the clamp needs to be removed or relocated, it can be easily removed just by unscrewing the screws using a simple screwdriver. Destaco 847 Series clampsare also available in solid bar clamping arm variants on Raptor Supplies.

Uses:

Destaco 847-U pneumatic hold down action clamp is suitable for light duty pneumatic clamping operations in welding & assembly applications.

Features:

• Destaco 847-U pneumatic hold down action clamp features a pneumatic cylinder with a built in flow control for ensuring smooth clamping throughout the operation.
• It comes with a magnetic ring piston that enables accurate piston position sensing for precise clamping.
• Destaco pneumatic hold down action clamp has an adjustable spindle design for accommodating varied sized workpieces while securely holding it in place.
• It features a U shaped clamping bar that is designed for preventing the workpiece from slipping or moving mid operation.
• Destaco pneumatic hold down action clamp's flanged base features two pairs of mounting holes or screws that can be used to fasten the clamp on a flat surface / workbench.
• Users can also choose from a wide variety of light & medium dutypneumatic clamps that are available in a range of configurations, styles and constructions (aluminium / steel) on Raptor Supplies.

Compatible Accessories:

• Destaco 247109 flanged washer is used to maintain sufficient load for tightening bolts & gaskets of a flange.
• Destaco 847450-50-1-00 replacement seal kit is used for replacing the worn out / damaged seal on Destaco 847-U pneumatic hold down clamp's pneumatic cylinder.
• Destaco CABL-010 quick disconnect extension cable is used to connect to clamp's sensor.
• Destaco 810169 round reed switch is a sensor, used for sensing the position of the clamp's piston.
• Destaco 8EA-109-1 T-slot reed switch is a sensor, used for sensing the position of the clamp's piston.

Standards and Approvals:

• Destaco 847-U pneumatic hold down action clamp is manufactured in compliance with ISO 9001:2015 & ISO 14001:2015 international industry standards.

Installation:

• Destaco 847-U pneumatic hold down action clamp features two pairs of mounting holes on the base to be installed on a flat surface / workbench.

Frequently Asked Questions:

Q. Does the brand offer pneumatic hold down toggle clamps in other styles?

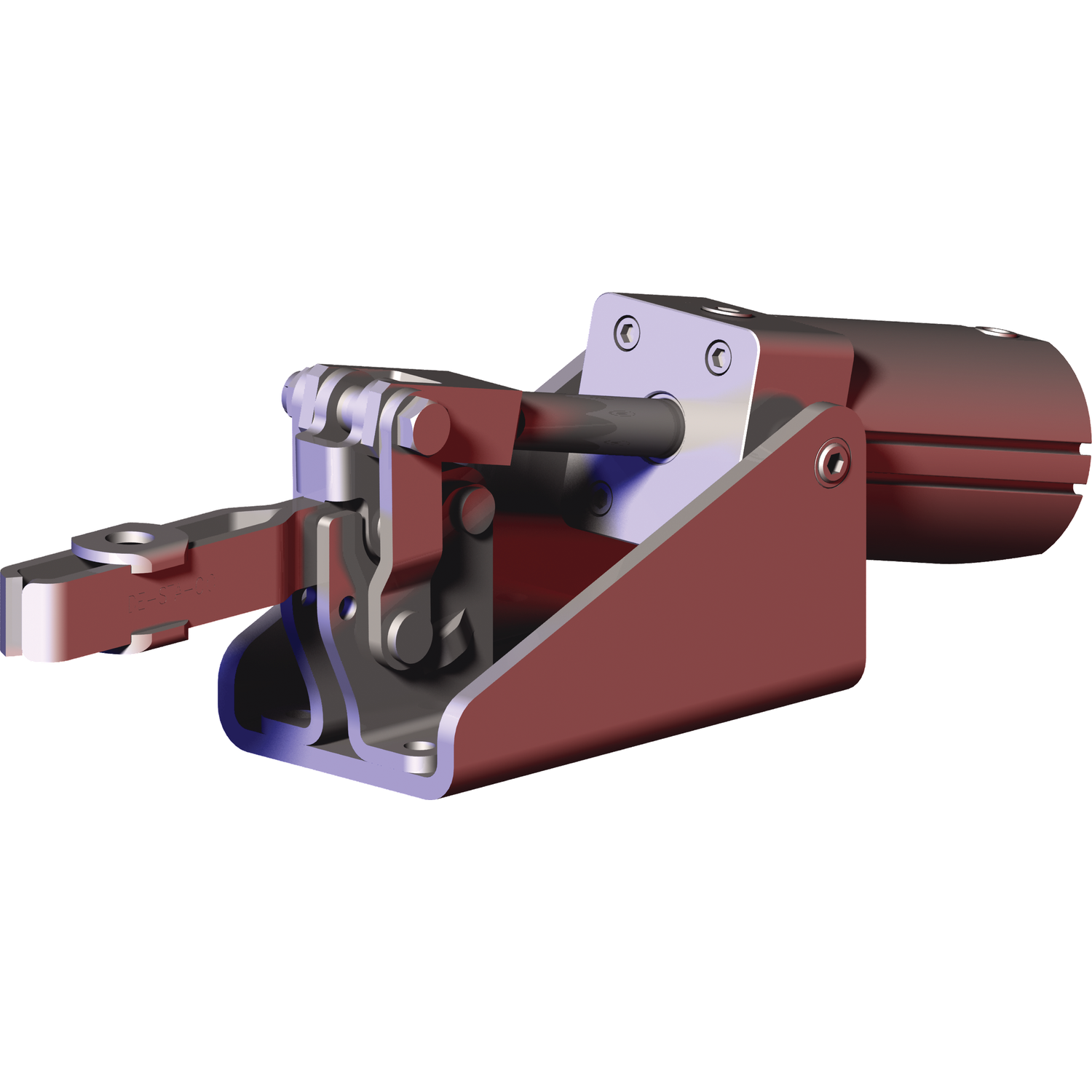

A. Yes, apart from Destaco 847-U pneumatic hold down clamp, the brand also offers solid bar style pneumatic clamps (Destaco 847-S pneumatic clamp) as well.

Q. What is a pneumatic toggle clamp?

A. Destaco pneumatic hold down toggle clamps are pneumatically operated clamps that are used for various applications including welding, woodworking, tensioning devices and various assembly & testing operations.

Q. How do vertical hold down toggle clamps work?

A. Pneumatic hold down action clamps, such as Destaco 847-U clamp, feature a pneumatic cylinder with a piston type configuration. They feature an air supply line that is fed to the clamp cylinder through an input port. The hands free clamping operation is achieved by adjusting the input air supply.

Q. Is clamp a tool?

A. Clamps are application flexible tools. They serve to hold a workpiece securely in its place for temporary operations. These are used in a range of applications, such as furniture making, metal working, construction, carpentry and welding.

Q. What does holding capacity mean in terms of clamps?

A. The holding force or holding capacity depicts the clamp's capability to hold down the equipment or sheet metal on the assembly line or during any other manufacturing process.

Q. Which grease is recommended for use with Destaco clamps when rebuilding?

A. Whenever you're dealing with the brand's mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.

Q. What does clamping force mean?

A. Clamping force is the amount of force actually applied to a workpiece by closing & locking the clamp. It is normally less than the stated holding capacity. The actual clamping force depends on various factors, such as cylinder bore, cylinder area, spindle position (clamping arm length) and available air pressure. In most cases, the clamping force is approximately 2 to 3 times the force exerted by a pneumatic cylinder.

Q. Are Destaco clamps rust resistant?

A. Yes, carbon steel clamps from Destaco are zinc plated for withstanding & minimising wear against harsh industrial environments. For applications that require clamping in outdoor conditions, stainless steel clamps are also available.
