DESTACO Vertical Handle Toggle Clamps

Destaco vertical toggle clamps feature vertically oriented handles (in locked position) that can be moved for holding down workpieces.

Destaco 210 Series vertical hold down clamps are suitable for mounting to tight spaces. They are equipped with lever handles that are pushed to the upright position for holding workpieces firmly in place when the clamps are engaged. These toggle clamps feature a fixed design for securing & loosening materials without moving the clamps, and are ideal for the automotive, aerospace, and food & packaging industries. They feature an air actuated cylinder with input port for connecting to the compressed air source and then utilise the compressed air for applying clamping pressure to hold the workpiece in place. These vertical hold down toggle clamps come integrated with hardened bushings & pins at all pivot points for longer service life. These units allow economical use on short run jobs with short term fixturing, are completely self contained & need only a single pressure source for added safety. They feature an enclosed design for MIG & spot welding in dirty working environments, and come with a non pivoting cylinder that can easily be hard piped into fixtures. Destaco vertical hold down toggle clamps are virtually maintenance free and they only require a few drops of lubricating oil to keep them in excellent condition. These clamps enable the user to undertake an action without being worried by the frequent movement of a workpiece. The unique pivot and lever system are to ensure maximum function and excellent performance. They have high exerting force and flexible adjustability that are useful when working with materials of varying thicknesses. These units are made of steel / stainless steel for resisting corrosion on exposed surfaces and come integrated with an ergonomic vertical handle for a strong & comfortable grip. These Destaco 210 Series vertical hold down toggle clamps are capable of withstanding loads up to 450 lb and have a bar opening angle of 103 degrees.
We also offer 201 Series vertical clamps having clamp bar opening angle up to 100 degrees.

Destaco 3031, 3051 Series pull action latch clamps are well suited for securing & molding closures for lids, doors & covers and also for assembling applications in the automotive, aerospace and food & packaging industries. These pull action latch clamps provide a stationary alternative to removable C clamps or spring clamps while securing material to the work surface and holding them in place using a lever handle that is pushed to the upright position when the clamp is engaged & pressed down to reach the locked position, ensuring fatigue less and quick clamping operations. These pull action latch clamps have a patented thumb control lever for single handed operation. These Destaco 3031, 3051 Series pull action latch clamps feature a flanged base with threaded holes for quick and secure installation. These pull action latch clamps are made of steel for structural rigidity and resisting corrosion on exposed surfaces. These clamp units further provide innovative, controlled hook motion that allows quick, safe and single handed operation. Destaco 3031, 3051 Series pull action latch clamps are capable of withstanding loads up to 1500 lb and offer hook adjustment up to 14 mm. Destaco 3031, 3051 Series pull action latch clamps come with J hook style latches, integrated with threaded J hooks for easy adjustments.

These Destaco 202 Series vertical hold down toggle clamps or heavy duty hold-down clamps are ideal for mounting to tight spaces in the . They come with lever handles that are pushed to the upright position, to hold workpieces firmly in place when the clamps are engaged. They have a fixed design for securing and loosening materials without moving the clamps. These clamps have a flanged or straight base with threaded holes for easy installation. They are suitable for checking fixtures, light machining, assembling & testing, welding, drilling, milling and woodworking applications in the automotive, aerospace, and food & packaging industries. They are used for applying downward clamping force by increasing the applied load through toggle mechanisms and are integrated with precisely machined components having hardened & ground pivot pins and bushings for prolonged service life. These weldable vertical toggle clamps deliver flexibility to position the handle as they incorporate an ergonomic, T handle or vertical handle options with fatigue less handle grip. These vertical hold-down clamps are made of stainless steel construction for resisting corrosion on exposed surfaces and are capable of withstanding loads up to 250 lb. These clamps offer a stationary alternative to removable C clamps or spring clamps while securing material to a work surface, and have a flanged or straight base with threaded holes for quick & secure surface or blade mounting, respectively. They further come equipped with a long handle with great hand clearance that can exhibit a minimum of 90 degrees opening angle for additional safety. These clamp's bolt patterns are interchangeable with the 2002 Series toggle clamps. Further, they accommodate M6 or 1/4 inch spindle assemblies to provide maximum clamping force. These Destaco 202 Series vertical toggle clamps are available in U bar or solid bar clamp arm variants on Raptor Supplies for adjustable spindle location and customised attachments or fixed clamping, respectively.

Destaco vertical hold down clamps (2002 Series) or vertical toggle clamps hold workpieces firmly in a stationary position using a lever handle that engages & releases the clamping head while pushing it to the upright position. They have a fixed design for securing and loosening materials without moving the clamps and have a flanged or straight base with threaded holes for easy installation. They are ideal for applications in the automotive, aerospace, consumer goods and food & packaging industries for checking fixtures, light machining, assembling, testing, welding, drilling, milling and woodworking. They are used for applying downward clamping force by increasing the applied load through toggle mechanisms and are integrated with precisely machined components having hardened & ground pivot pins and bushings for prolonged service life. These weldable vertical toggle clamps provide the flexibility to position the handle, base & clamp arm and weld them in the desired position for different clamping applications. These 2002 Series Destaco clamps feature stainless steel construction with black oxide, non reflective finish (selected models) for resisting corrosion on exposed surfaces, and are capable of withstanding loads up to 600 lb. These clamps offer a stationary alternative to removable C clamps or spring clamps while securing material to a work surface and come equipped with a long handle providing excellent hand clearance that can be repositioned to limit the opening angles up to 90 degrees for additional safety. These clamp's bolt patterns are interchangeable with 202 Series toggle clamps. They are used with bolt retainers, spindle assemblies and flanged washers. Selected models come with the Toggle Lock Plus safety feature to prevent unintentional opening of the clamps. Destaco 2002 Series vertical toggle clamps are available in U bar or solid bar clamp arm variants on Raptor Supplies, for easy attachment of arm extensions.

These Destaco 201 Series vertical hold down toggle locking clamps, also known as vertical manual hold down clamps, are designed to offer a stationary alternative to removable C clamps or spring clamps when securing materials to a work surface. These manual clamps hold workpieces in place using a lever handle that is pushed to the upright position when the clamps are engaged. Further, they apply downward clamping force by increasing the applied load via toggle mechanisms and are ideal for fixture checking, assembling / testing, woodworking and light machining in the aerospace, automotive and food & packaging industries. These hold down clamps feature a low profile design for tight spaces and offer the flexibility to position the base, clamp arm & handle by welding them in the desired position. They comprise accurately machined components having hardened & ground pivot pins & bushings. These clamps are supplied with a neoprene spindle for maximum holding force and ergonomic handle grip. Destaco vertical manual hold down clamps feature a straight or flanged base with threaded holes for ease of installation. These weldable vertical toggle clamps provide the flexibility to position the handle as required and feature a fatigue less handle grip. These vertical hold down clamps are made of steel / stainless steel for resisting corrosion on exposed surfaces and are capable of withstanding loads up to 125 lb. Additionally, they have a flanged or straight base with threaded holes for quick & secure surface or blade mounting, respectively. These clamps offer great hand clearance and can exhibit a maximum clamp bar opening angle of 100 degrees.

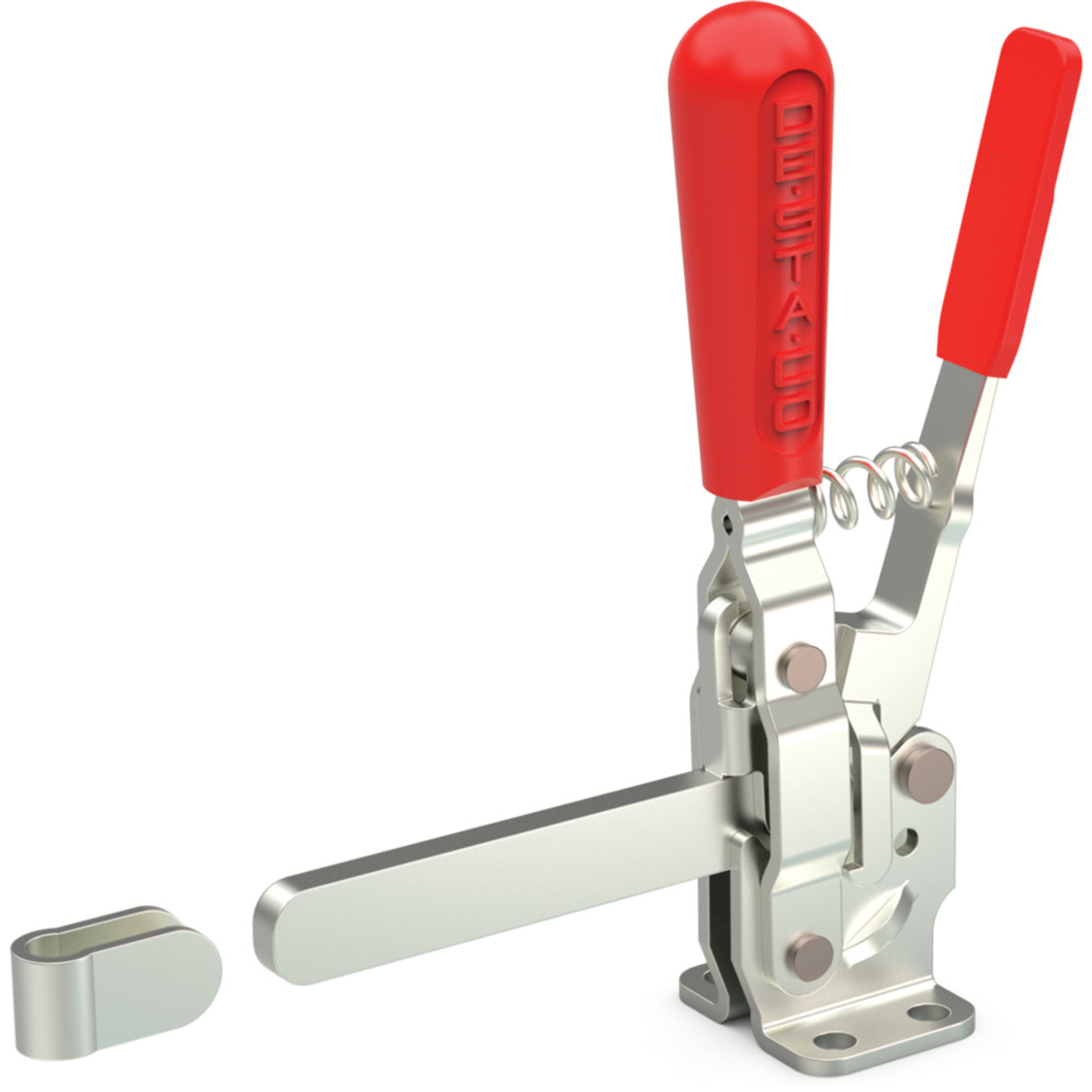

Destaco 207 Series vertical hold down clamps are designed to offer a stationary alternative to removable C clamps or spring clamps when securing materials to a work surface. These clamps mount to work surfaces and hold workpieces in place using a lever handle that is pushed to the upright position when the clamp is engaged. The lever handle engages & releases the clamping head, which holds a workpiece onto a worktable. These clamps orient the handle vertically for a 90-degree opening angle. They include various BLK model clamps with black and non-reflective finish, and different low profile T handle clamps (models including - "T") used for various arm and mounting applications. Destaco 207 Series vertical hold down toggle clamps comprise accurately machined components having hardened and ground pivot pins and bushings. These clamps enable the user to undertake an action without being worried by the frequent movement of a piece of wood. The unique pivot and unique lever system ensures maximum function and excellent performance. They have high exerting force and flexible adjustability that are useful when working with various material thicknesses. They feature a fixed design to secure & loosen workpieces without moving the clamp itself. Destaco toggle clamps are equipped with a high strength, forged alloy steel clamping arm for increased strength and handling a maximum load of 375 lb. Selected models come integrated with the Toggle Lock Plus safety feature to ensure that the over-centre locking condition is maintained and the clamp remains protected against unintentional opening.

Destaco 317 Series vertical hold-down clamps have ergonomic handles and a U-shaped hold down bar with a large bar opening angle. These vertical clamps have a dual mounting surface and are supplied with M8 or 5/16-inch spindle accessories.

These Destaco 247 & 267 Series vertical hold down clamps are designed to apply downward clamping force by increasing the applied load via toggle mechanisms. These clamps offer a stationary alternative to removable C clamps or spring clamps when securing material to a work surface. They comprise precisely machined components having hardened & ground pivot pins & bushings and feature steel construction to resist corrosion.These units have a holding capacity of 1200 lb and feature large bar guides for excellent lateral stability. They hold workpieces in place using a lever handle that is pushed to the upright position when the clamp is engaged. Destaco 247 & 267 Series vertical hold down clamps are used in welding, grinding, machining and metal fabrication applications in the aerospace, automotive and food & packaging industries. These clamps have a flanged or straight base with threaded holes for ease-of-installation and come with an ergonomic handle grip to ensure minimum operator fatigue. Selected models are supplied with neoprene spindles to exhibit chemical stability and for maintaining flexibility over a wide temperature range. These Destaco 247 & 267 Series are available in U bar & solid bar clamping arm variants on Raptor Supplies for adjustable spindle location and to offer customised attachments & fixed clamping, respectively.
